Shift Lock Actuator: RX7

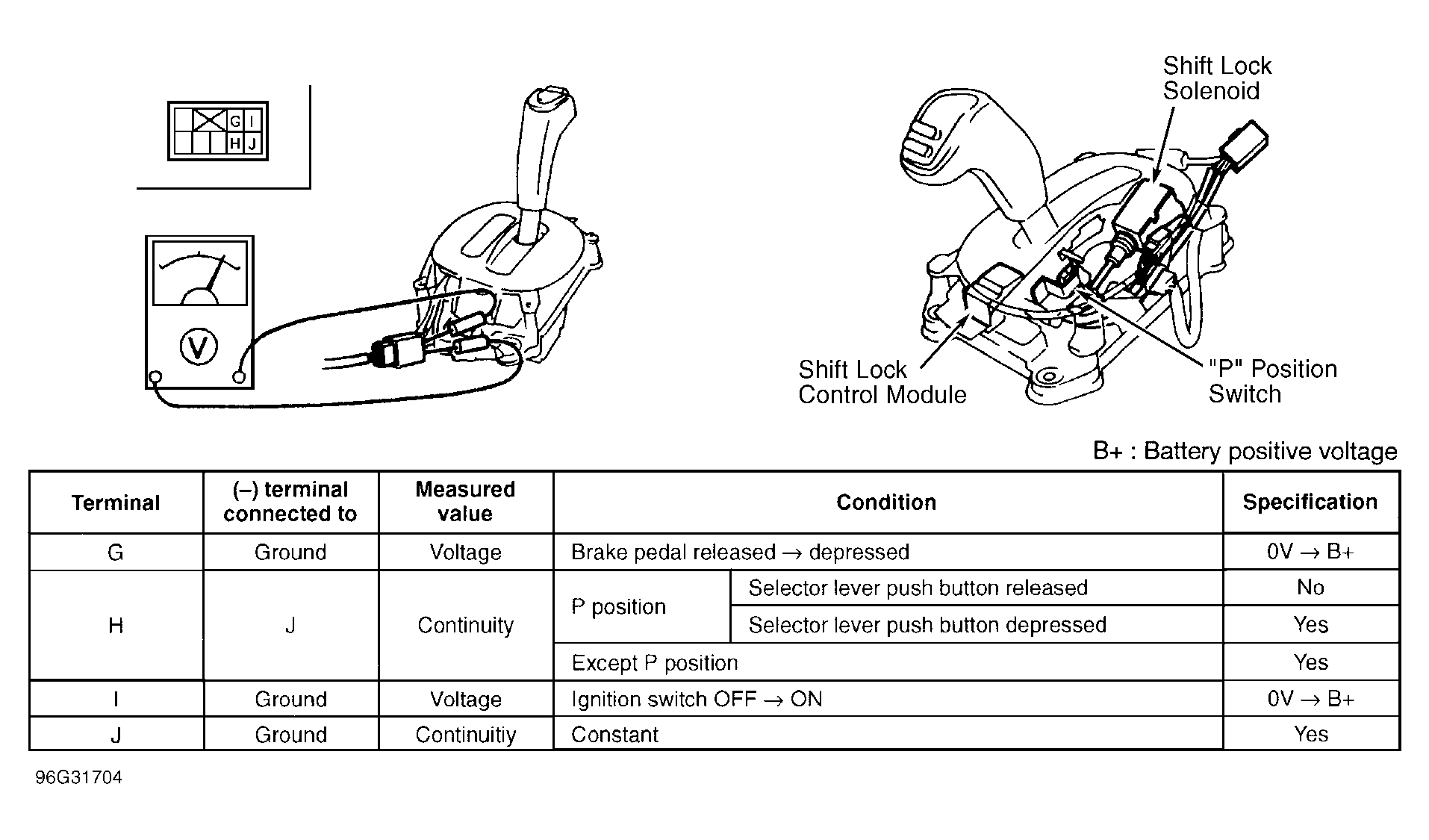

- Remove console panel. Shift selector lever to Park. Turn
ignition on. Check voltage at selected connector terminals. See Fig 1. If voltage is not
as specified, inspect harness and connector. Repair as needed. If
harness and connector is okay, go to next step.
- Turn ignition off. Check continuity at selected connector
terminals. If continuity is not as specified, inspect harness and
connector. Repair as needed. If harness and connector is okay, replace
park position switch, shift lock solenoid and/or shift lock control
module.
Courtesy of MAZDA MOTORS CORP.
