Code P0443: Catalyst Monitoring System Out Of Range

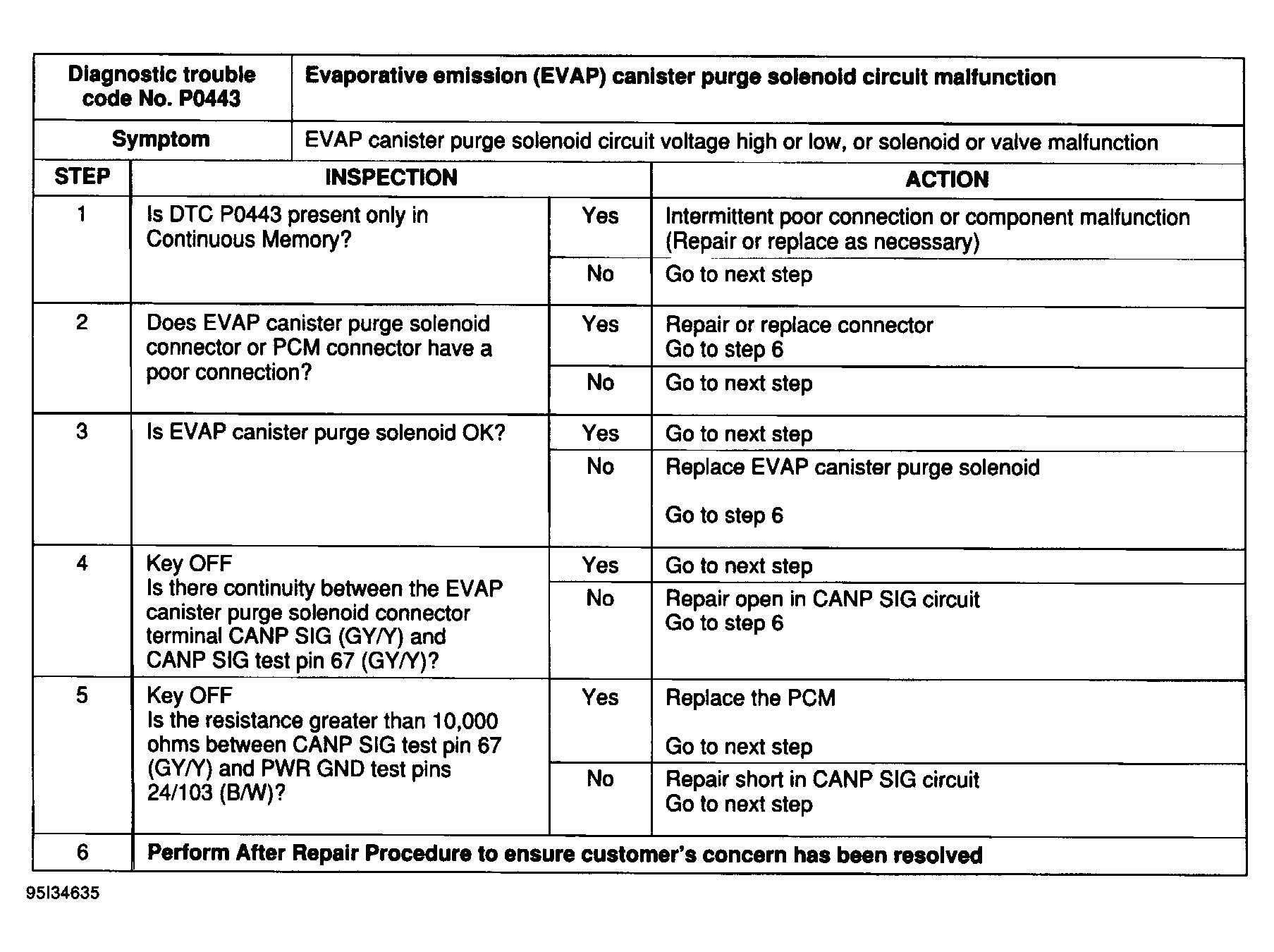

Fig 1: Trouble Code No. P0443 Evaporative Emission Canister Purge Solenoid Circuit Malfunction

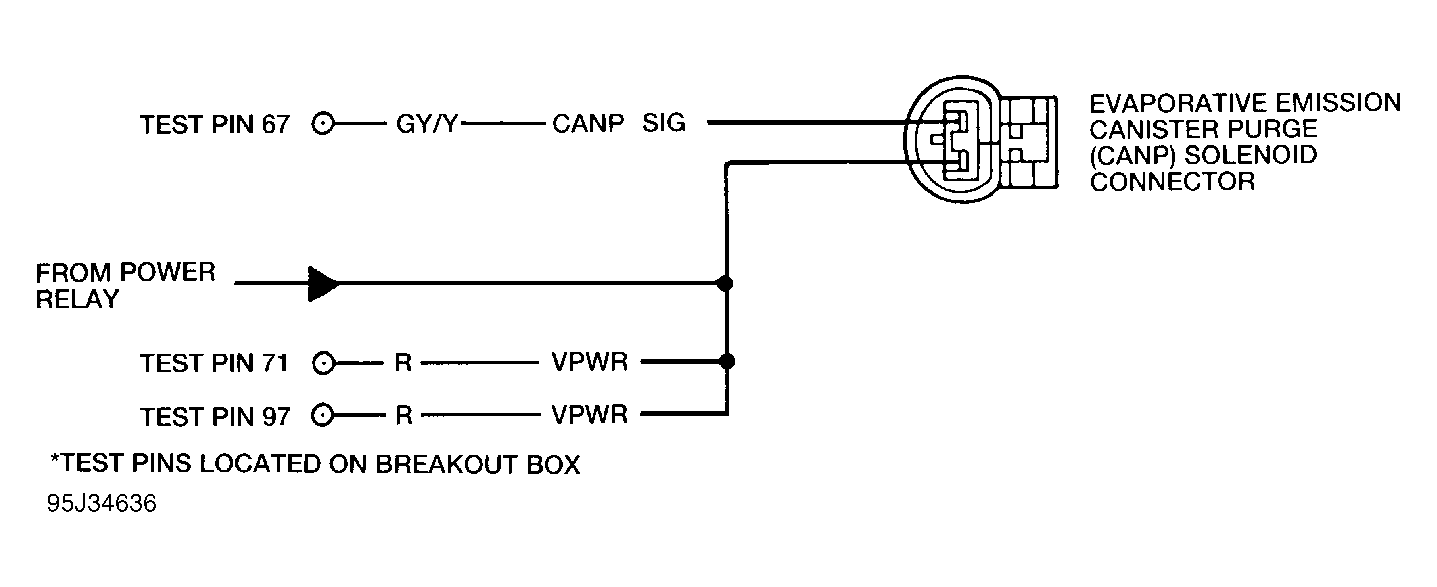

Fig 2: Trouble Code No. P0443 Evaporative Emission Canister Purge (CANP) Solenoid Circuit Diagram

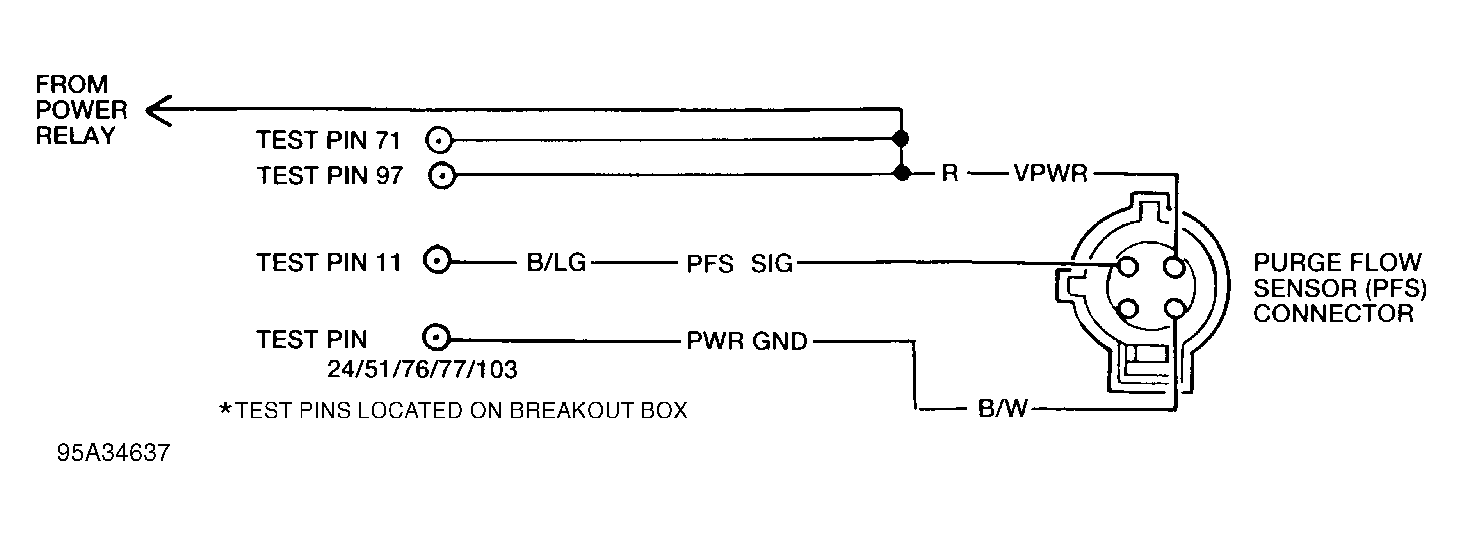

Fig 3: Trouble Code No. P0443 Purge Flow Sensor (PFS) Circuit Diagram
