Code P0500: Vehicle Speed Sensor Circuit Malfunction

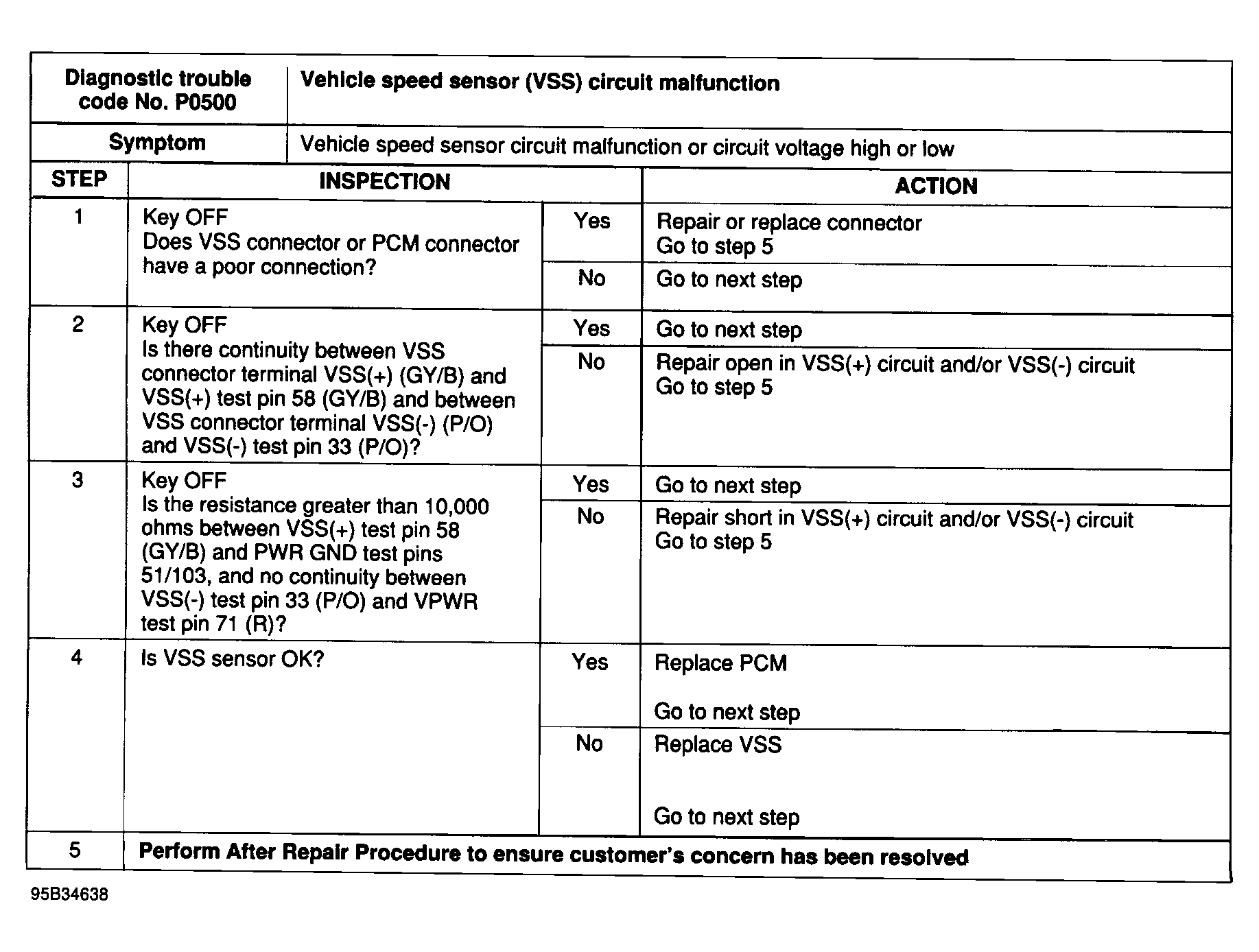

Fig 1: Trouble Code No. P0500 Vehicle Speed Sensor Circuit Malfunction
G95B34638

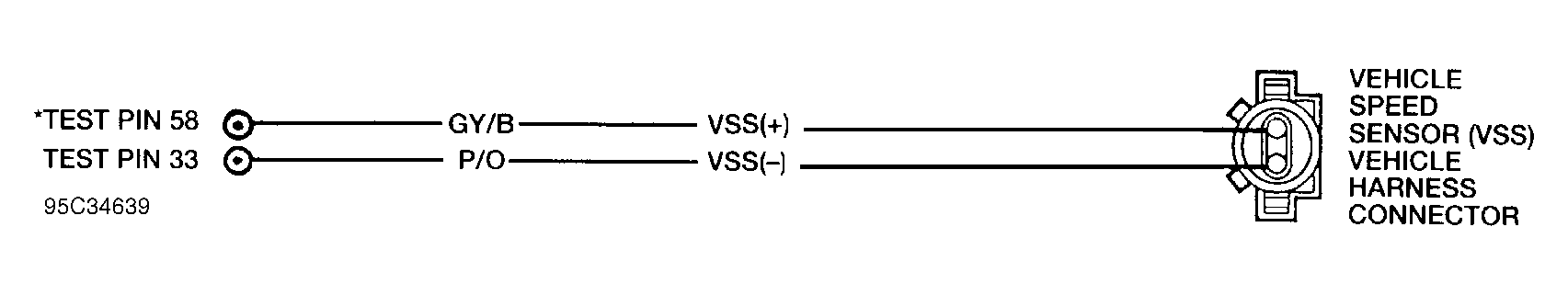

Fig 2: Trouble Code No. P0500 Vehicle Speed Sensor (VSS) Circuit Diagram
G95C34639
