Code P1443: Purge Flow System Circuit Malfunction

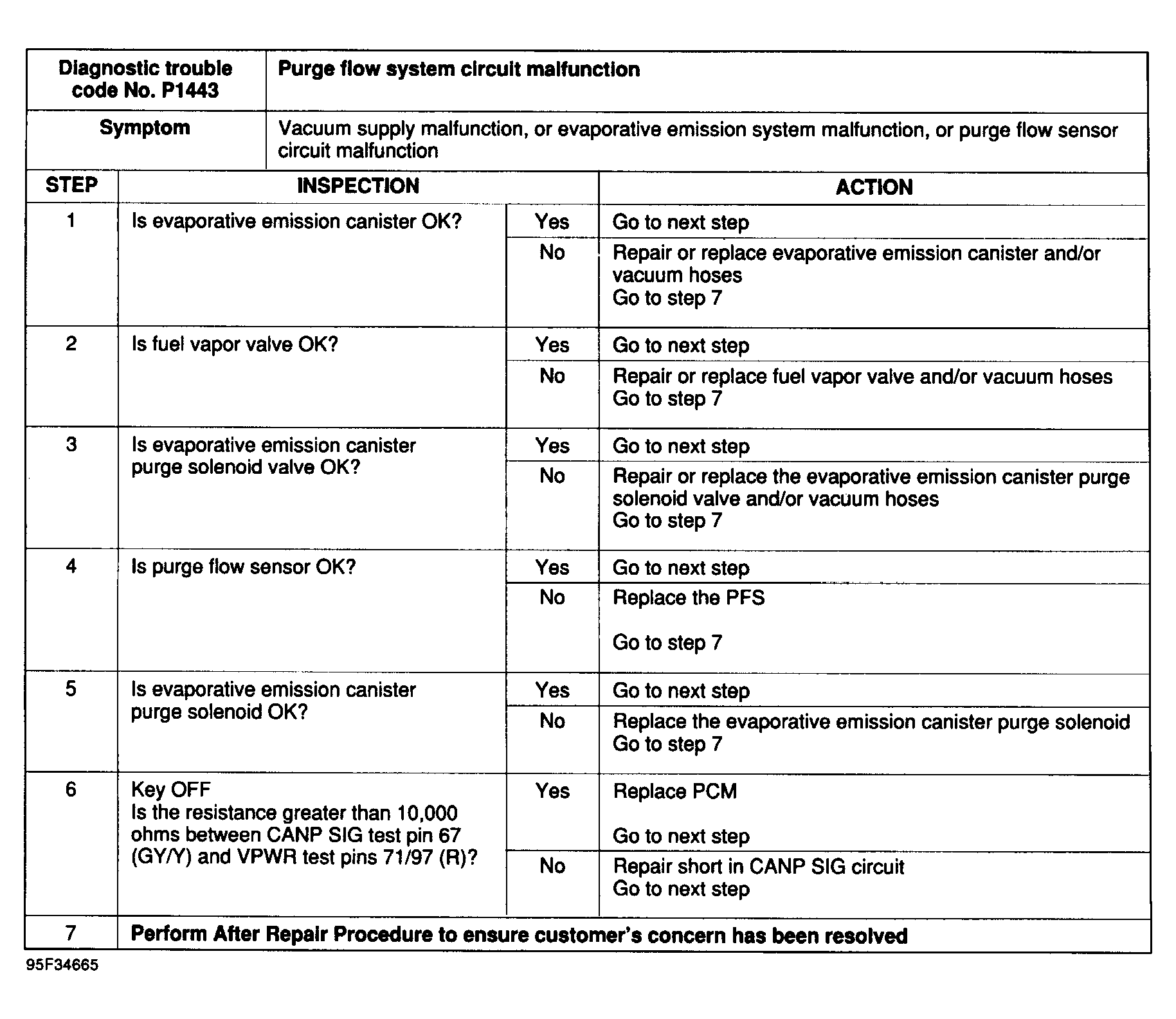

Fig 1: Trouble Code No. P1443 Purge Flow System Circuit Malfunction
G95F34665
Fig 2: Trouble Code No. P1443 Evaporative Emission Canister Purge (CANP) Solenoid Circuit Diagram
G95J34636
