Code P1505: Idle Air Control System Circuit Malfunction

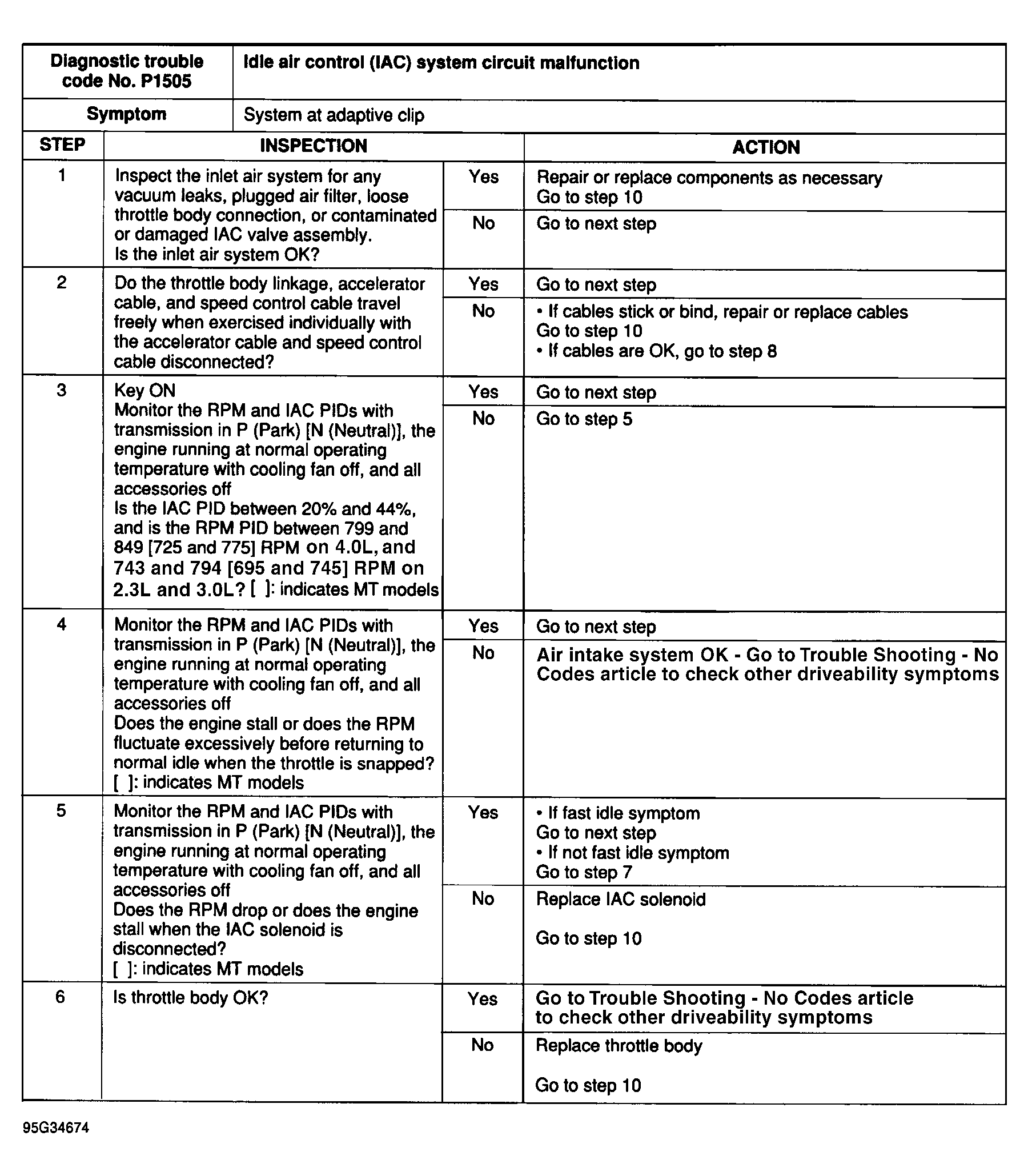

Fig 1: Trouble Code No. P1505 Idle Air Control System Circuit Malfunction (1 Of 2)
G95G34674

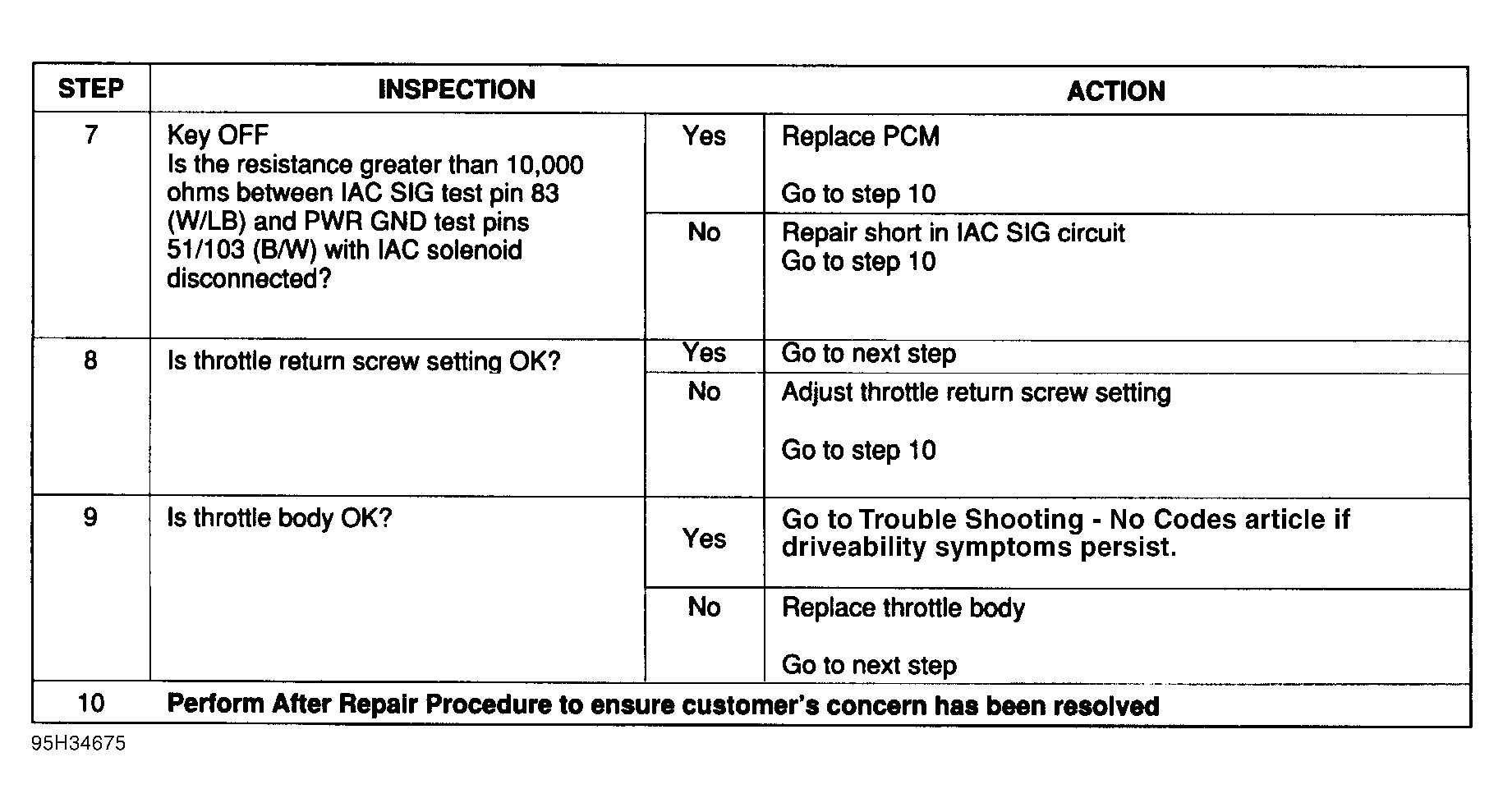

Fig 2: Trouble Code No. P1505 Idle Air Control System Circuit Malfunction (2 OF 2)
G95H34675
Fig 3: Trouble Code No. P1505 Idle Air Control (IAC) Solenoid Circuit Diagram
G95G34641
