Code P1783: Transmission Fluid Temperature Sensor Circuit Error

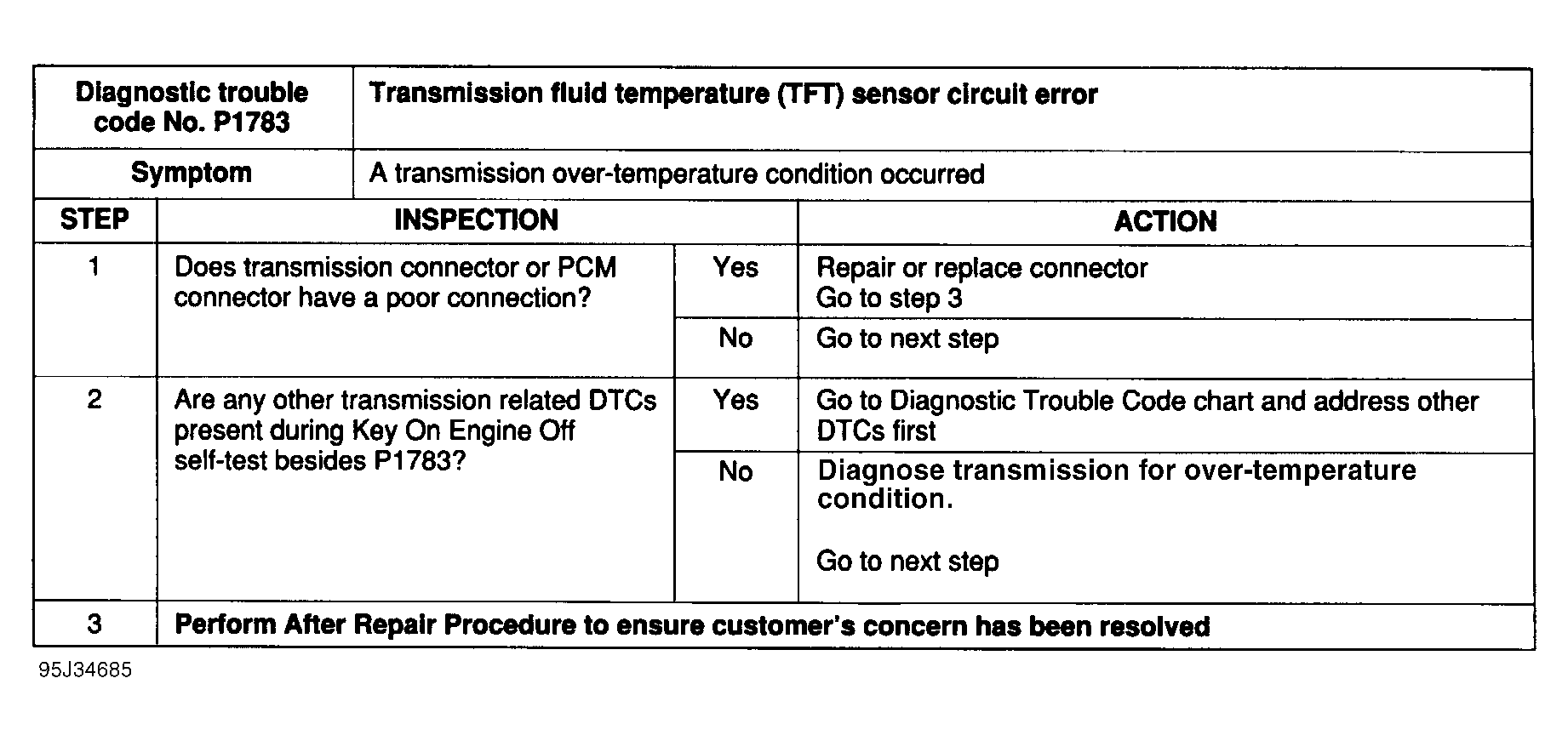

Fig 1: Trouble Code No. P1783 Transmission Fluid Temperature Sensor Circuit Error
G95J34685

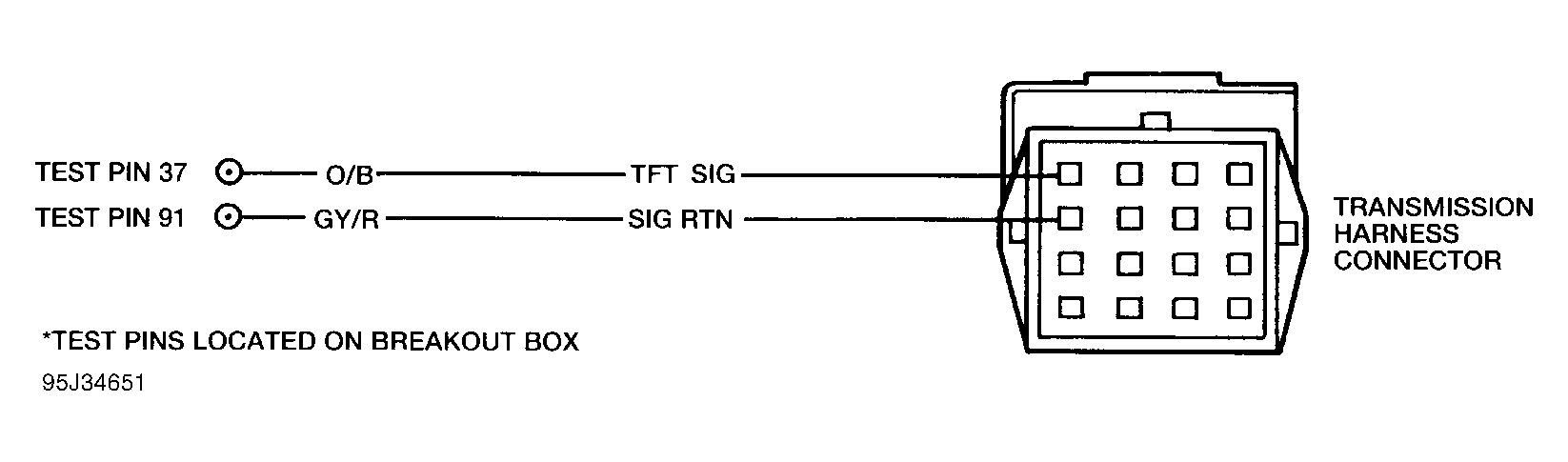

Fig 2: Trouble Code No. P1783 Transmission Fluid Temperature (TFT) Sensor Circuit Diagram
G95J34651
