Codes P0603, P0605 & P1605: Powertrain Control Module Error

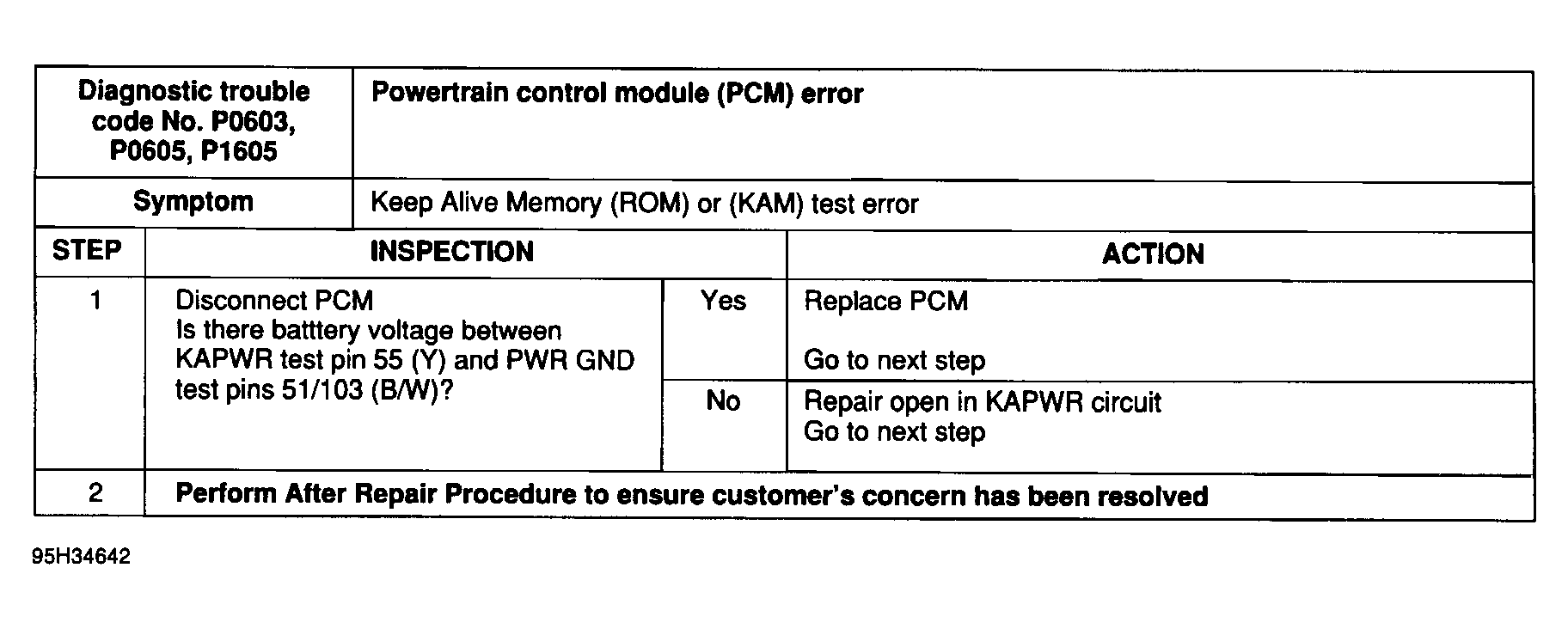

Fig 1: Trouble Codes No. P0603, P0605 & P1605 Powertrain Control Module Error

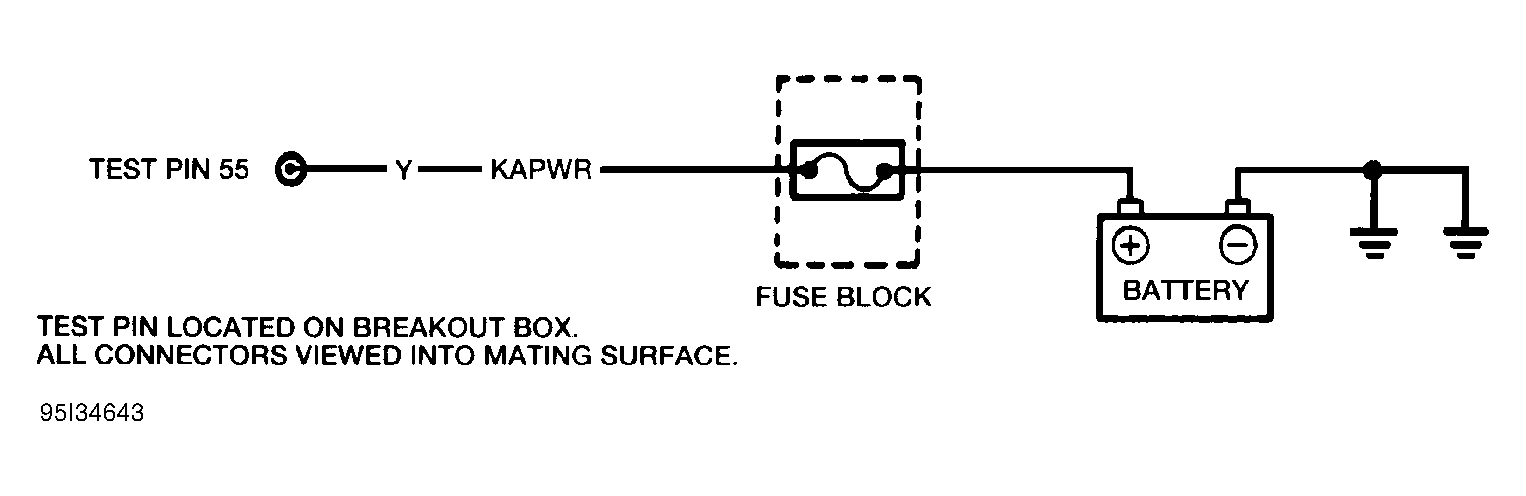

Fig 2: Trouble Codes No. P0603, P0605 & P1605 Powertrain Control Module Circuit Diagram
