Service Point Locations

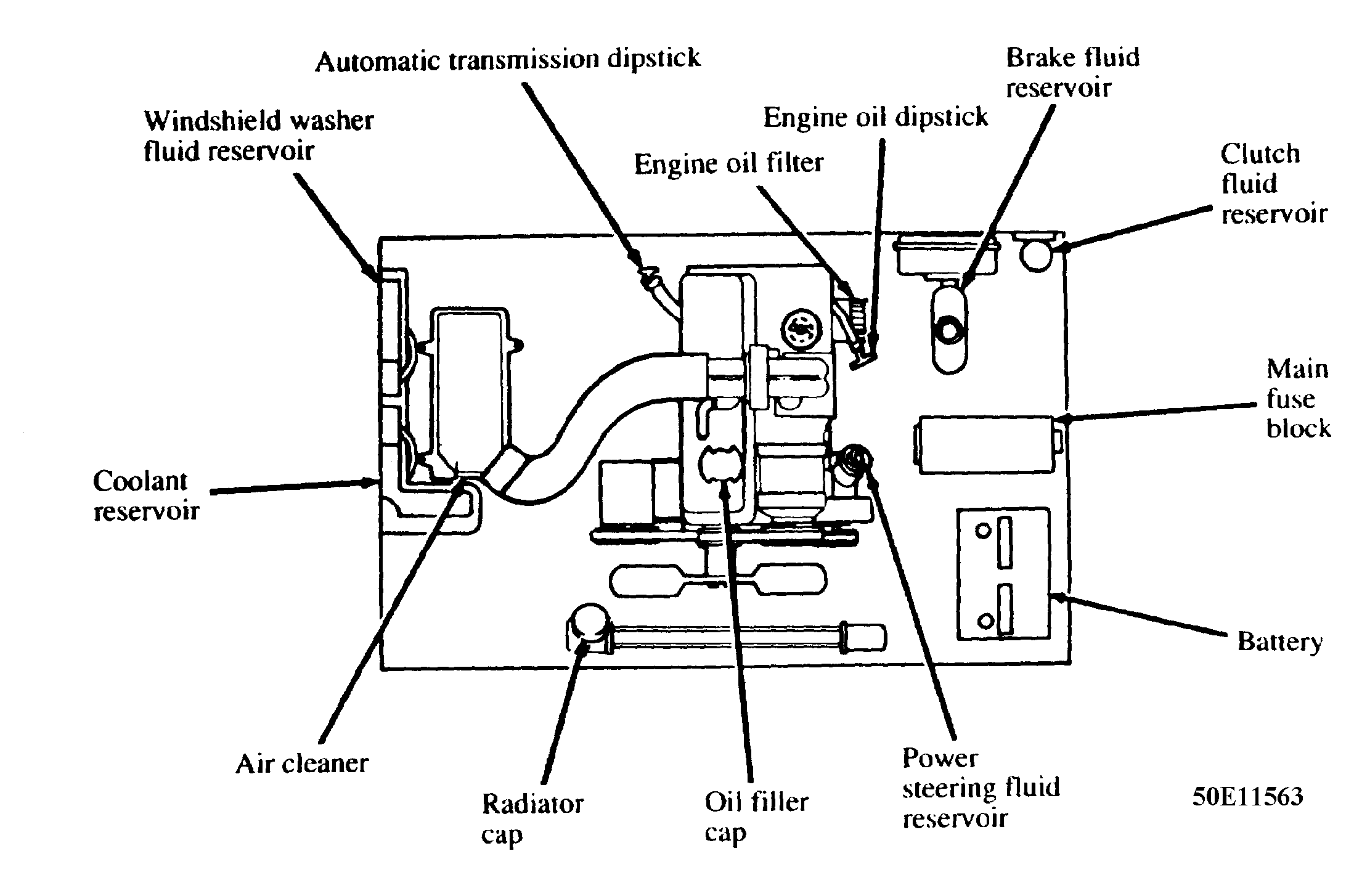

Fig 1: Service Point Locations (B2300 Models - 2.3L Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

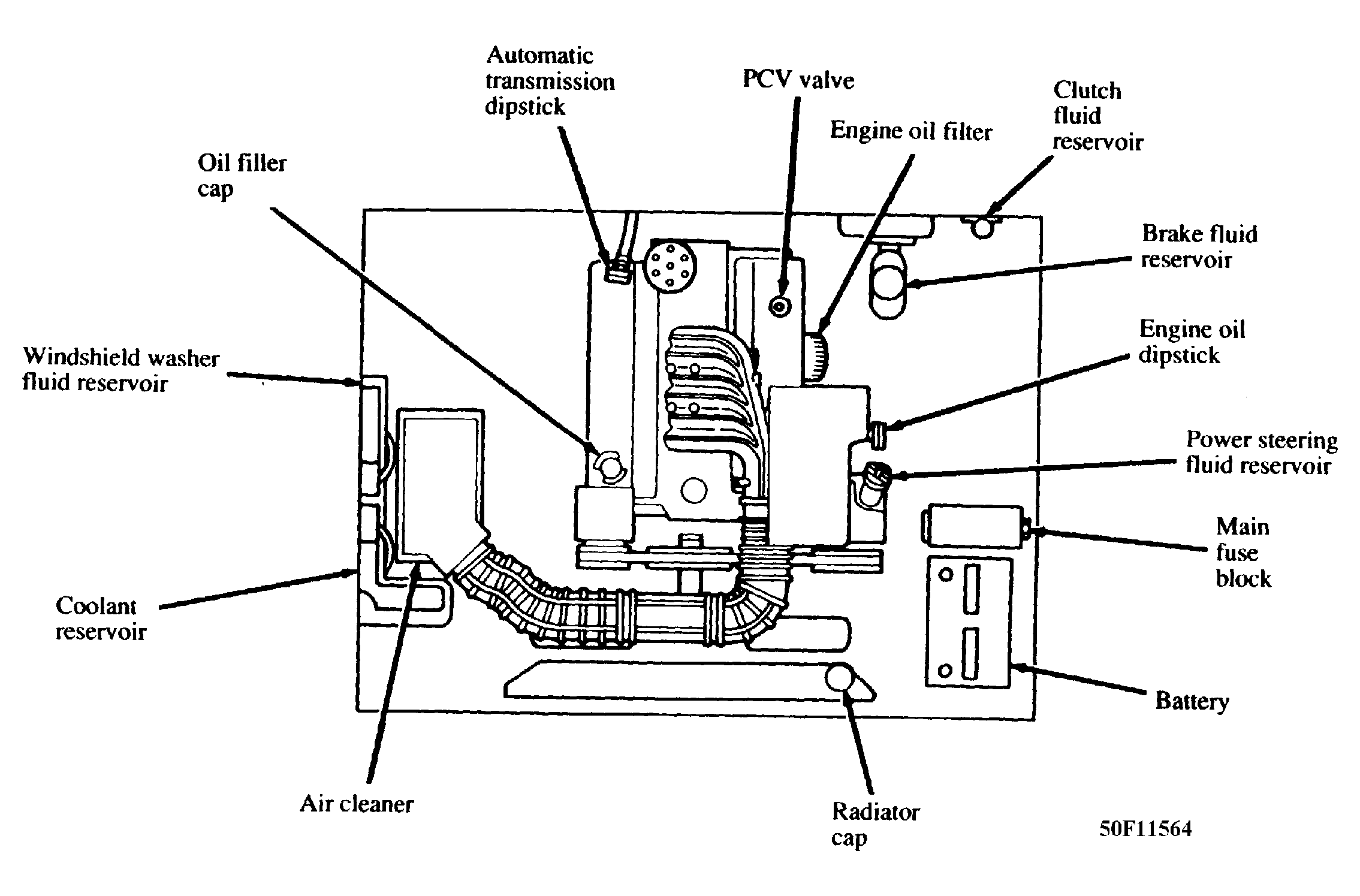

Fig 2: Service Point Locations (B3000 Models - 3.0L Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.

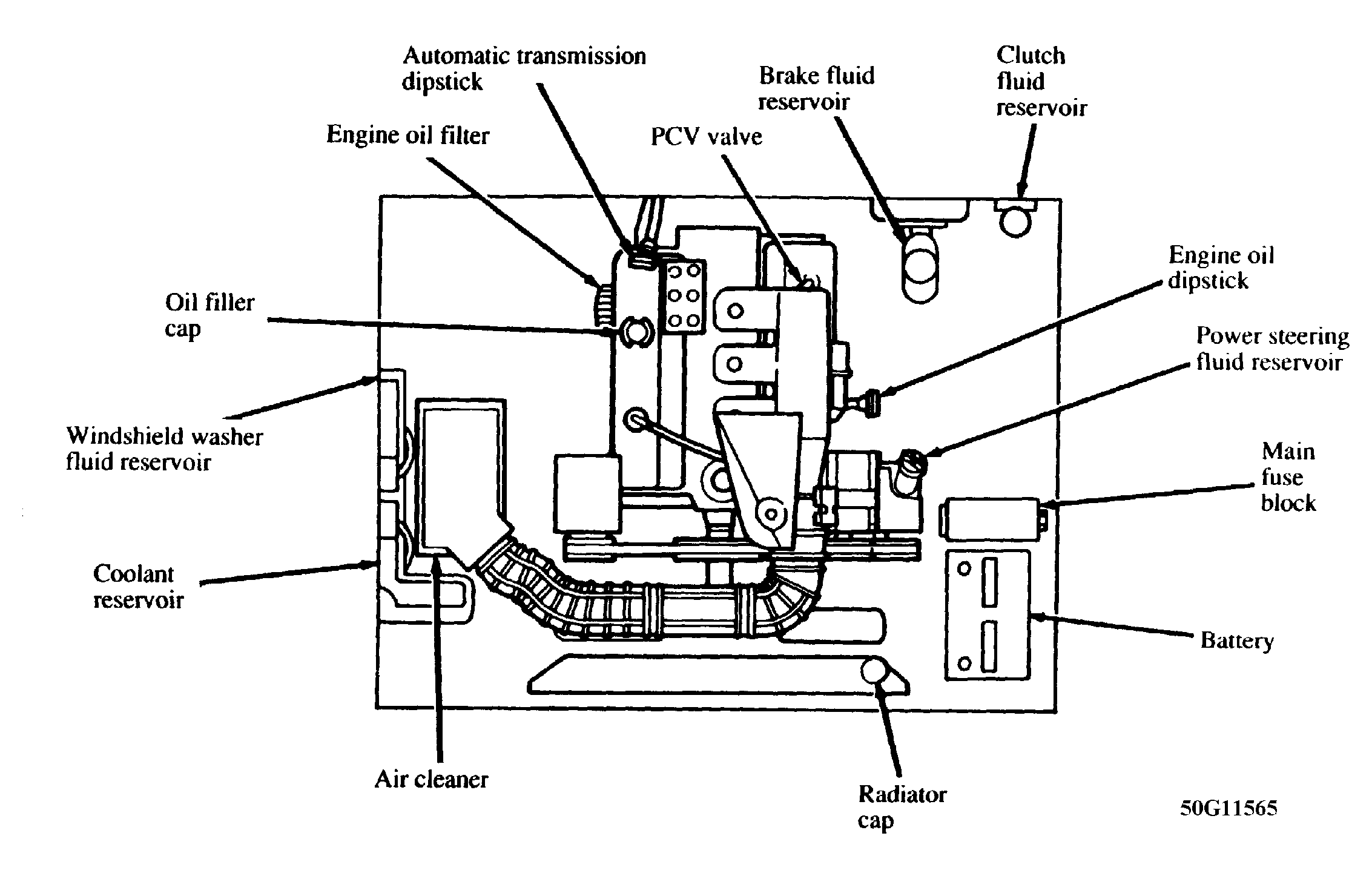

Fig 3: Service Point Locations (B4000 Models - 4.0L Engine)

Courtesy of MAZDA MOTOR OF AMERICA, INC.
