Driver-Side Air Bag Module: Installation

Connect air bag module wiring to clockspring. Position air bag module onto steering wheel. Install air bag module screws and washers and tighten to specification. See TORQUE SPECIFICATIONS  table. Activate air bag system. Observe AIR BAG warning light to verify system is functioning properly. See SYSTEM OPERATION CHECK  .

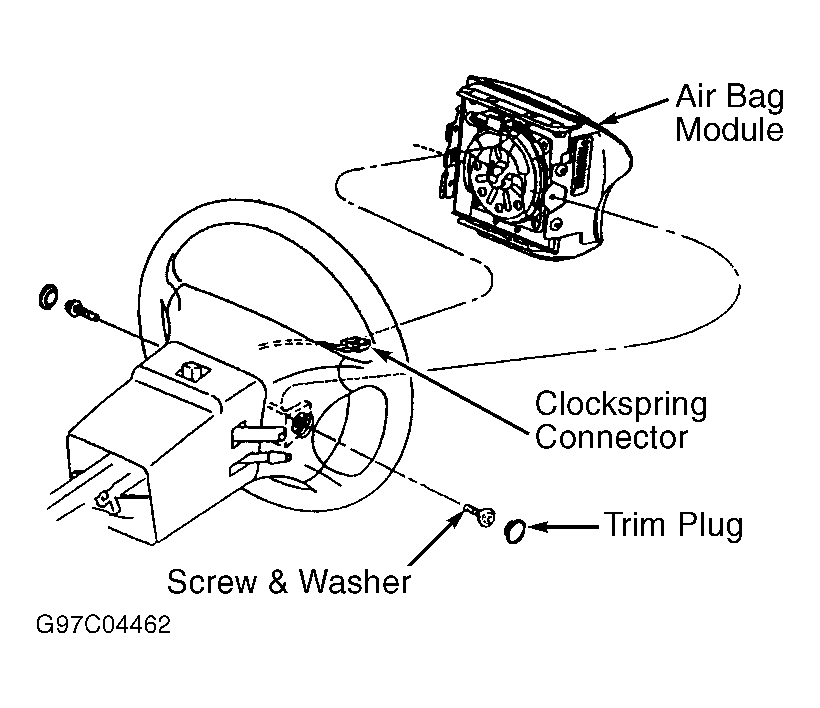

Fig 1: Removing Driver-Side Air Bag Module
G97C04462Courtesy of FORD MOTOR CO.
