Clutch Pedal Position (CPP) Switch

Disconnect clutch switch electrical connector. Using ohmmeter, check continuity between switch terminals. See Fig 1 . With clutch pedal depressed, continuity between terminals should exist. With clutch pedal released, continuity should not exist. Replace switch as necessary.

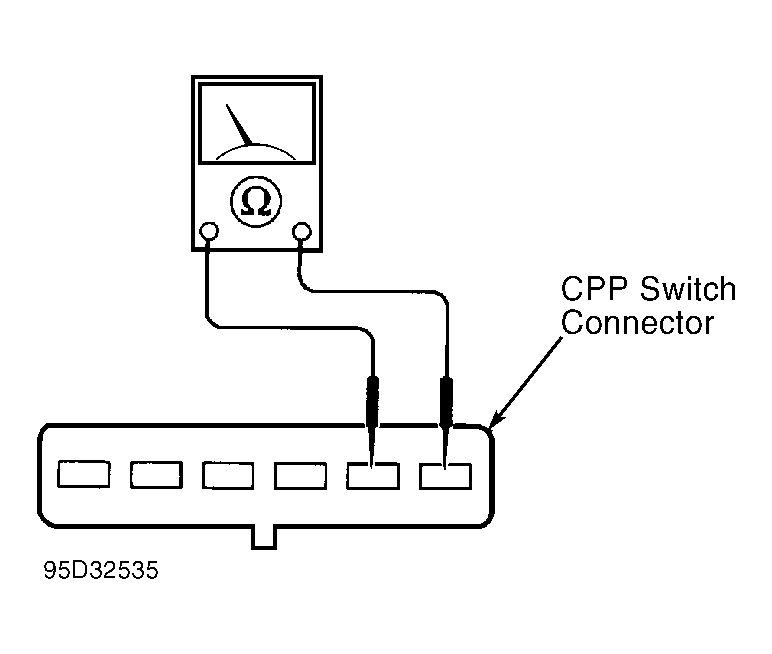

Fig 1: Test Clutch Pedal Position Switch

Courtesy of MAZDA MOTORS CORP.
