Electronic Ignition System

All models use a distributorless high data rate electronic ignition system. Diagnosis of this ignition system requires some or all of the following equipment:
- High impedance DVOM.
- EDIS Diagnostic Harness (49 UN01 057).
- EEC 60-pin breakout box (49 UN01 058).
- 104-pin breakout box (49 UN01 130).
- New Generation Star Scan Tester (or OBD-II equivalent).
Perform self diagnostic testing. See appropriate articles;
BASIC TESTING

TESTS W/CODES

Record all Diagnostic Trouble Codes (DTCs) and repair first code displayed first. Proceed to ELECTRONIC IGNITION DIAGNOSTIC CHARTS. See Fig 1 -Fig 11 .
If no self-diagnostic DTCs exist, proceed to NO START (NO SPARK) DIAGNOSTIC CHART for test procedures.

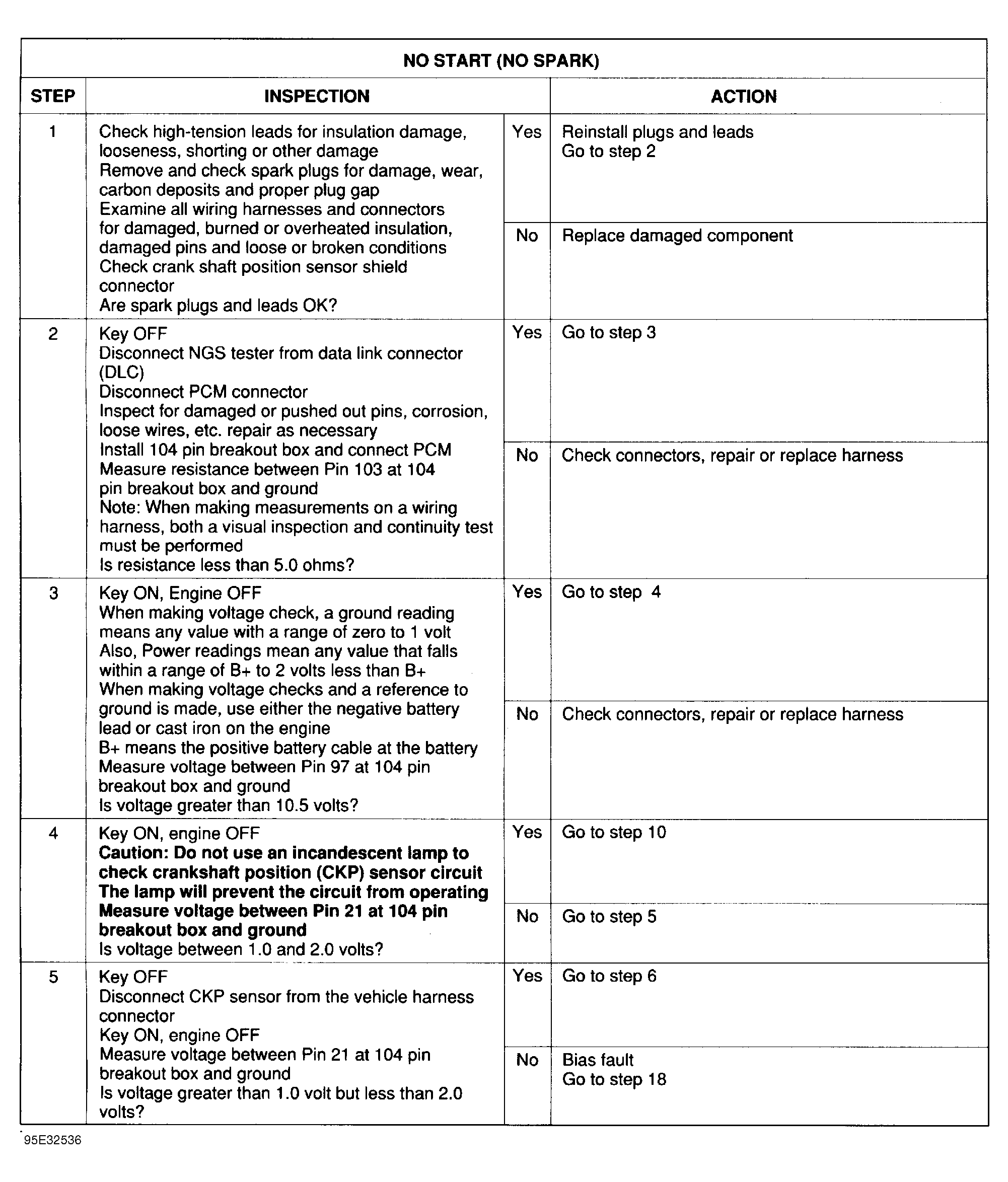

Fig 1: Electronic Ignition Diagnostic Chart - No Start, No Spark (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

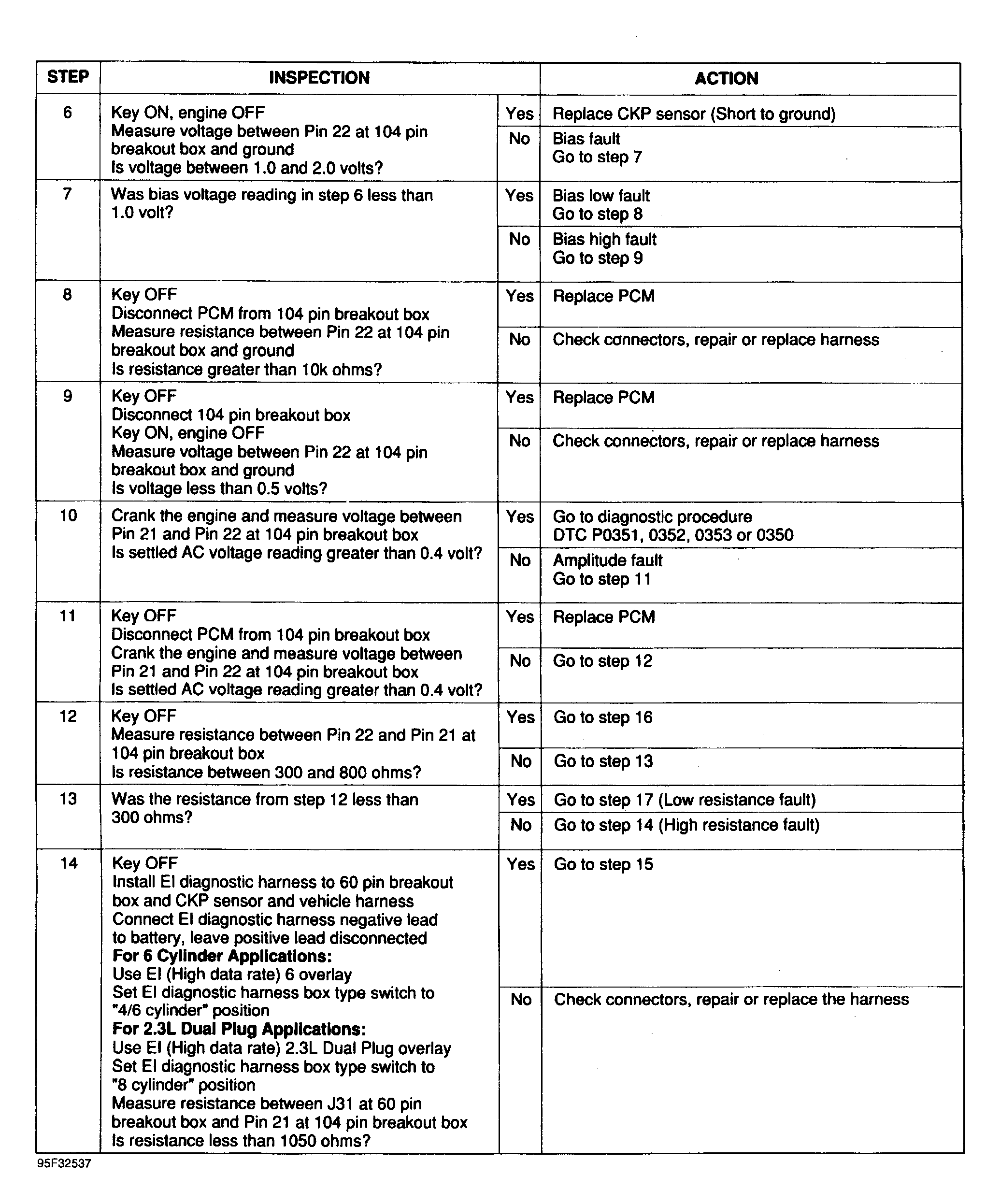

Fig 2: Electronic Ignition Diagnostic Chart - No Start, No Spark (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Electronic Ignition Diagnostic Chart - No Start, No Spark (3 Of 3)

Courtesy of MAZDA MOTORS CORP.

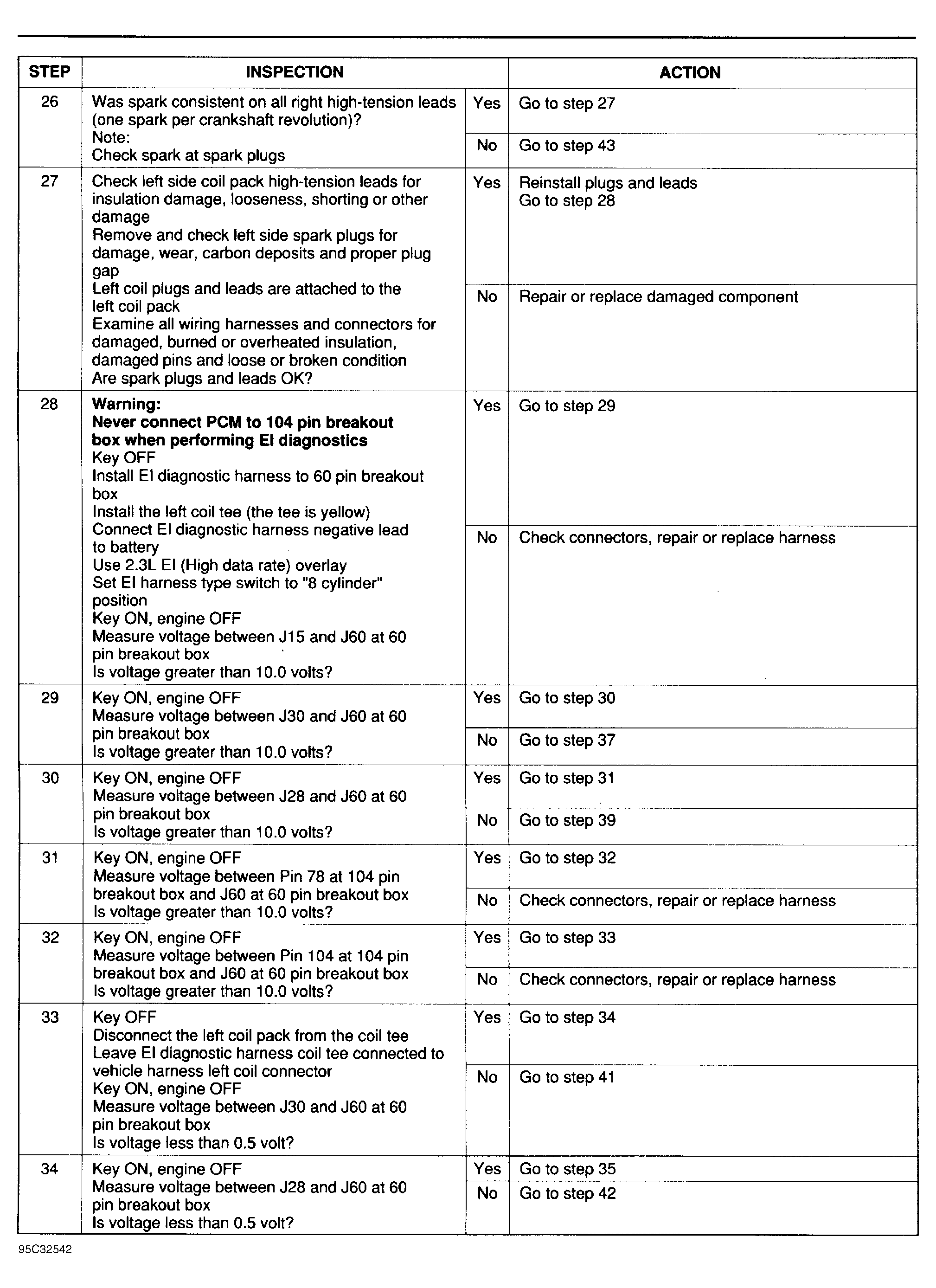

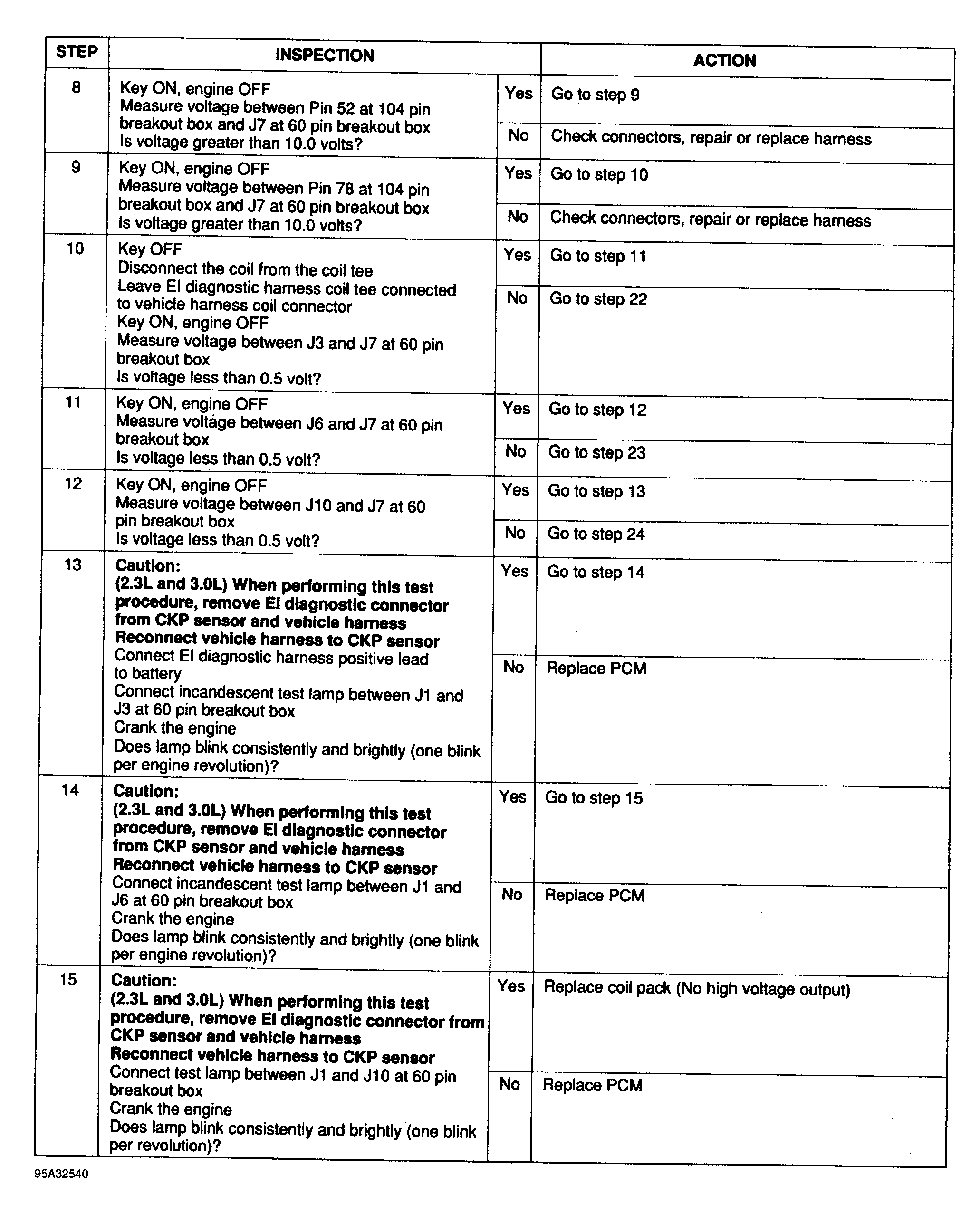

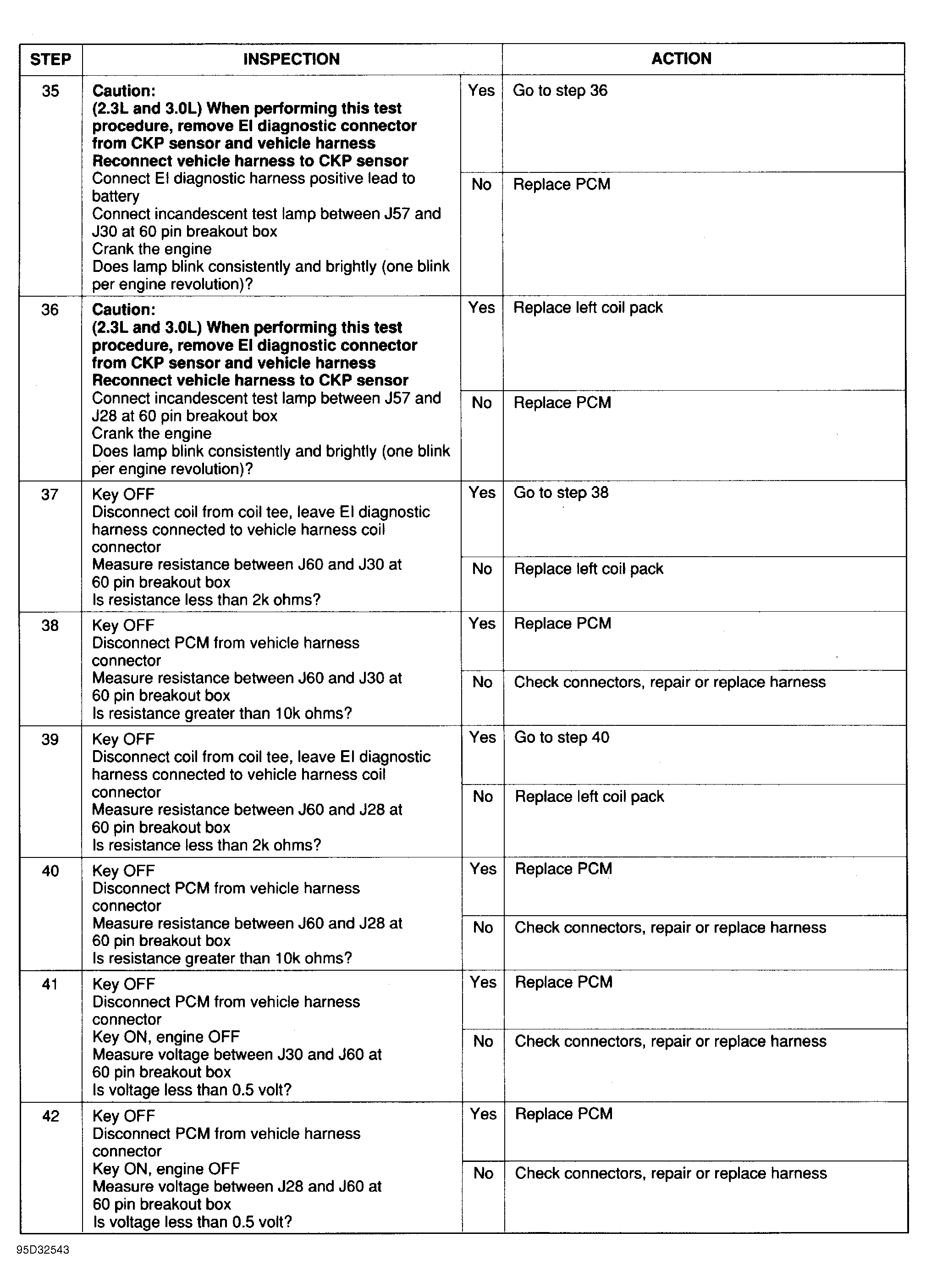

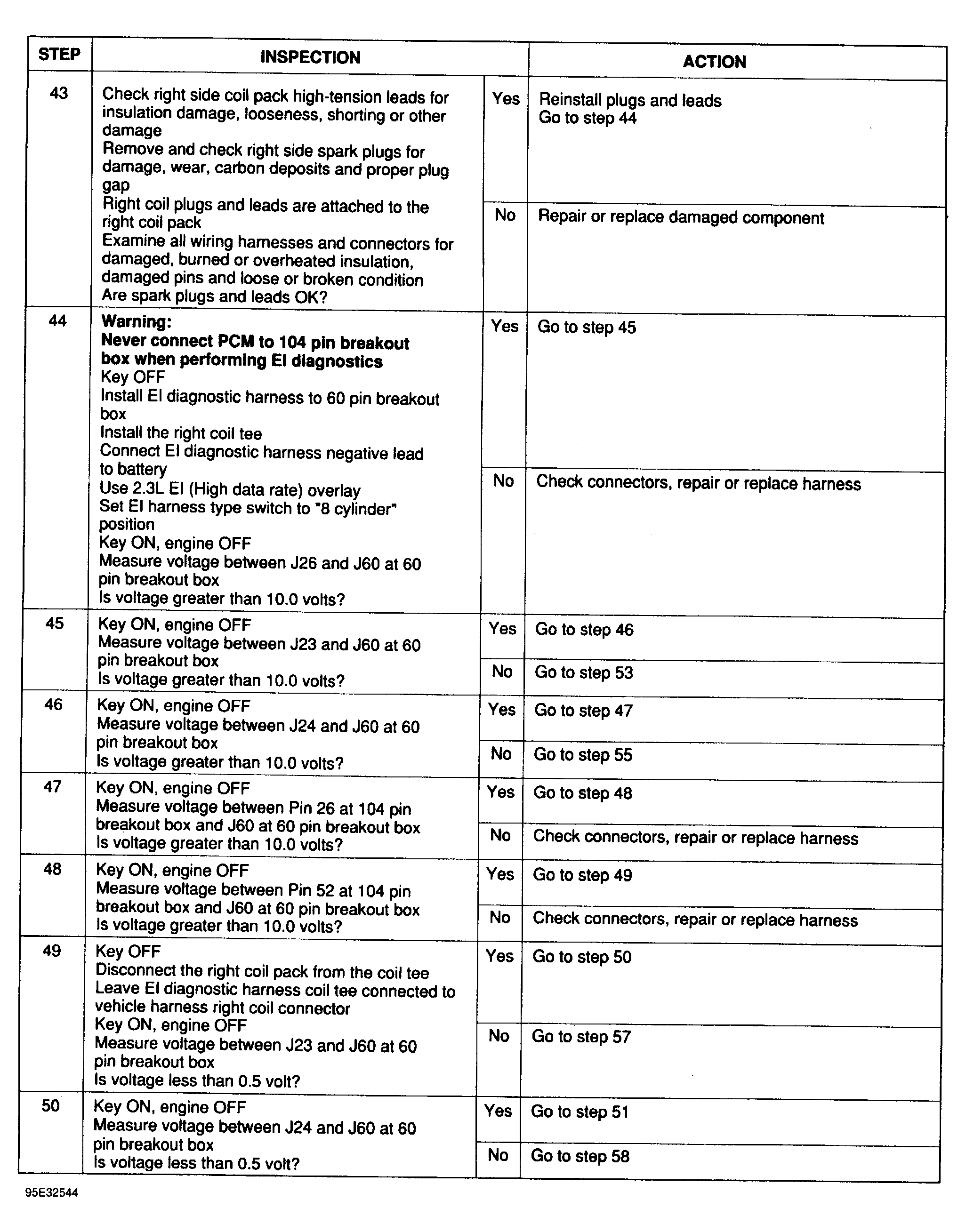

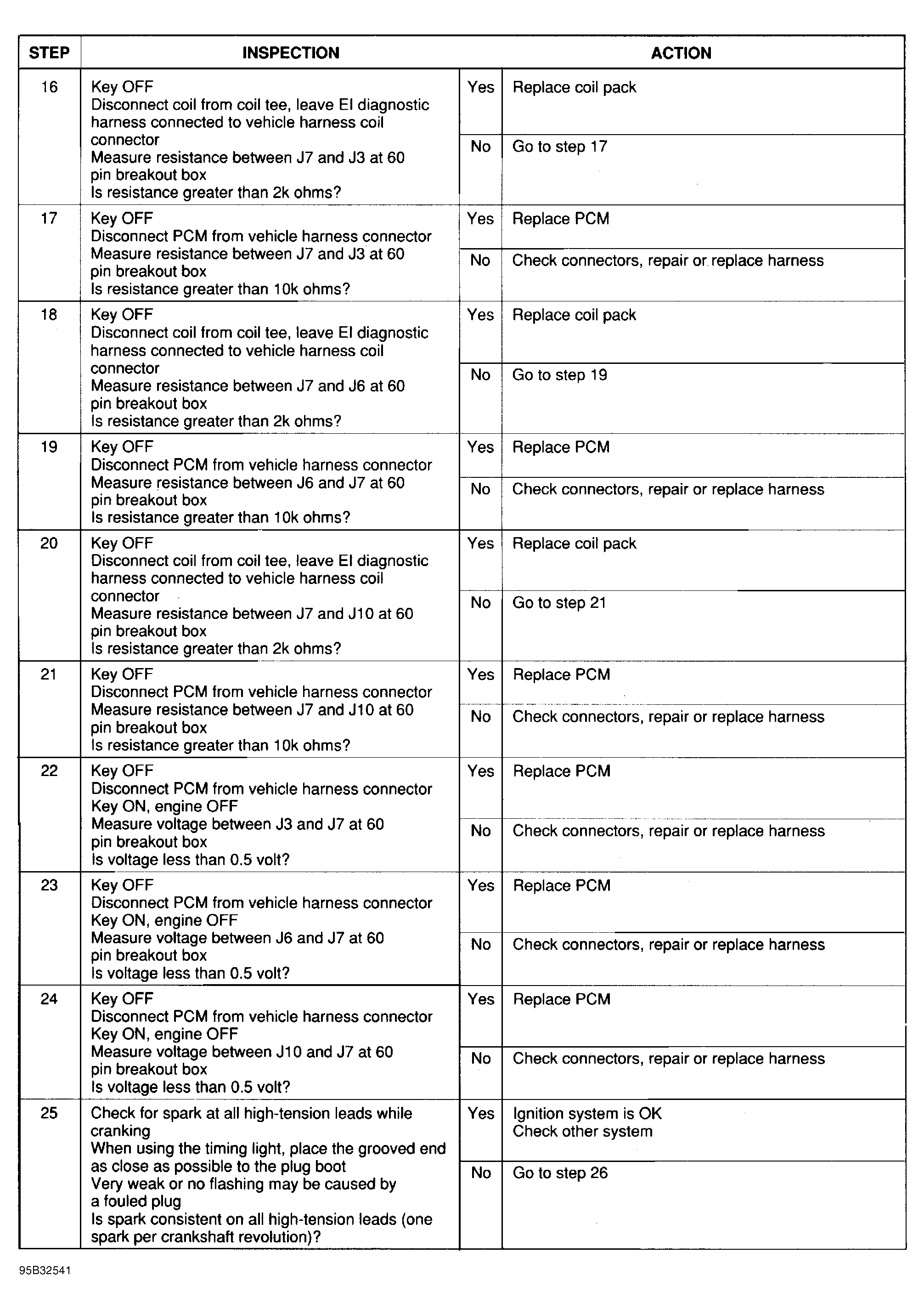

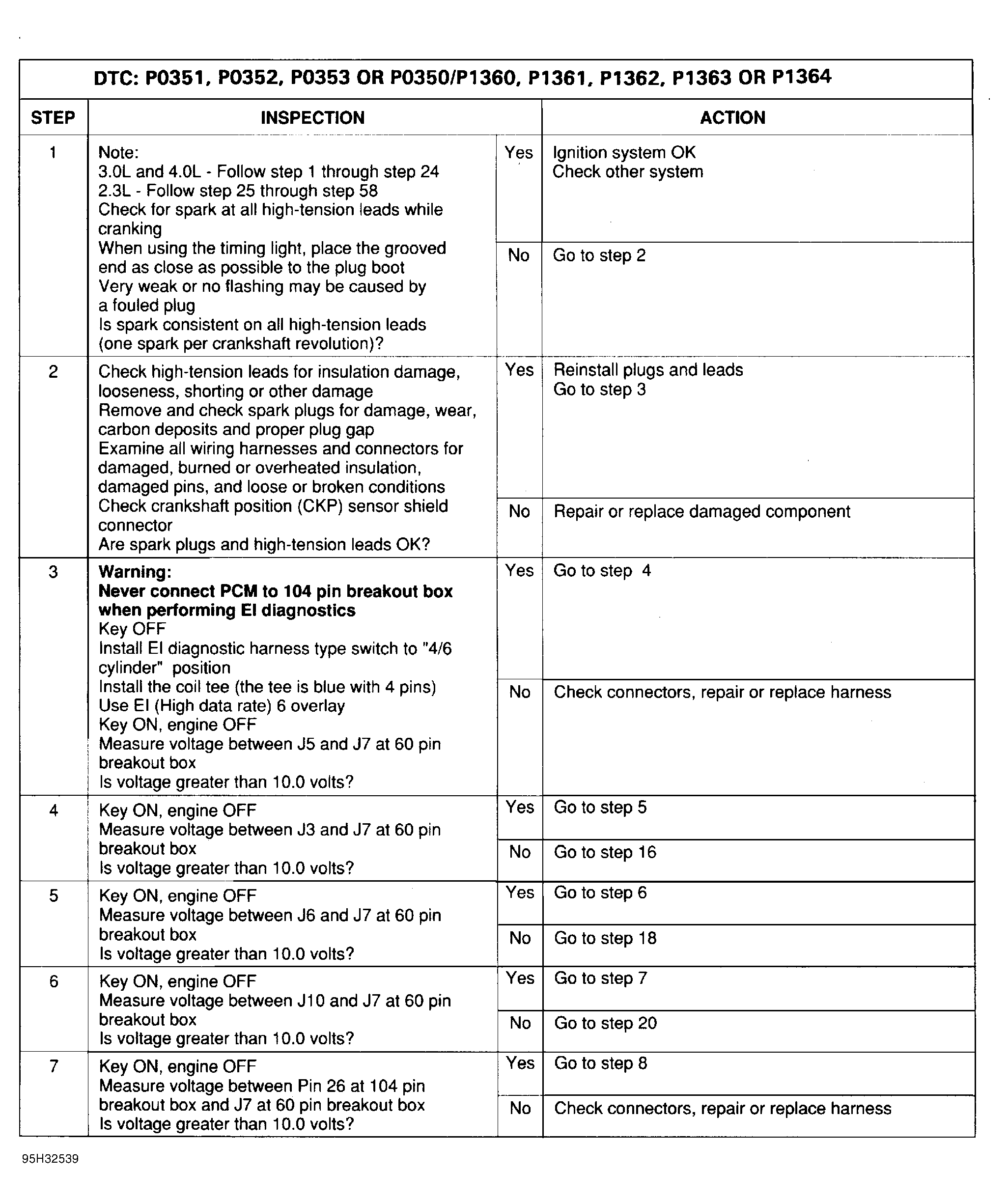

Fig 4: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 1 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 2 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 3 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 4 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 8: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 5 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 6 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Electronic Ignition Diagnostic Chart (DTC P0351, P0352, P0353 Or P0350/P1360, P1361, P1362, P1363 Or P1354 - 7 Of 7)

Courtesy of MAZDA MOTORS CORP.

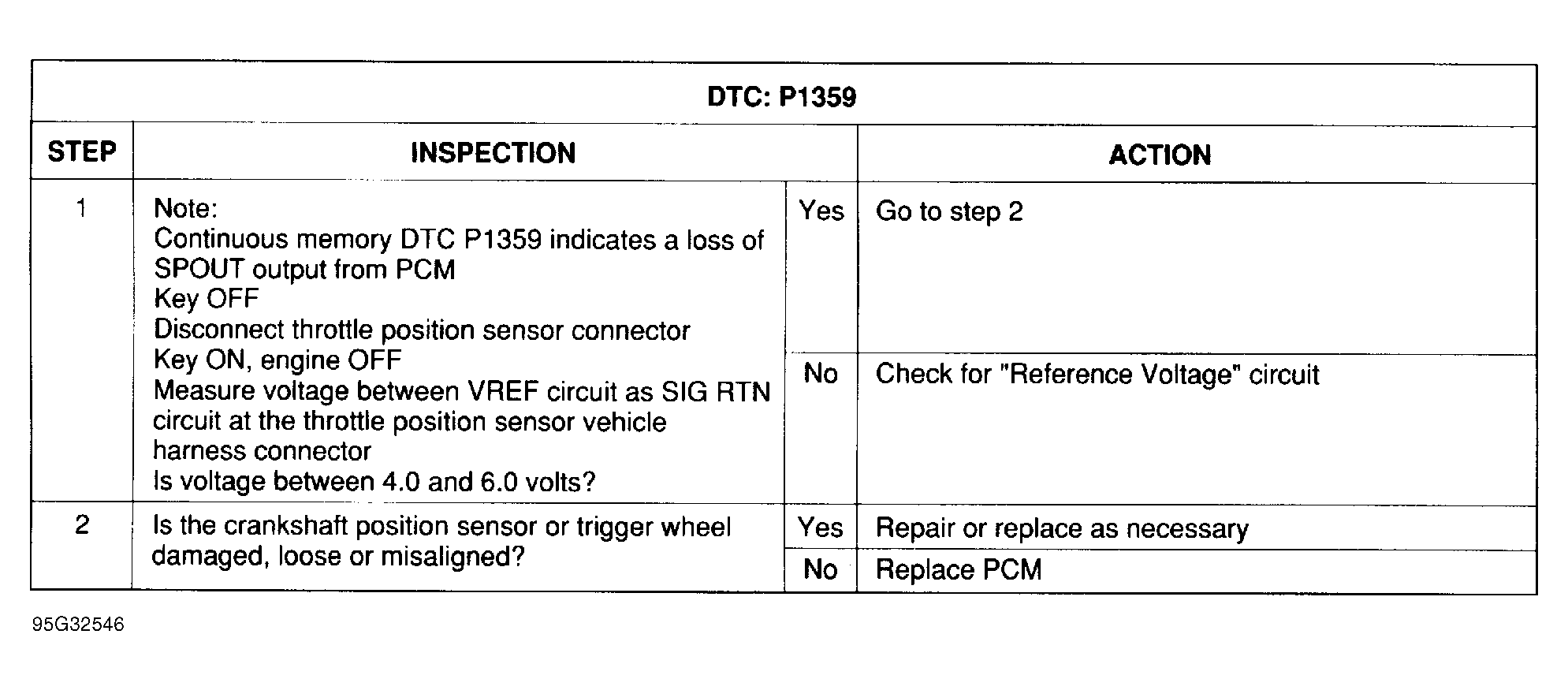

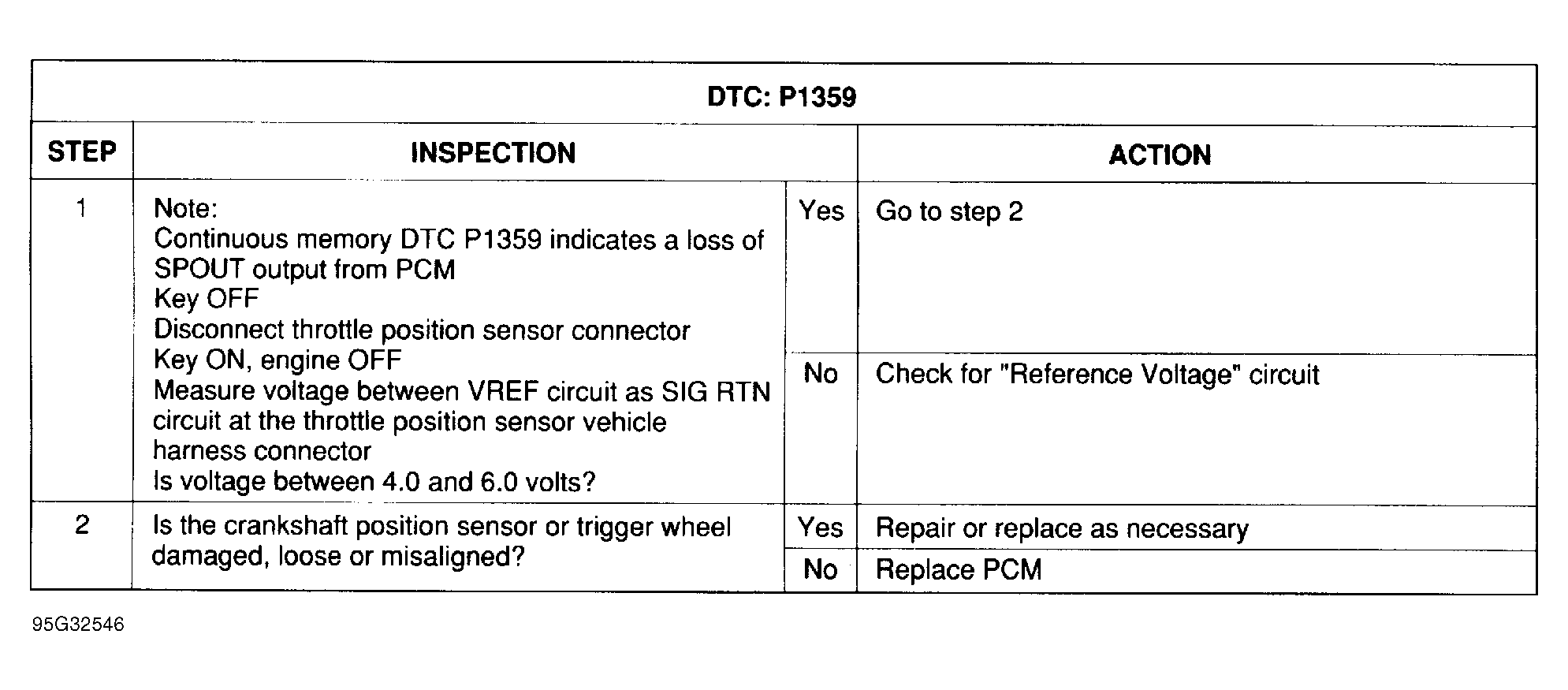

Fig 11: Electronic Ignition Diagnostic Chart (DTC P1359)

Courtesy of MAZDA MOTORS CORP.
