Diagnostic Trouble Code Definition Charts

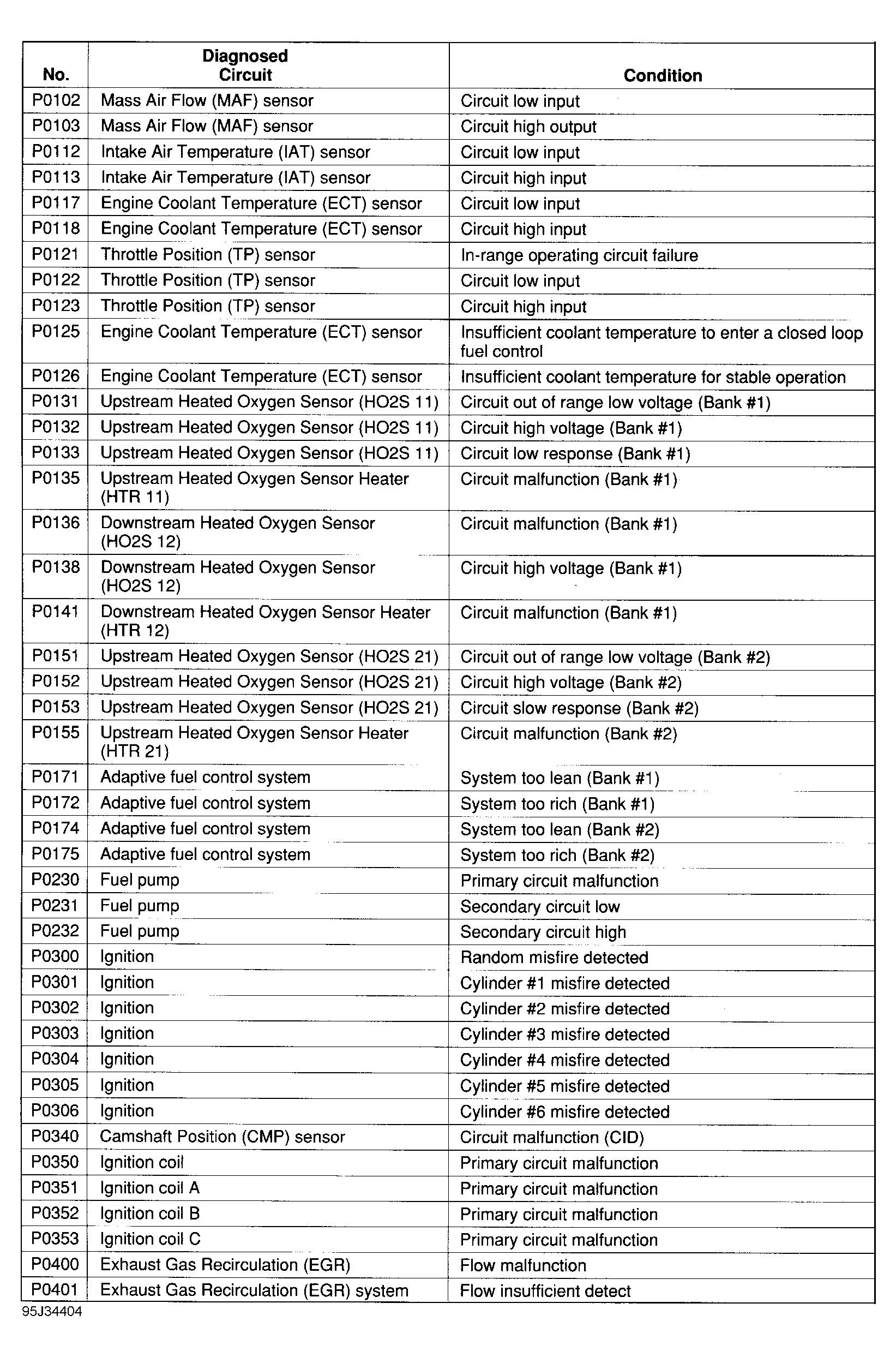

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 3)
Courtesy of FORD MOTOR CO.

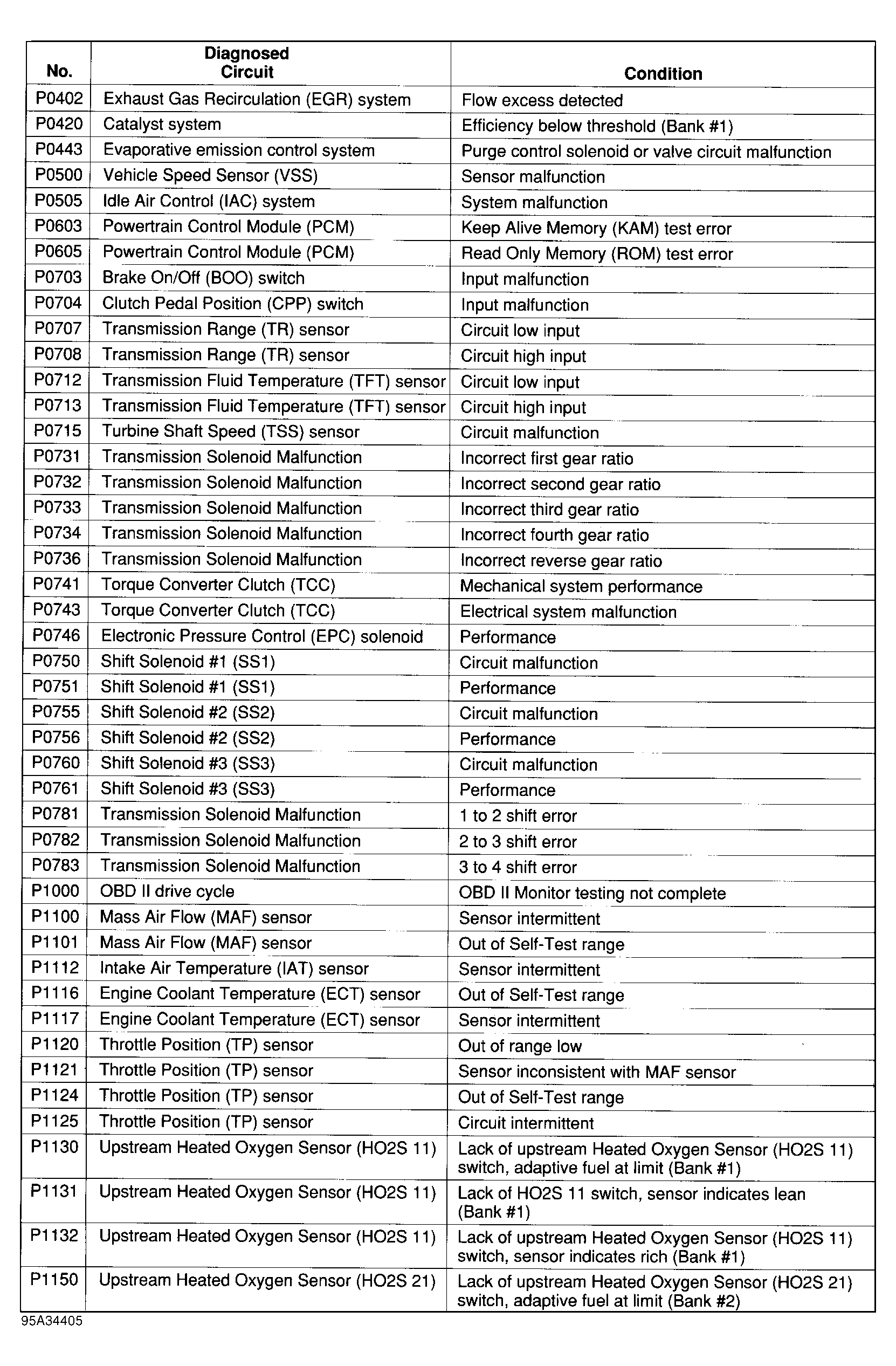

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 3)
Courtesy of FORD MOTOR CO.

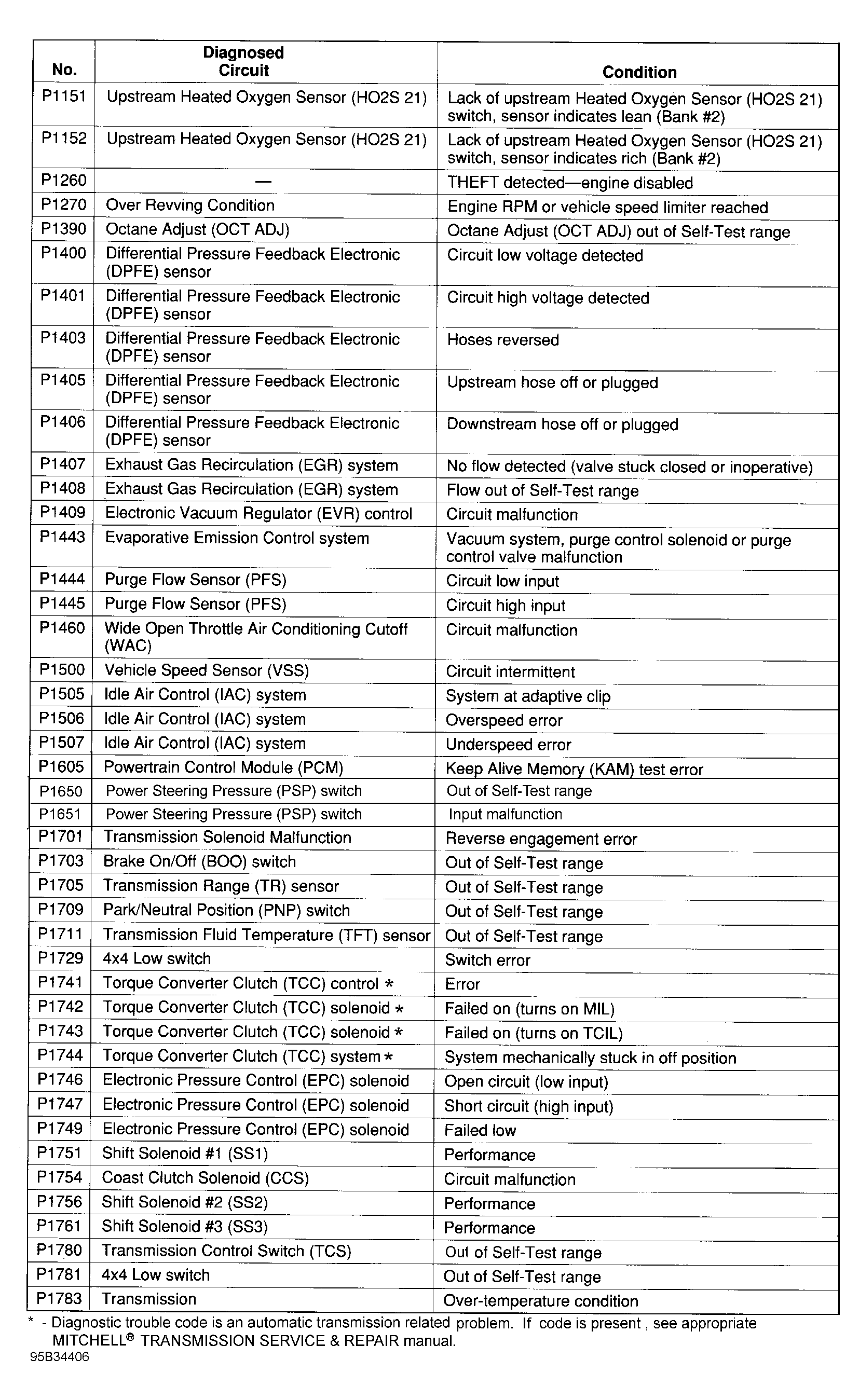

Fig 3: Diagnostic Trouble Code Definition Chart (3 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
