Code P0715: Turbine Shaft Sensor Circuit Malfunction

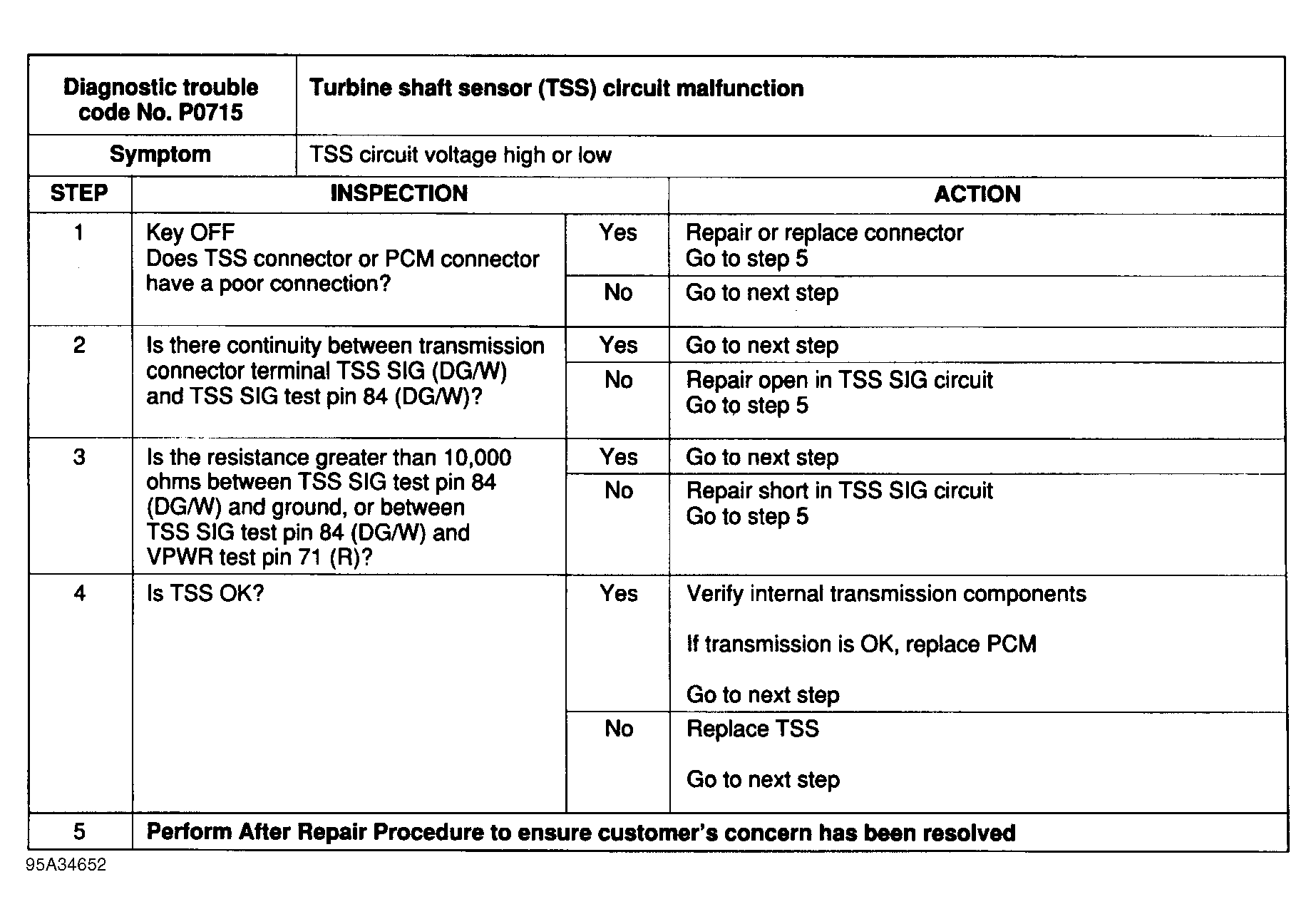

Fig 1: Trouble Code No. P0715 Turbine Shaft Sensor Circuit Malfunction
G95A34652

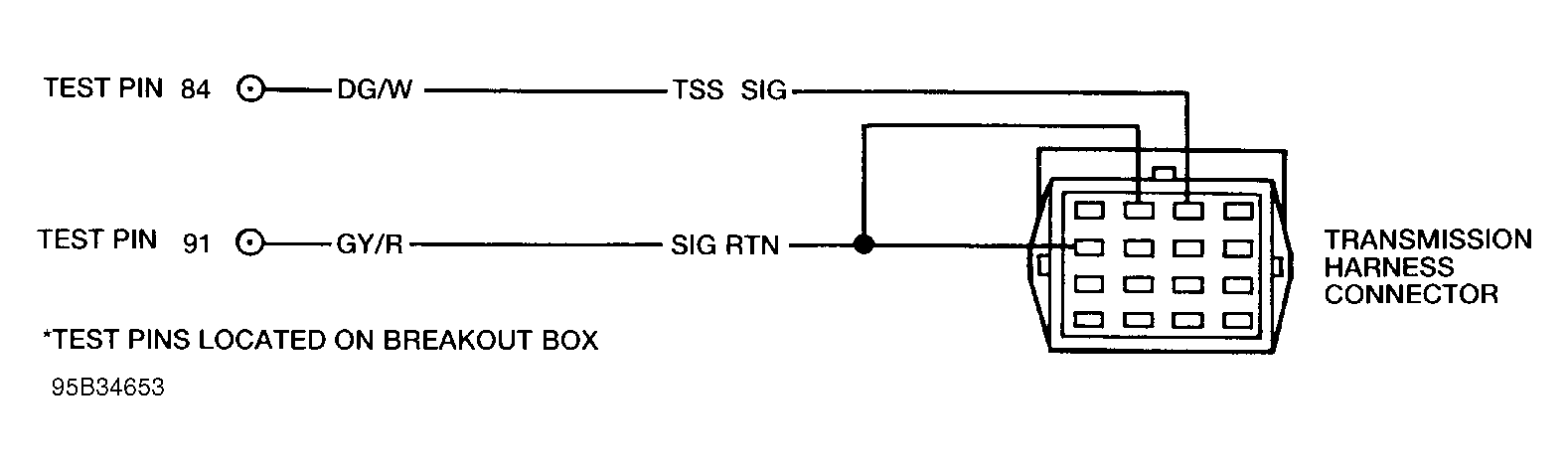

Fig 2: Trouble Code No. P0715 Turbine Shaft Sensor (TSS) Circuit Diagram
G95B34653
