Abs Relay

Remove ABS relay from relay box in left side of engine compartment. Apply battery voltage to terminal "A" and ground terminal "B" of ABS relay. See Fig 1. Using ohmmeter, check continuity between terminals "C" and "D" of ABS relay. Continuity should exist. If continuity does not exist, replace ABS relay.

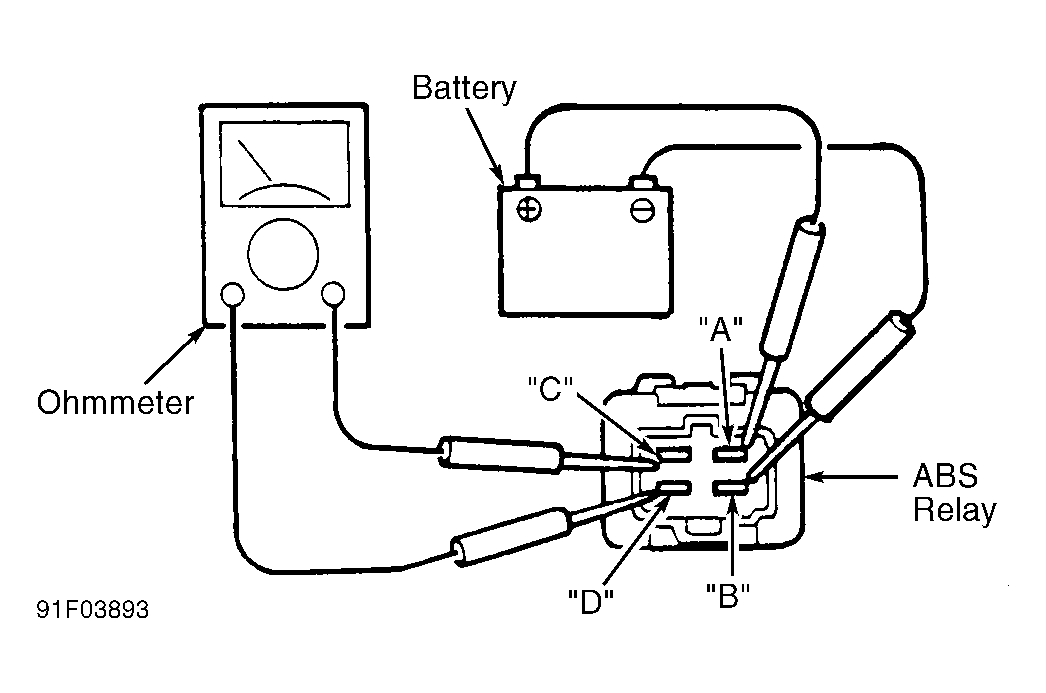

Fig 1: Testing ABS Relay

Courtesy of MAZDA MOTORS CORP.
