Pin Voltage Charts

NOTE: The following charts are courtesy of Mazda Motors Corp.

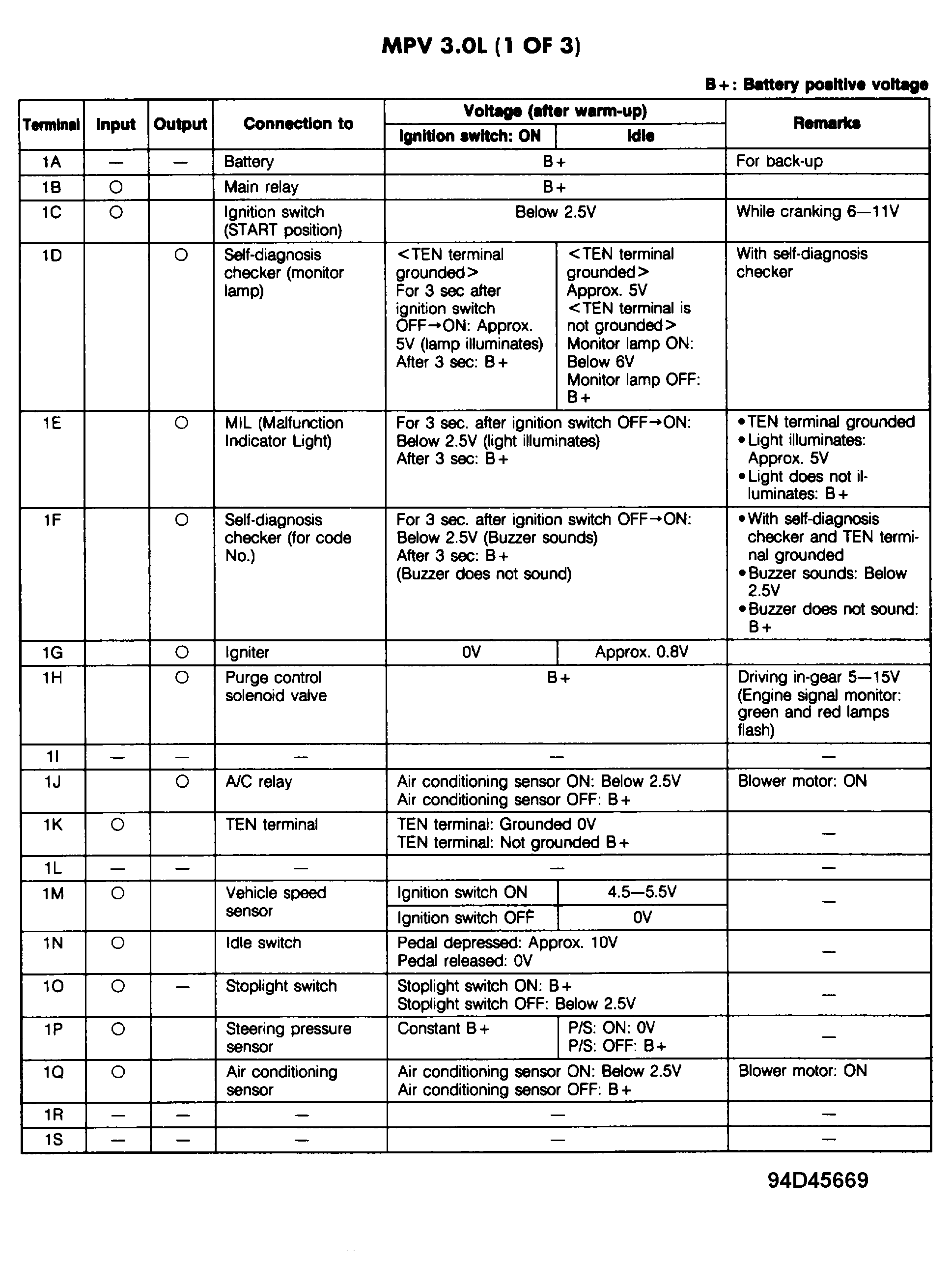

Fig 1: ECU Pin Voltage Chart (MPV 3.0L - 1 Of 3)

Courtesy of MAZDA MOTORS CORP.

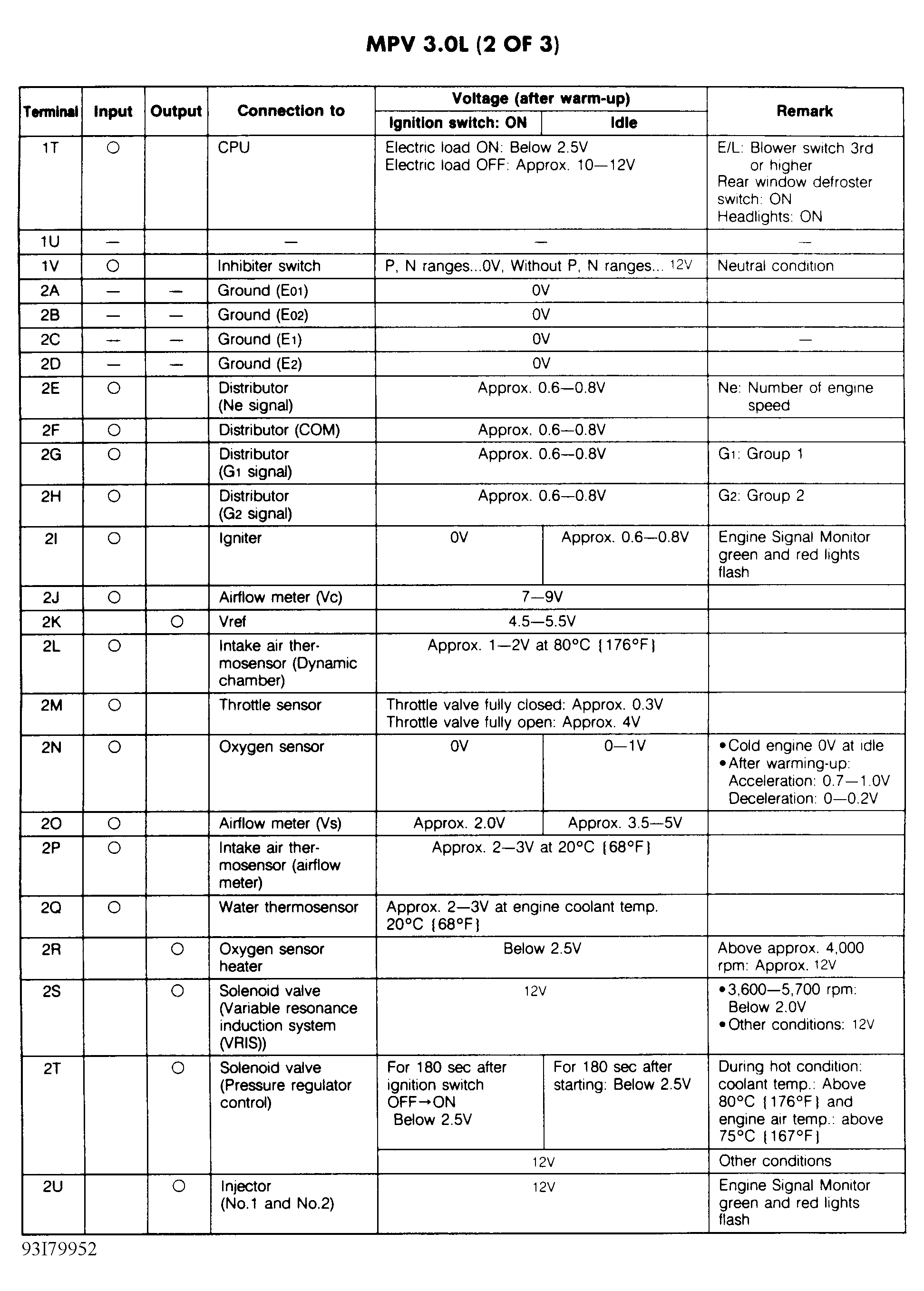

Fig 2: ECU Pin Voltage Chart (MPV 3.0L - 2 Of 3)

Courtesy of MAZDA MOTORS CORP.

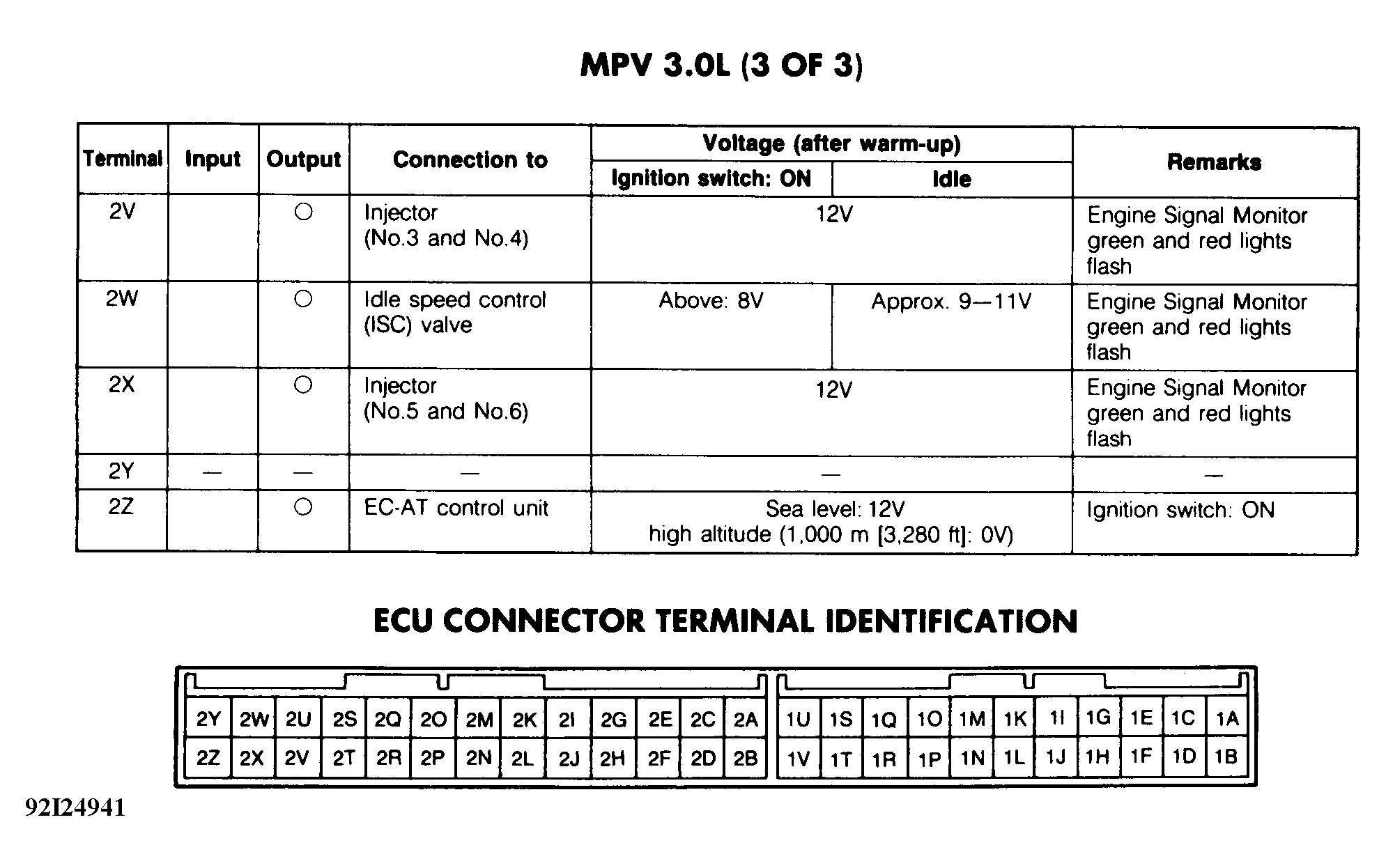

Fig 3: ECU Pin Voltage Chart (MPV 3.0L - 3 Of 3)

Courtesy of MAZDA MOTORS CORP.

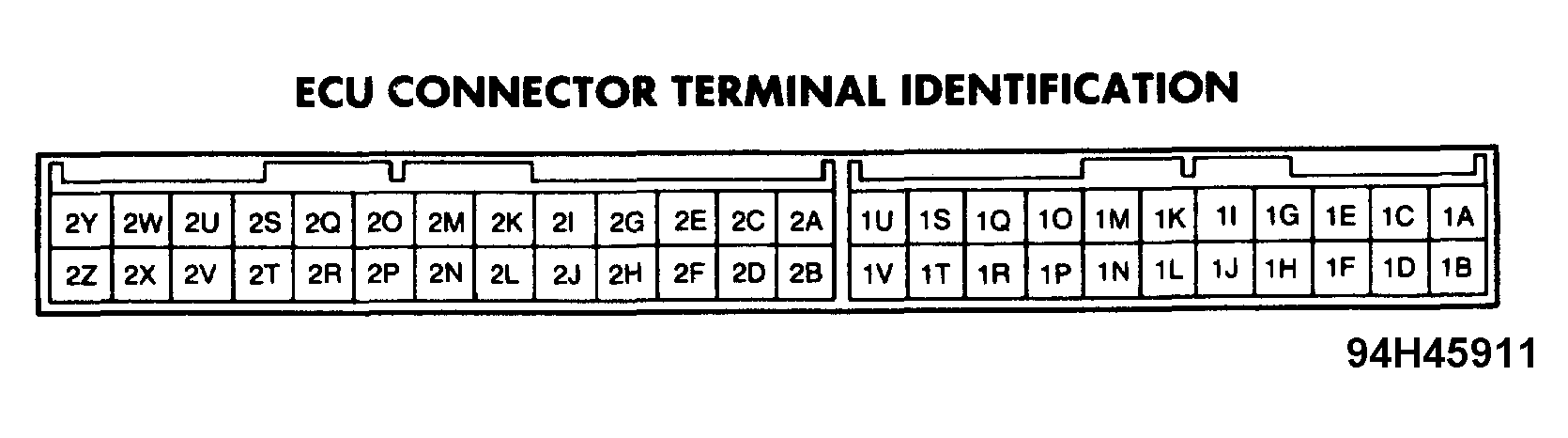

Fig 4: ECU Connector Terminal Identification (MPV 3.0L)

Courtesy of MAZDA MOTORS CORP.
