Electrical Load System

Remove Central Processing Unit (CPU) from behind left side of instrument panel. Measure voltage at specified terminals of CPU connector. See CPU VOLTAGE CHART. See Fig 1 . If voltages are incorrect, check appropriate circuit. If all voltages are correct and problem exists, replace CPU.

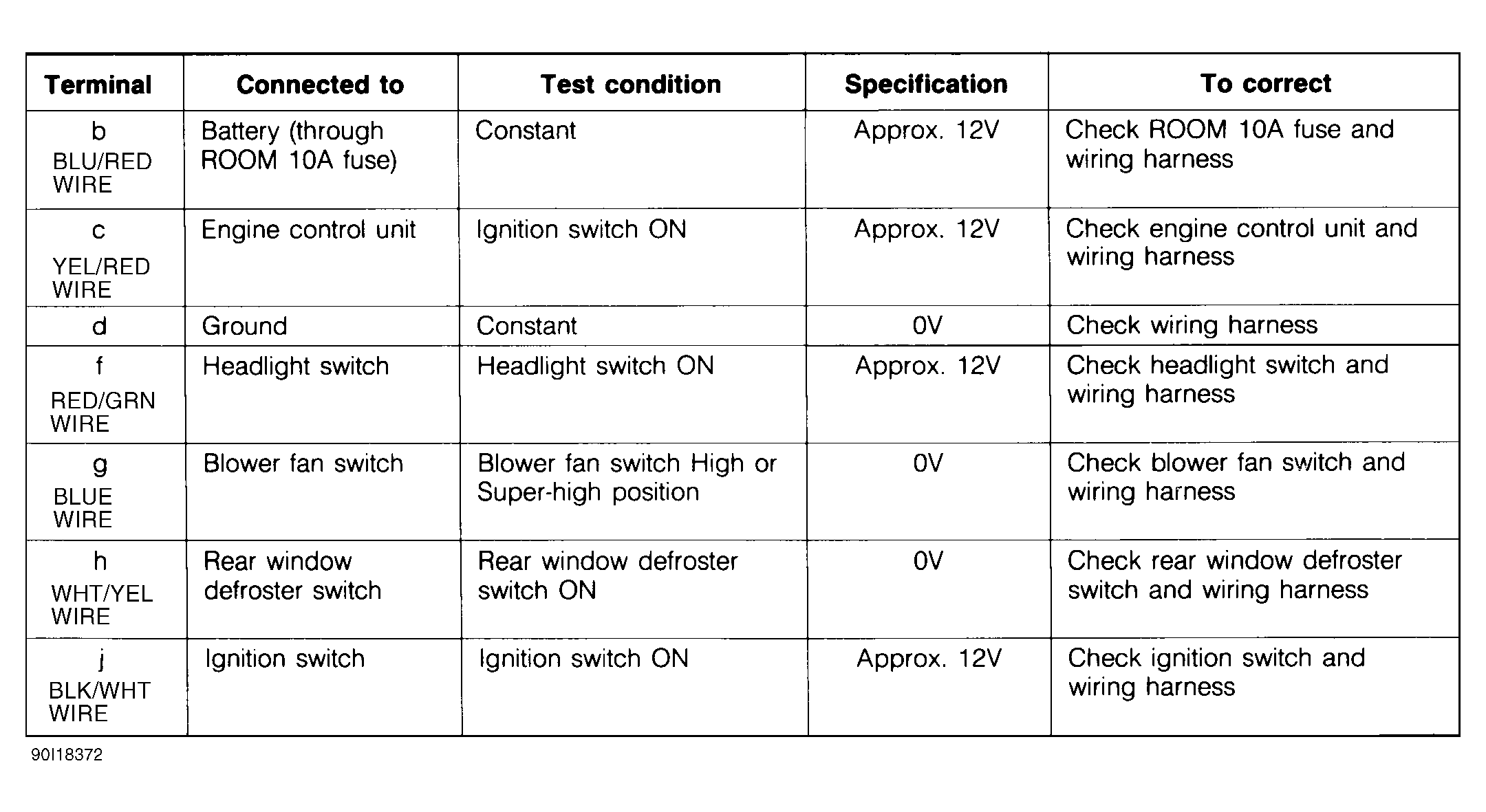

Fig 1: CPU Voltage Chart

Courtesy of MAZDA MOTORS CORP.
