Code 11: Air Temperature Sensor - Dynamic Chamber

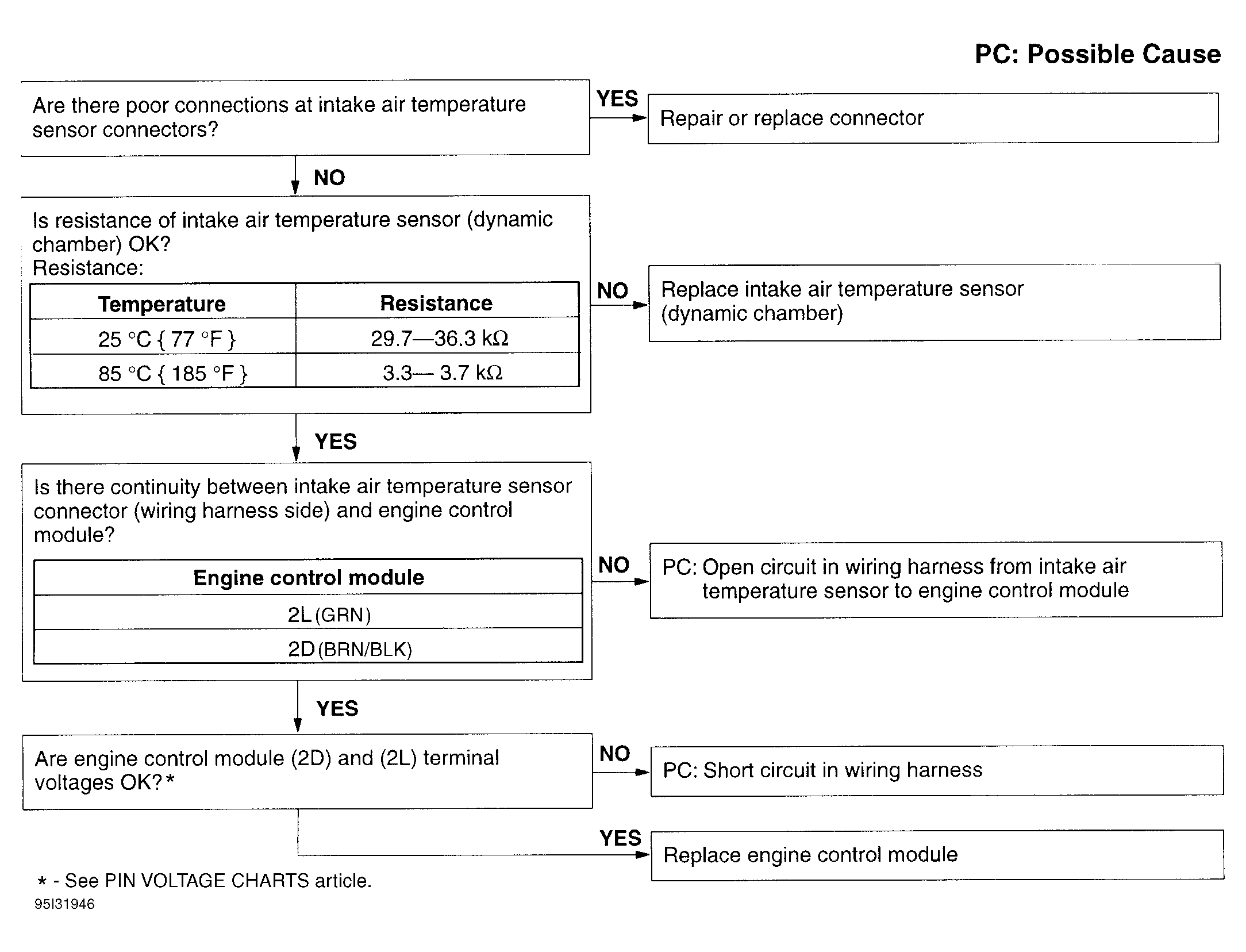

Fig 1: Trouble Code No. 11 Intake Air Temperature Sensor - Dynamic Chamber
