Main Switch

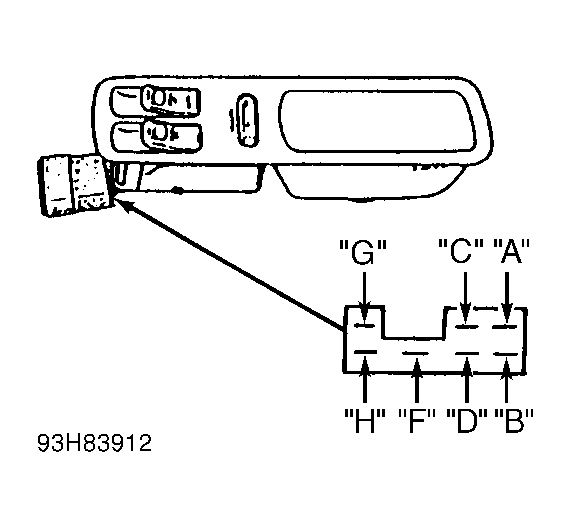

Check continuity across specified terminals of the main switch connector with main switch button held in the specified position. Refer to the appropriate MAIN SWITCH CONTINUITY TEST . Also, seeFig 1 . Replace main switch if continuity is not as specified.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Terminals | |||
|---|---|---|---|---|
| Driver | ||||
| UP | A & C; B & F | |||
| Off (Neutral) | A, B & C | |||
| DOWN (1) | A & F; B & C | |||
| Passenger | ||||
| UP | C & G; F & H | |||
| Off (Neutral) | C, H & G | |||
| DOWN | F & G; C & H | |||
|
||||
