Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

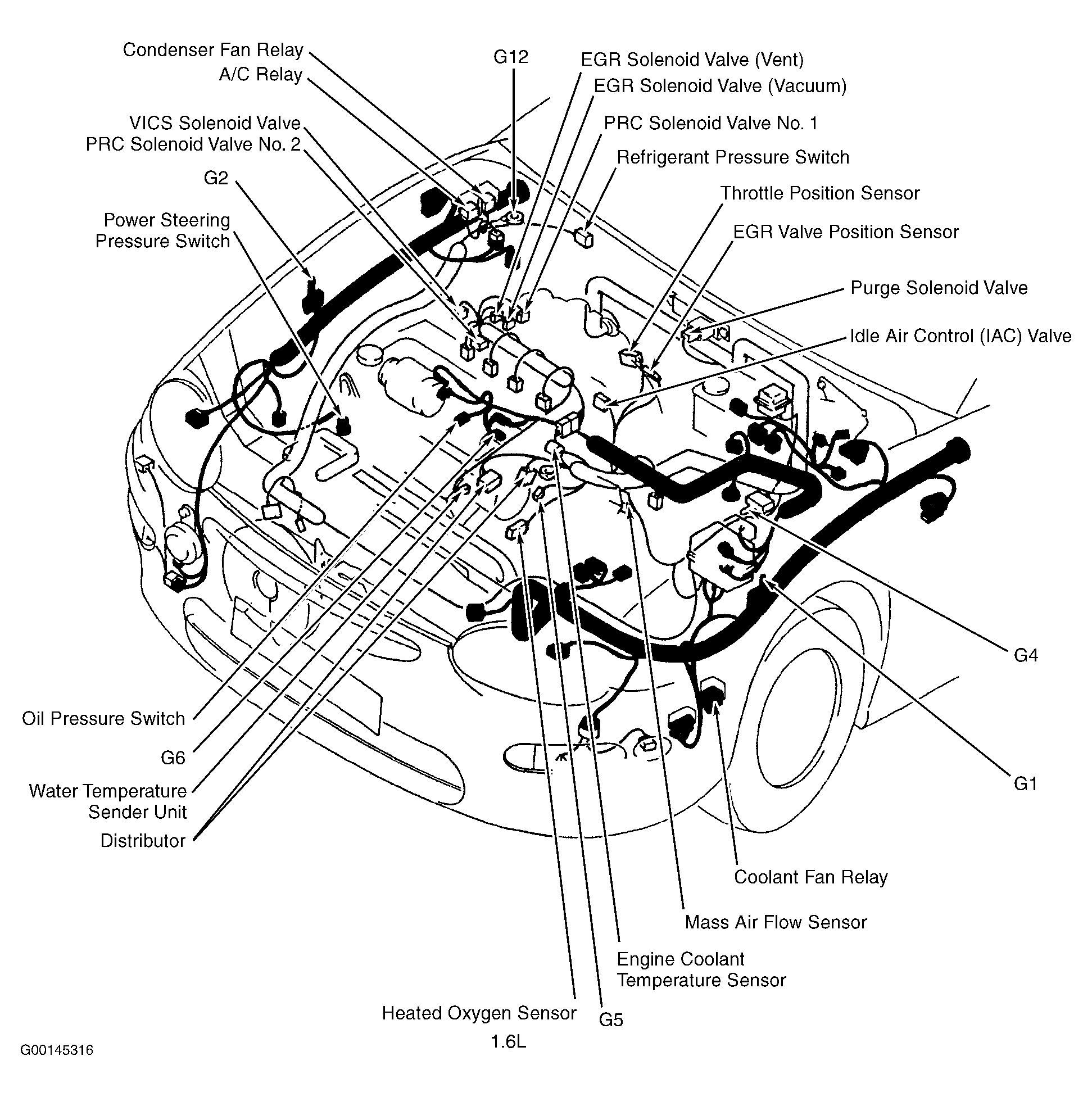

Fig 1: Engine Compartment (1.6L)

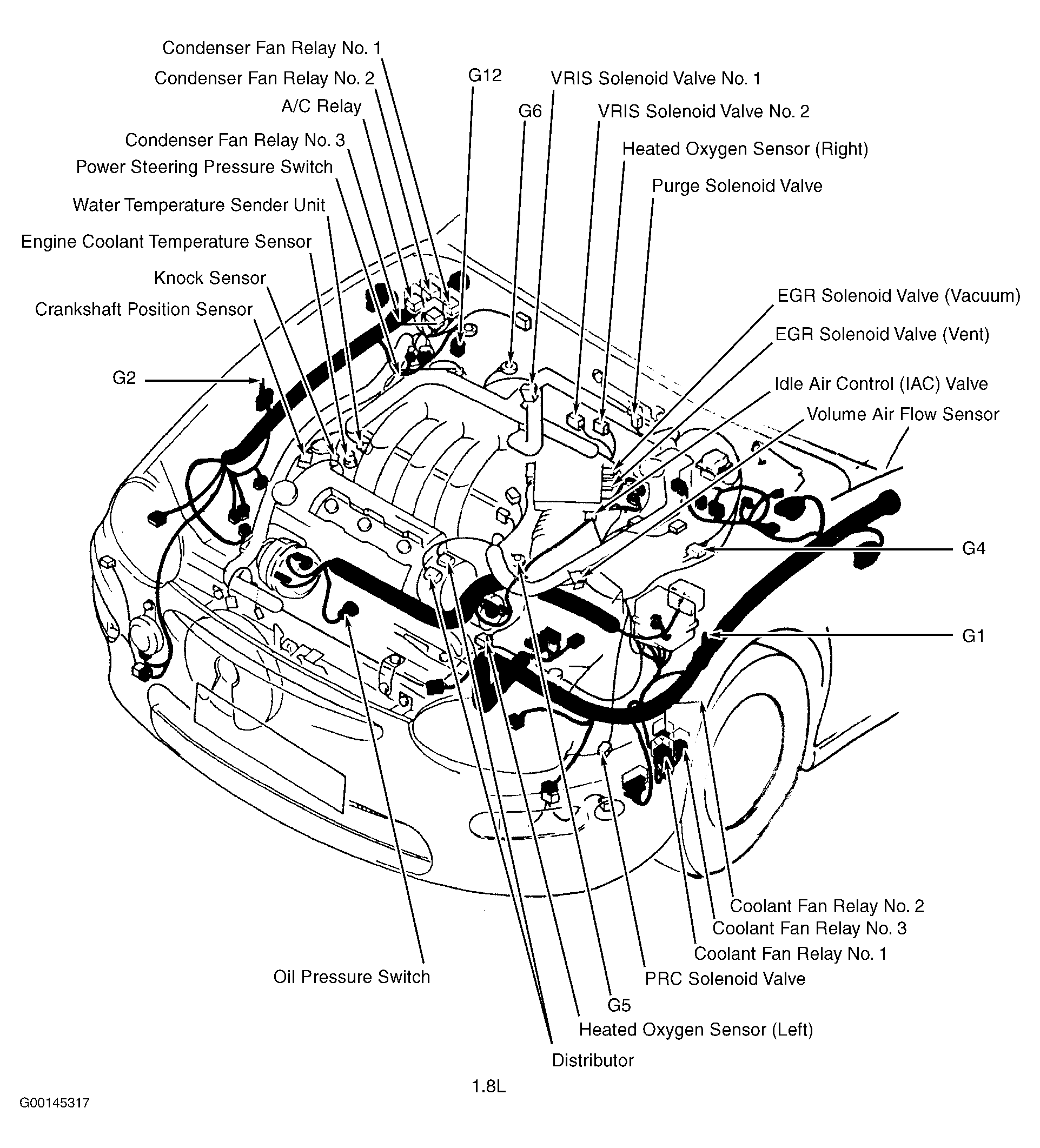

Fig 2: Engine Compartment (1.8L)

Fig 3: Dash

Fig 4: Left Rear Of Vehicle
