Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

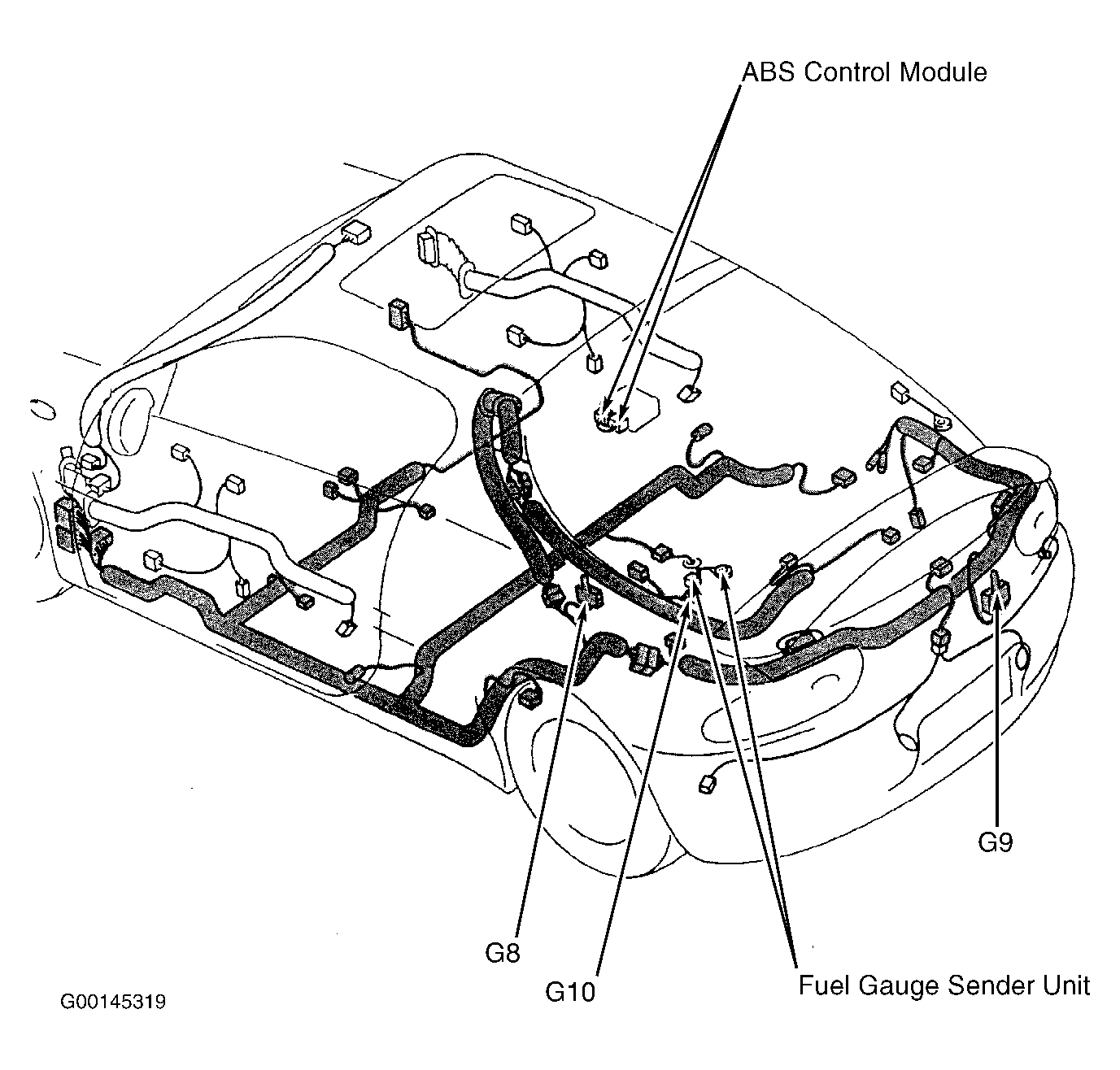

| ABS Control Module | Under passenger's seat. See Figure . |
| Central Processing Unit (CPU) | Behind left side of dash. |

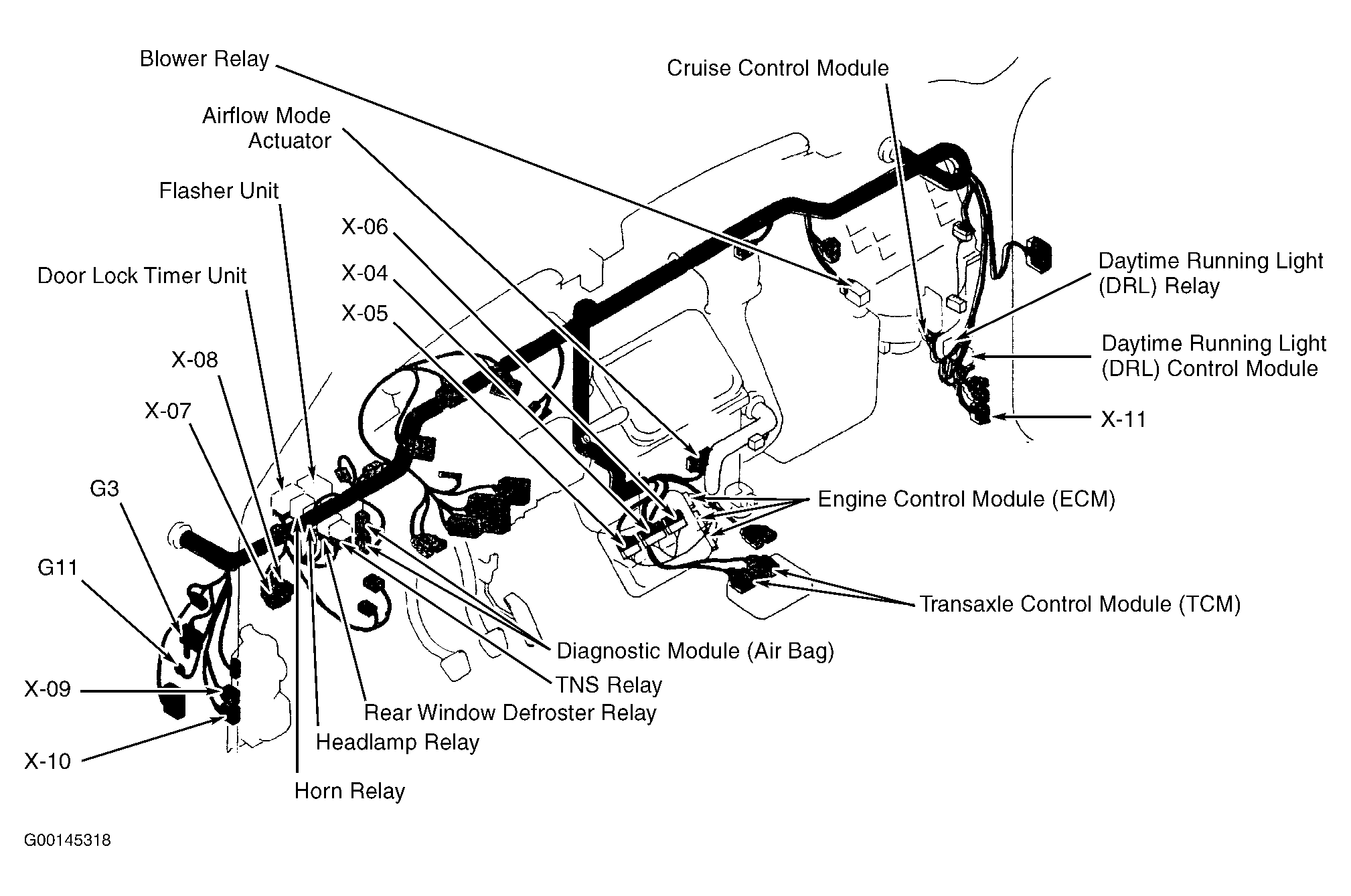

| Cruise Control Module | Behind right kick panel. See Figure . |
| Daytime Running Lamp (DRL) Control Module | Behind right kick panel. See Figure . |
| Diagnostic Module (Air Bag) | Behind left side of dash. See Figure . |
| Engine Control Module (ECM) | Behind center of dash. See Figure . |
| Transaxle Control Module (TCM) | Behind center of dash. See Figure . |
