Throttle Position (TP) Sensor Continuity: Inspection

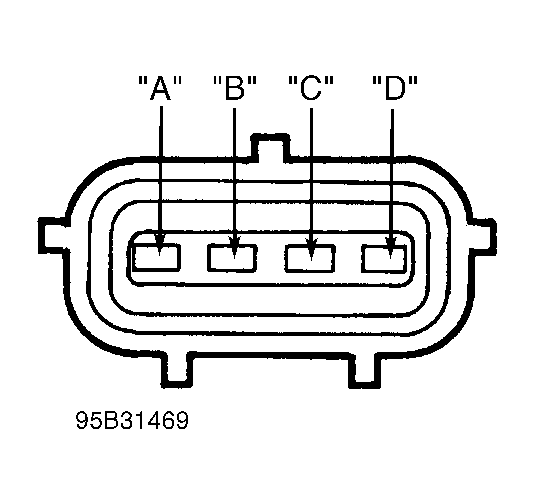

  1. Turn ignition switch to OFF position and throttle valve to closed throttle position. Disconnect TP sensor connector. Connect ohmmeter between terminals "A" and "B" of TP sensor connector. See Figure . Continuity should exist. If continuity does not exist, adjust T P sensor. See ADJUSTMENT procedure below.
  2. Insert a feeler gauge of specified thickness between throttle lever and throttle stop screw. See TP SENSOR CONTINUITY  . Connect ohmmeter between terminals "A" and "B" of TP sensor connector. See Figure . If continuity is not as specified, adjust TP sensor. See ADJUSTMENT procedure below.
