Bypass Air Control (BAC) Valve

Remove BAC valve from throttle body. Let valve cool. Place air valve in water at temperature greater than 176°F (80°C) or heat with heat gun. Plunger should move outward. See Fig 1 .

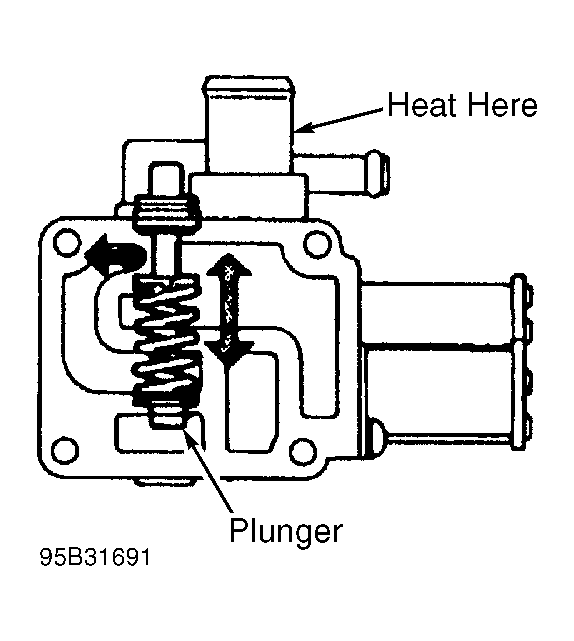

Fig 1: Identifying BAC Valve

Courtesy of MAZDA MOTORS CORP.
