Code 4: SGT Signal - Distributor

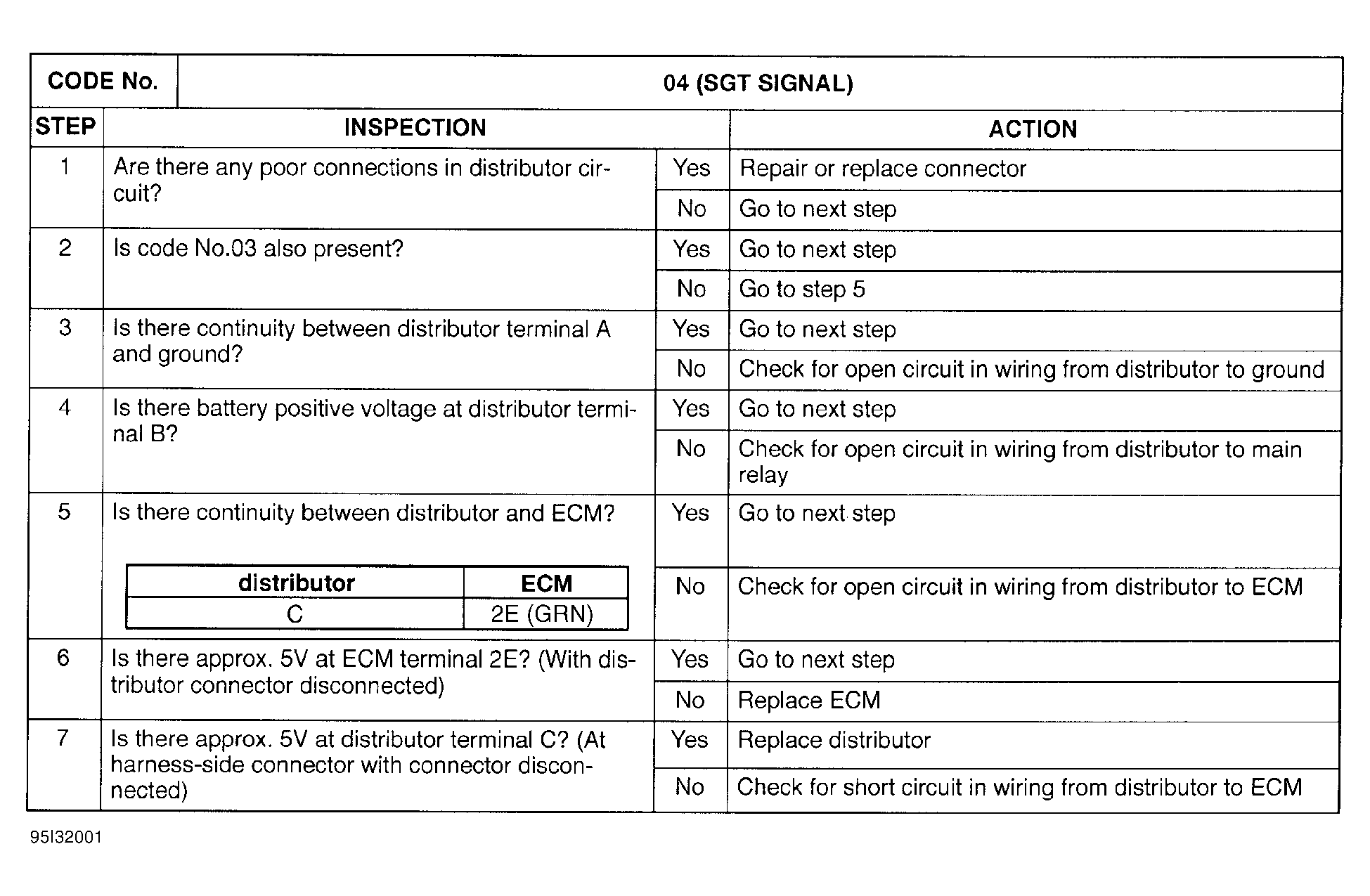

Fig 1: Trouble Code No. 4 SGT Signal - Distributor
G95I32001

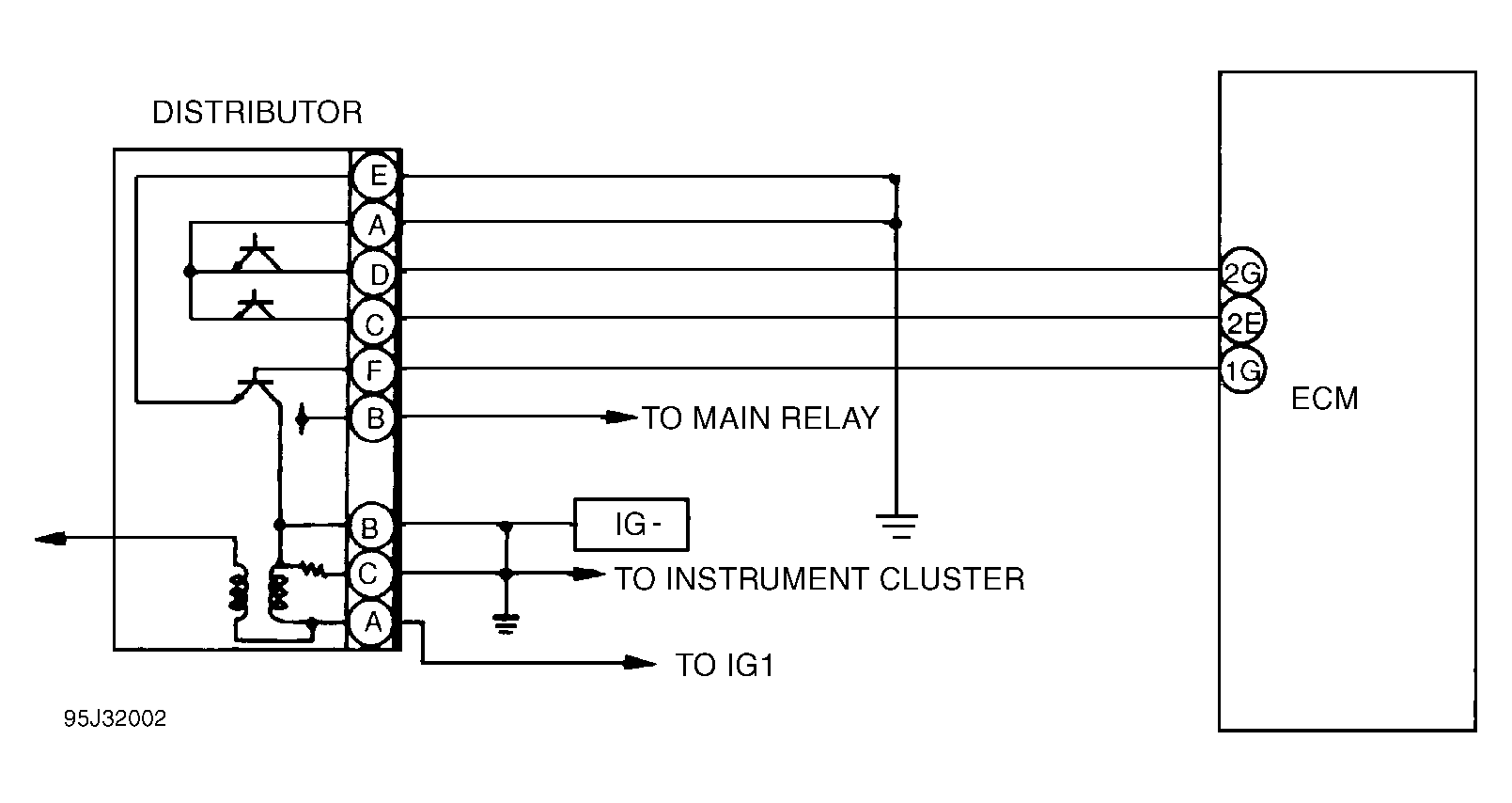

Fig 2: Trouble Code No. 4 Distributor Circuit Diagram
G95J32002
