Code 17: Heated Oxygen Sensor - Sticking

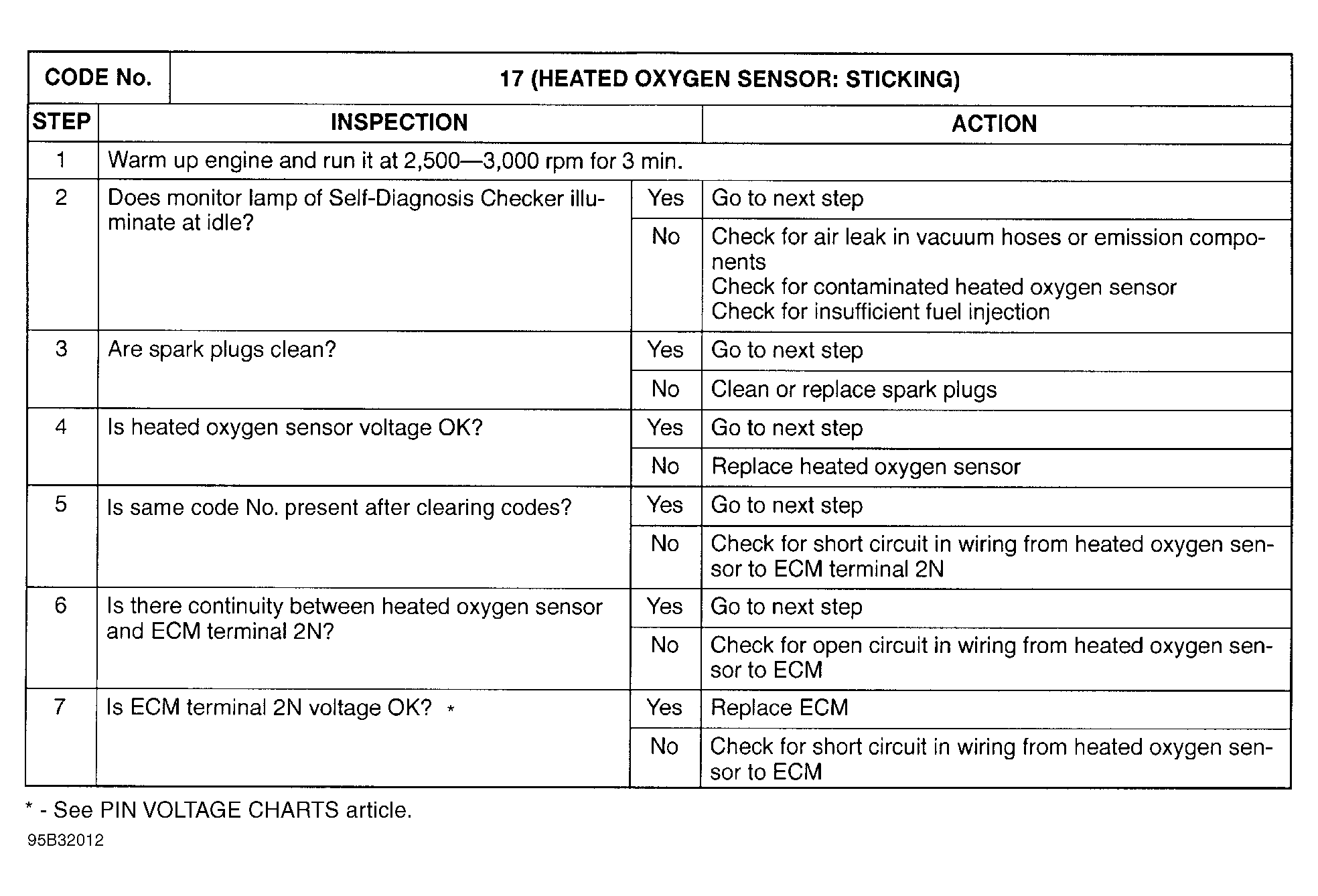

Fig 1: Trouble Code No. 17 Heated Oxygen Sensor - Sticking
G95B32012

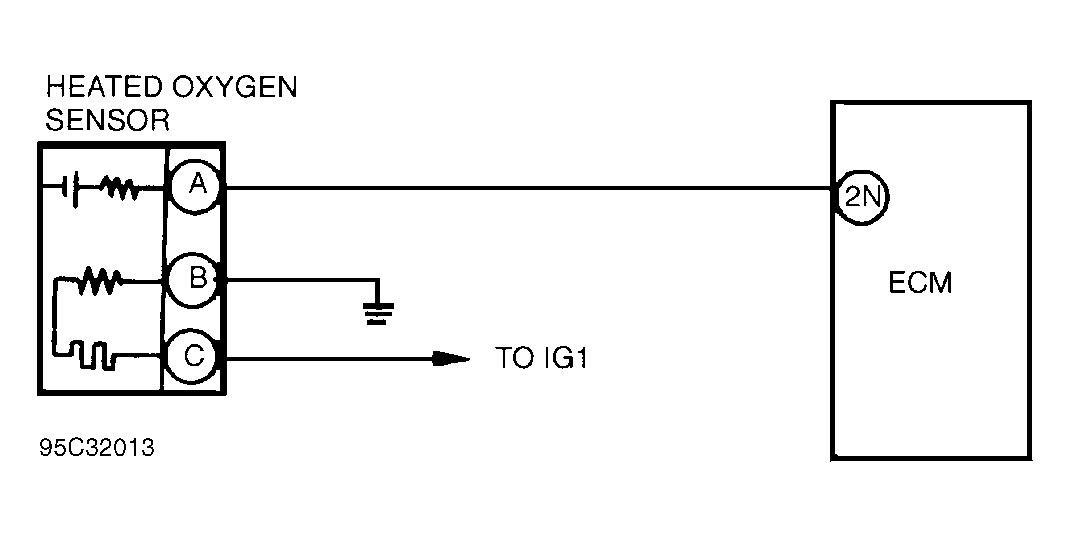

Fig 2: Trouble Code No. 17 Heated Oxygen Sensor Circuit Diagram
G95C32013
