Code 3: SGT Signal - Camshaft Position Sensor

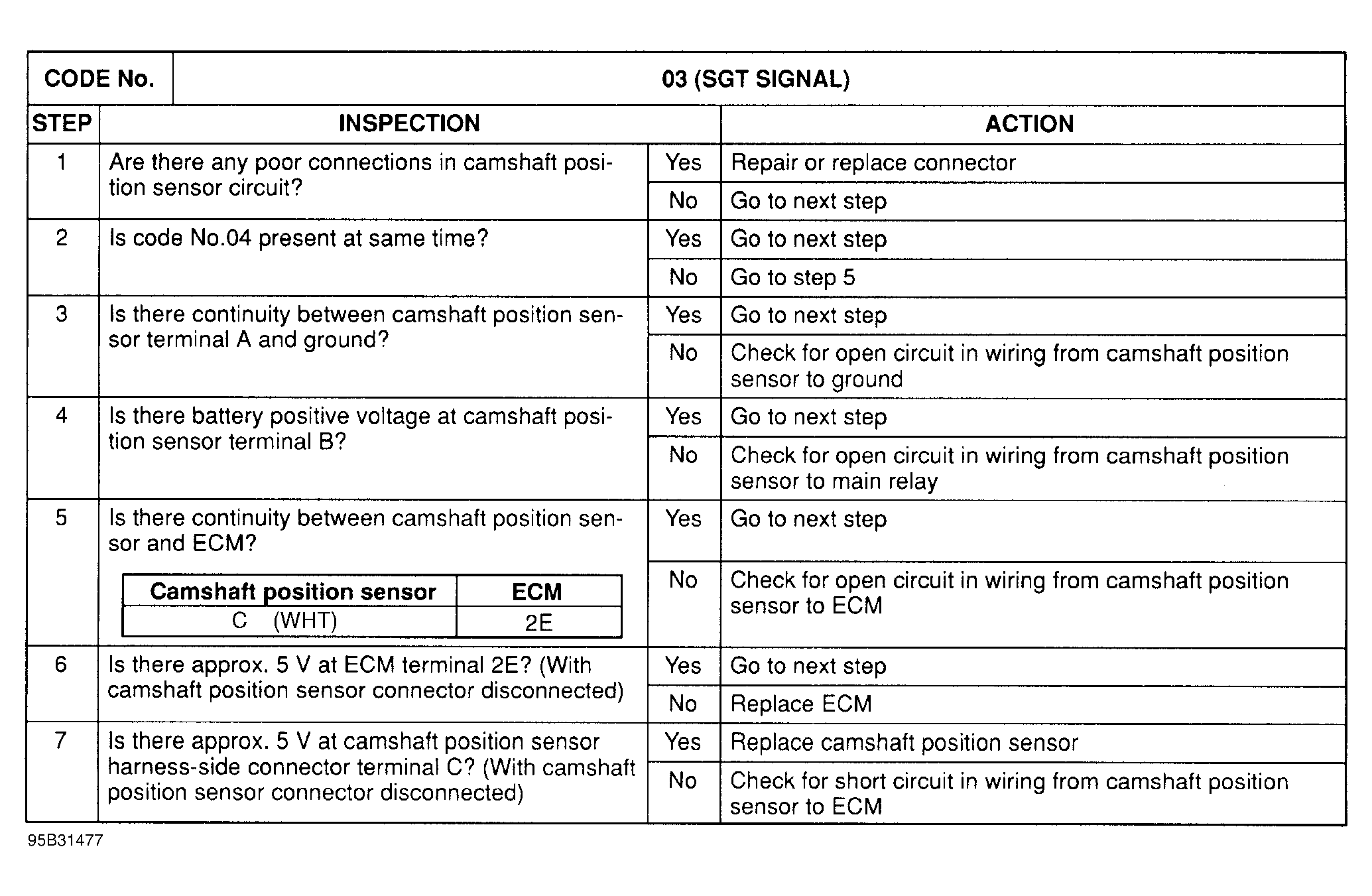

Fig 1: Trouble Code No. 3 SGT Signal - Camshaft Position Sensor
