Code 4: SGC Signal - Camshaft Position Sensor

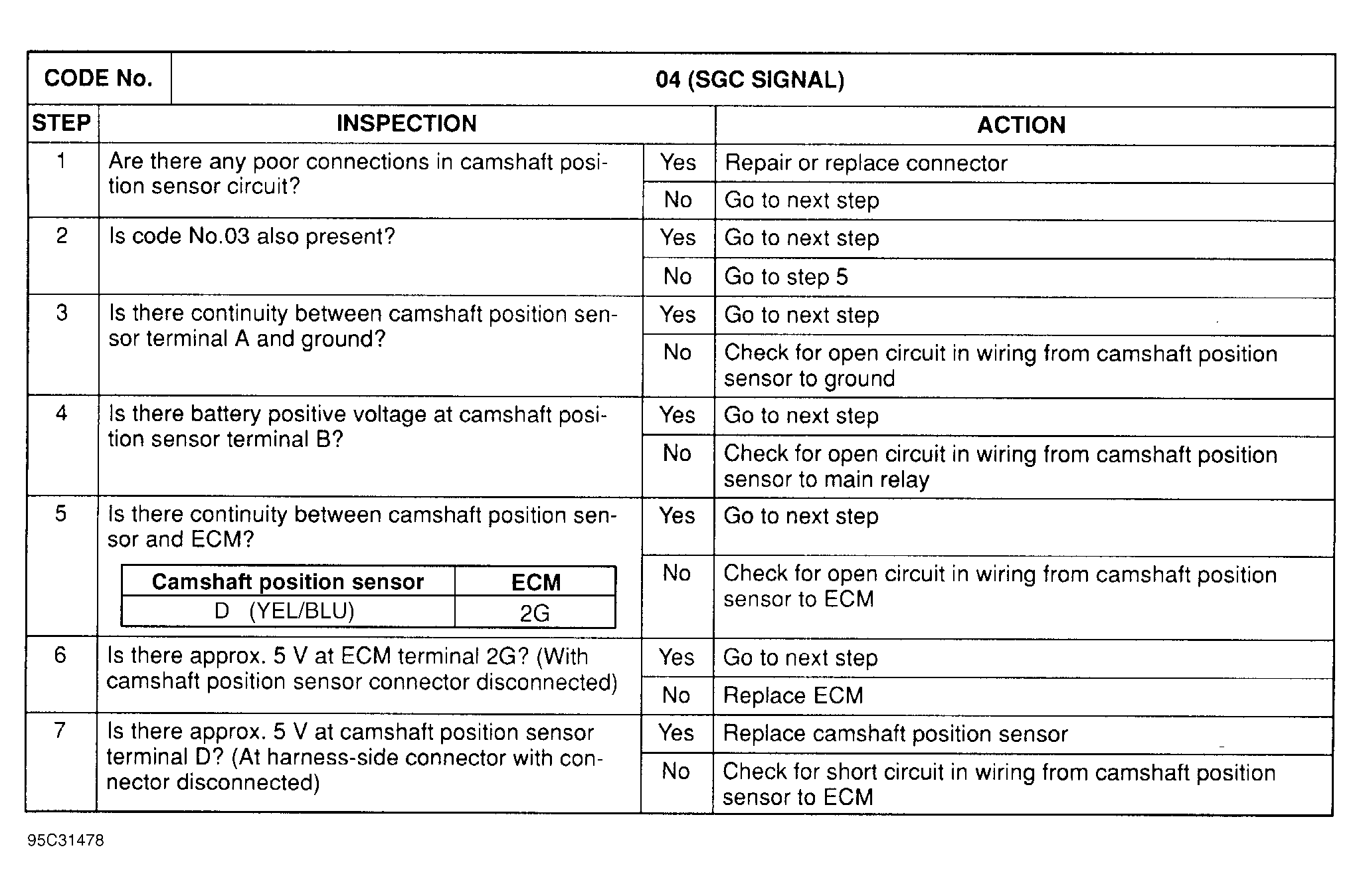

Fig 1: Trouble Code No. 4 SGC Signal - Camshaft Position Sensor
G95C31478

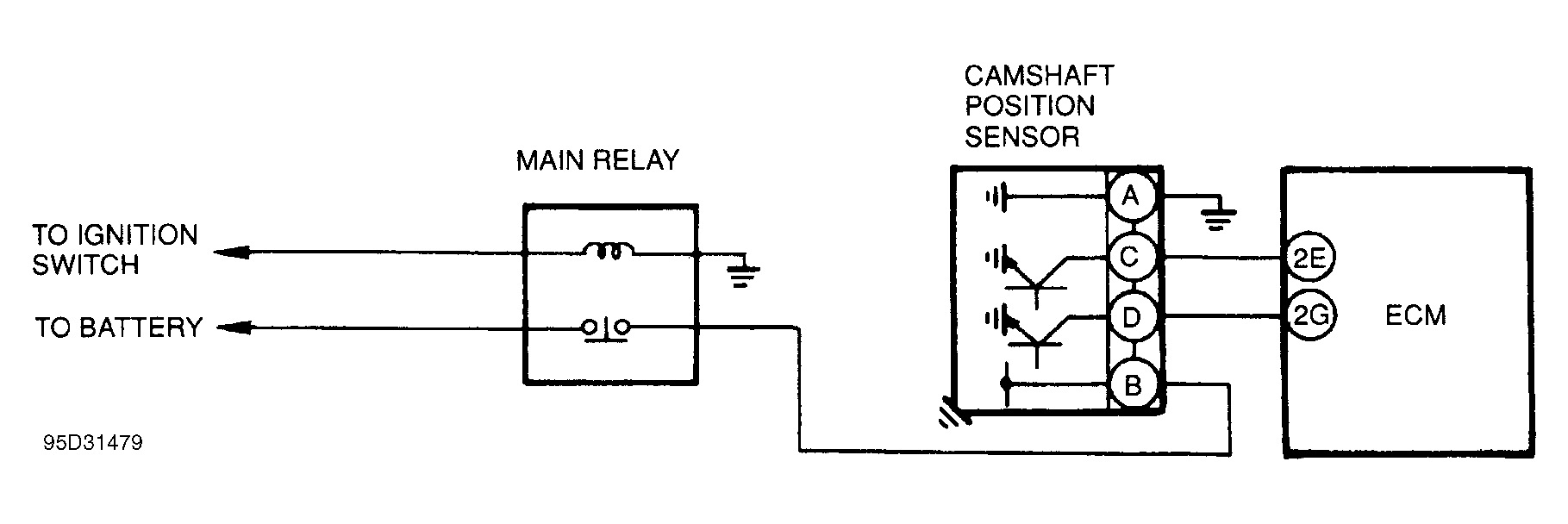

Fig 2: Trouble Code No. 4 Camshaft Position Sensor Circuit Diagram
G95D31479
