Caster Adjustment

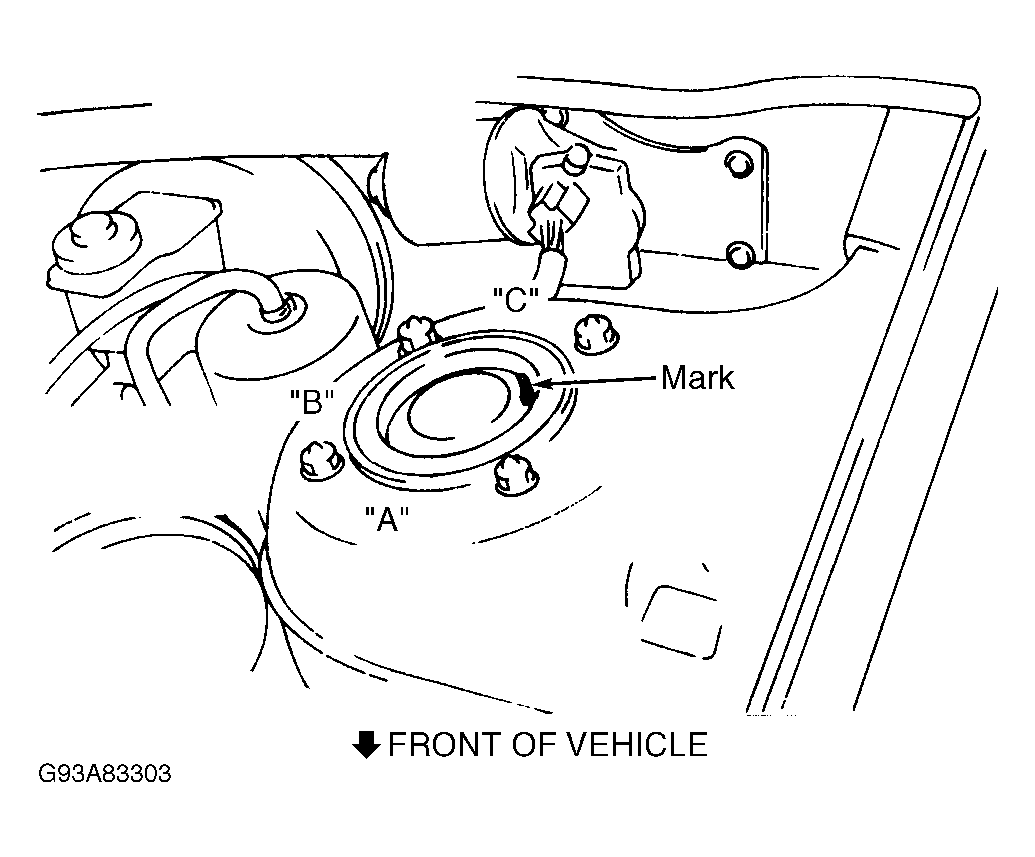

Raise and support front of vehicle. Remove upper strut-to-body nuts. Push strut mounting block downward, and turn to desired position. See Figure . See CASTER ADJUSTMENT (MX-6 & 626) table. Reinstall and tighten nuts to specification. See TORQUE SPECIFICATIONS .
CASTER ADJUSTMENT (MX-6 & 626)
| Mark | Change From Standard |
|---|---|
| A | + 1/2° |
| B | + 1/2° |
| C | 0° |
