Engine Code Location

NOTE: On B2300, B3000 and B4000, illustration for engine identification code location is not available.

Fig 1: Locating Engine Identification Codes Miata 1.8L 4-Cylinder

Courtesy of MAZDA MOTORS CORP.

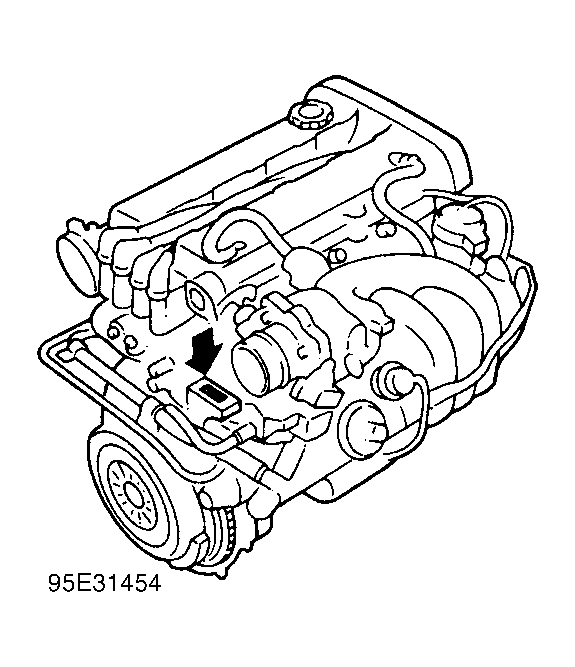

Fig 2: Locating Engine Identification Codes Millenia S 2.3L V6

Courtesy of MAZDA MOTORS CORP.

Fig 3: Locating Engine Identification Codes Millenia 2.5L V6, MX-6 & 626 2.5L V6

Courtesy of MAZDA MOTORS CORP.

Fig 4: Locating Engine Identification Codes MPV 3.0L V6

Courtesy of MAZDA MOTORS CORP.

Fig 5: Locating Engine Identification Codes MX-3 1.6L 4-Cylinder

Courtesy of MAZDA MOTORS CORP.

Fig 6: Locating Engine Identification Codes MX-6 & 626 2.0L 4-Cylinder & Protege ES 1.8L 4-Cylinder

Courtesy of MAZDA MOTORS CORP.

Fig 7: Locating Engine Identification Codes Protege DX & LX 1.5L 4-Cylinder

Courtesy of MAZDA MOTORS CORP.

Fig 8: Locating Engine Identification Codes RX7 1.3L Rotary

Courtesy of MAZDA MOTORS CORP.

Fig 9: Locating Engine Identification Codes 929 3.0L V6

Courtesy of MAZDA MOTORS CORP.
