Code P0110: Intake Air Temperature Circuit Malfunction

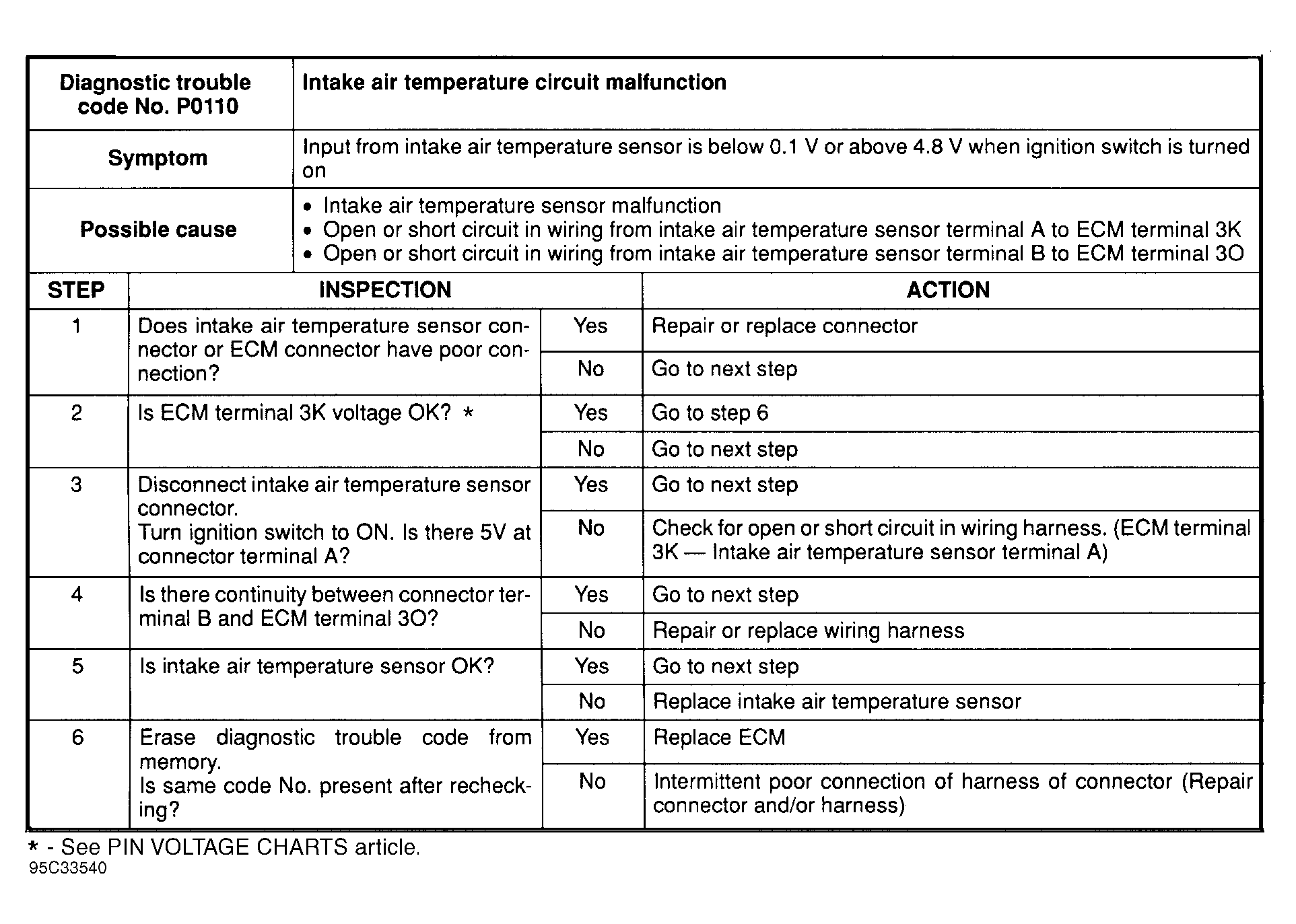

Fig 1: Trouble Code No. P0110 Intake Air Temperature Circuit Malfunction
