Engine Controls - Tests W/Codes - 2.5L
>>
Trouble Code Charts
>>
Code P1601: Communication Line - ECM-TCM
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Code P1601: Communication Line - ECM-TCM

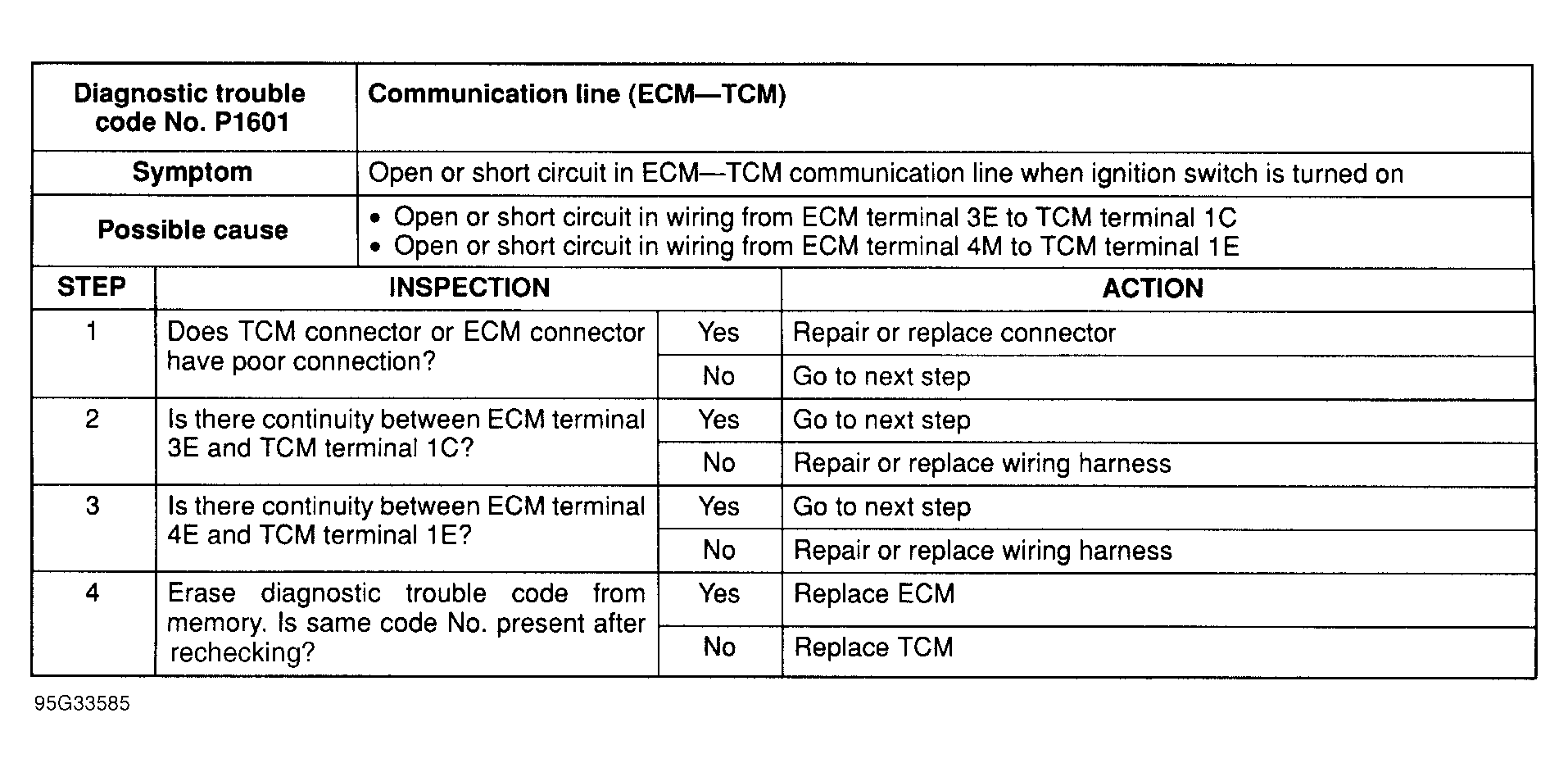

Fig 1: Trouble Code No. P1601 Communication Line - ECM-TCM
