Service Point Locations

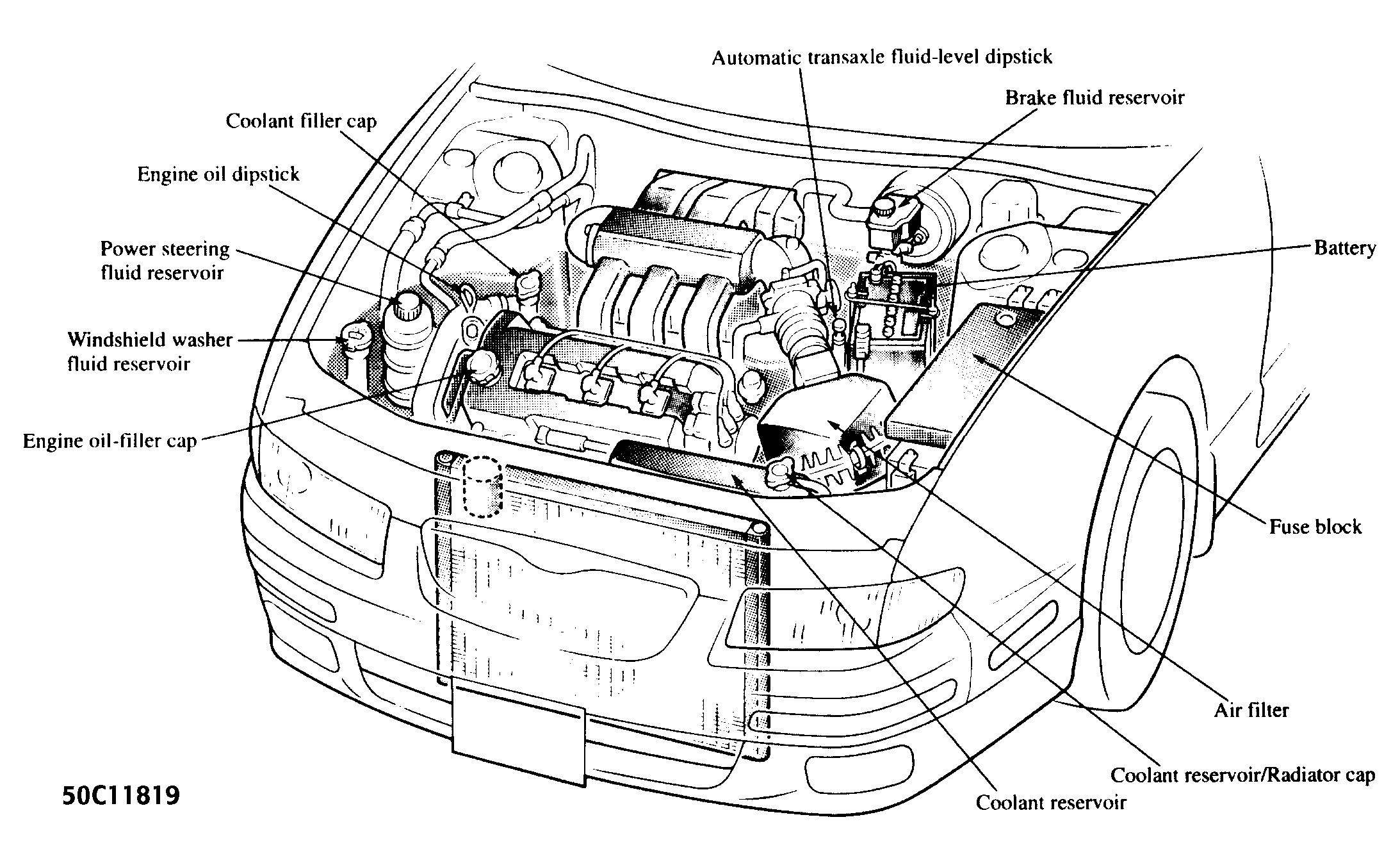

Fig 1: Service Point Locations (2.5L DOHC V6)

Courtesy of MAZDA.

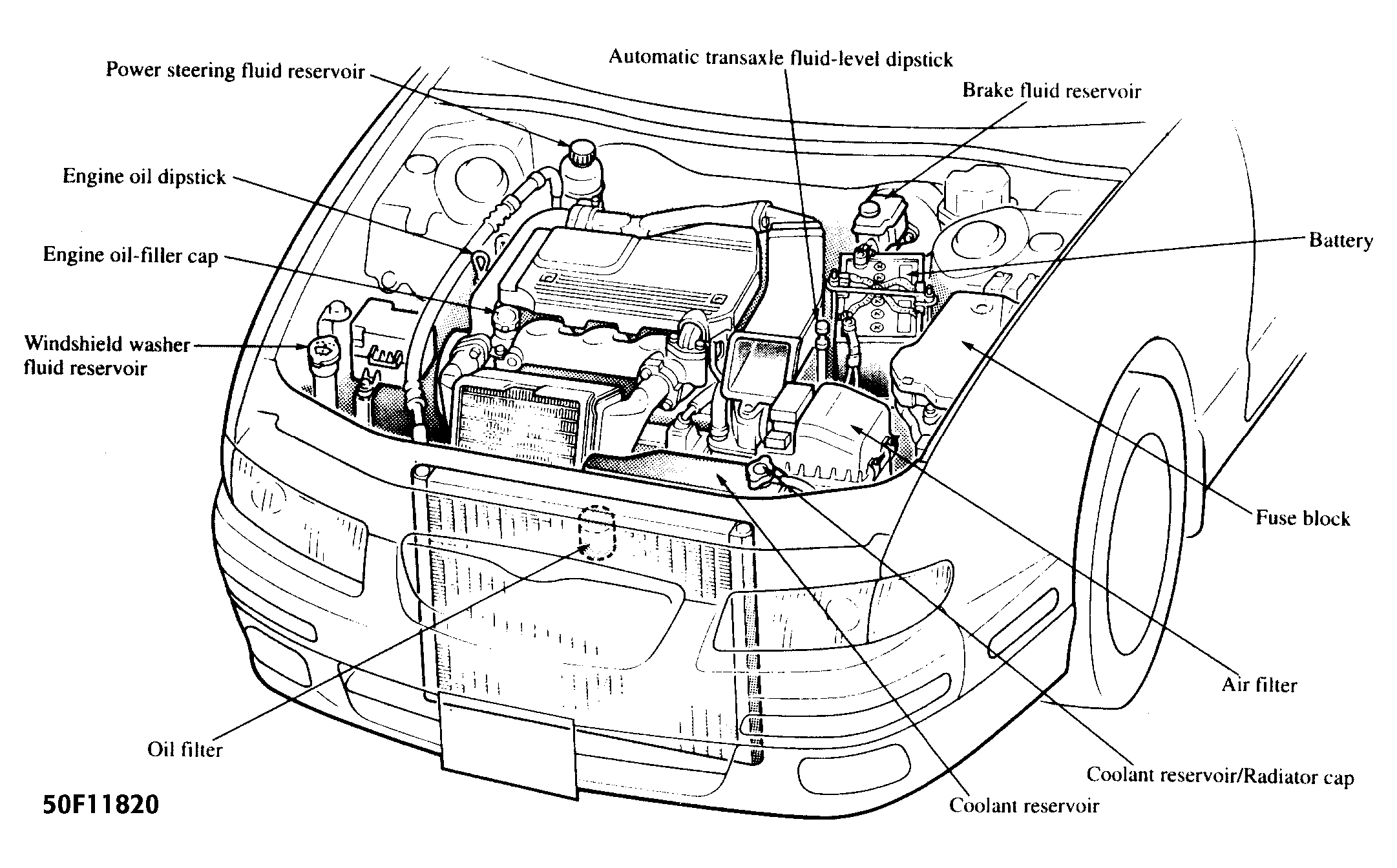

Fig 2: Service Point Locations (2.3L Miller Cycle V6

Courtesy of MAZDA.

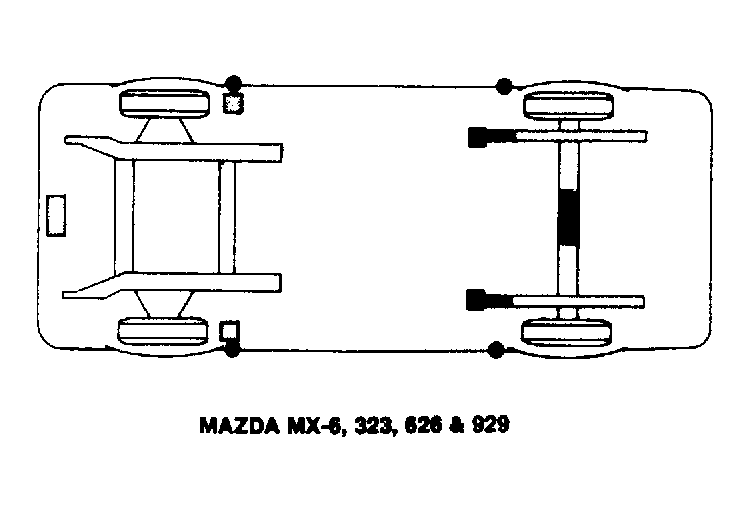

Fig 3: Lift Point Locations

Courtesy of MAZDA MOTOR OF AMERICA, INC.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article.
