Electrical Load System

CPU acts as an electrical load sensor. Remove CPU from right side kick panel above ECU. Check voltage at terminals of CPU connector. See CPU UNIT VOLTAGE CHART. See Fig 1 . If voltages are incorrect, check appropriate circuit. If circuits are okay but voltages are still incorrect, replace CPU.

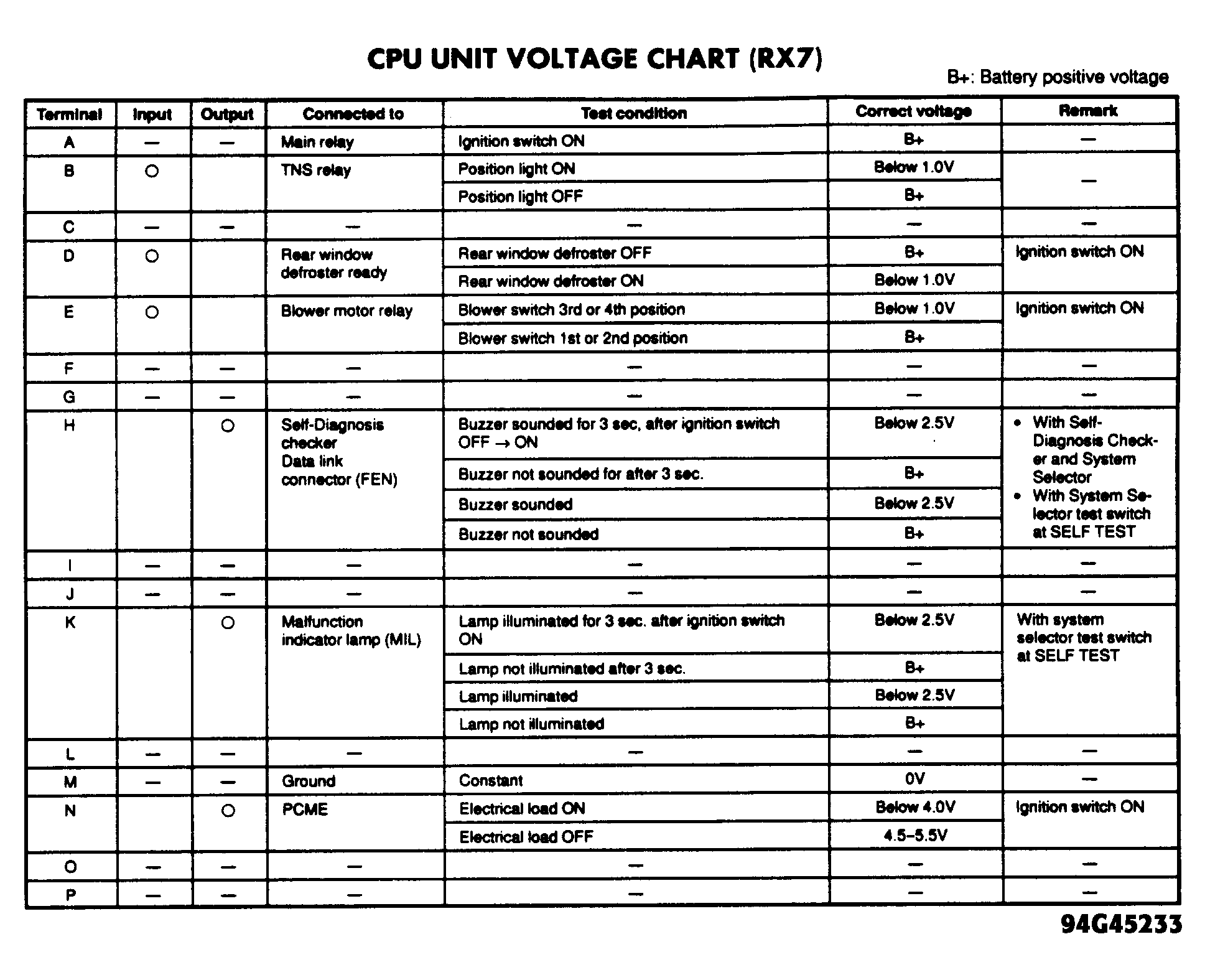

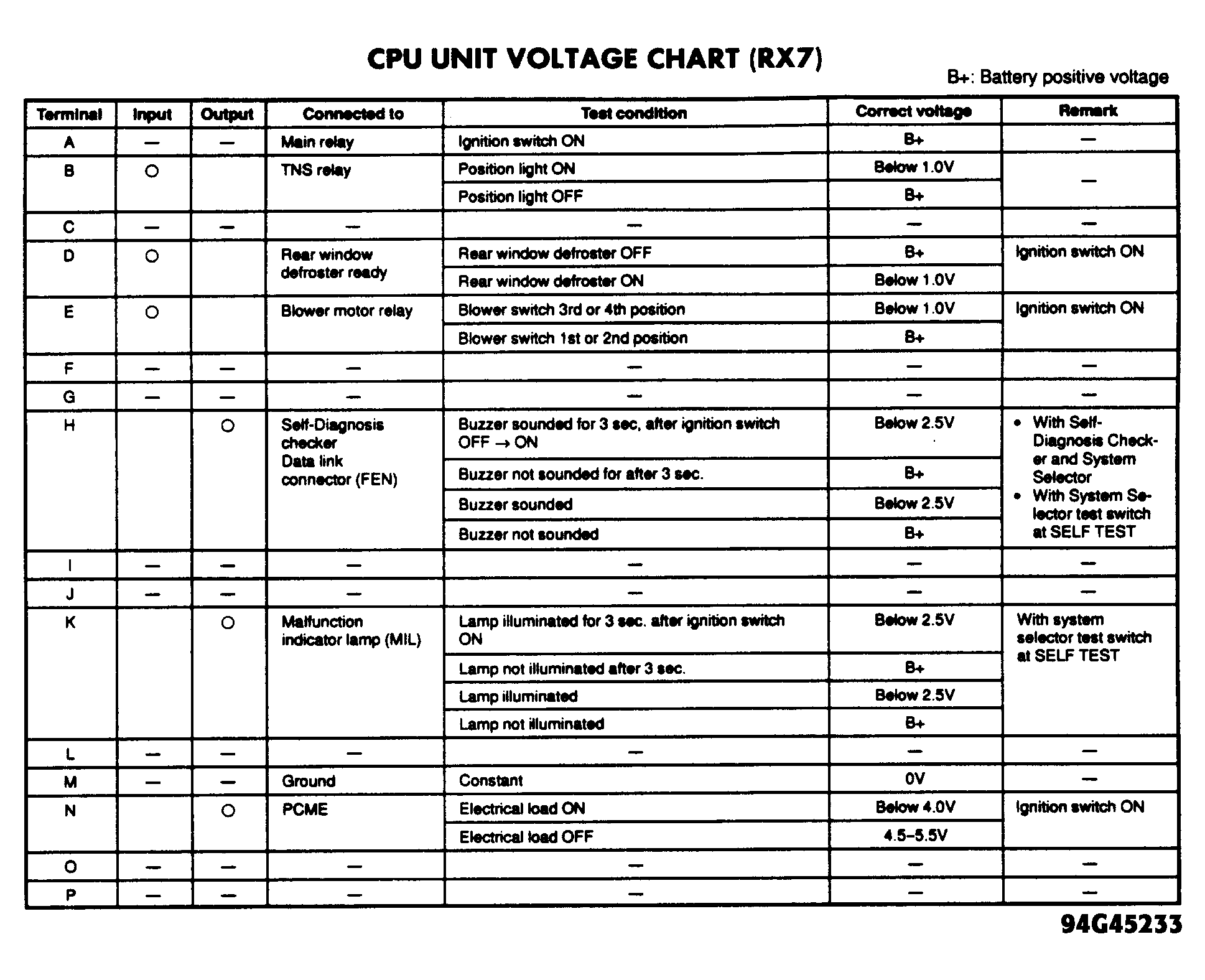

Fig 1: Electrical Load System Pin Voltage Chart

Courtesy of MAZDA MOTORS CORP.
