Transmission Range Switch (A/T)

Disconnect inhibitor switch electrical connector. Connect ohmmeter to indicated switch terminals. See Fig 1 . Continuity should be present with gearshift in Park and Neutral positions. Continuity should not exist in any other gear positions. Replace switch as necessary.

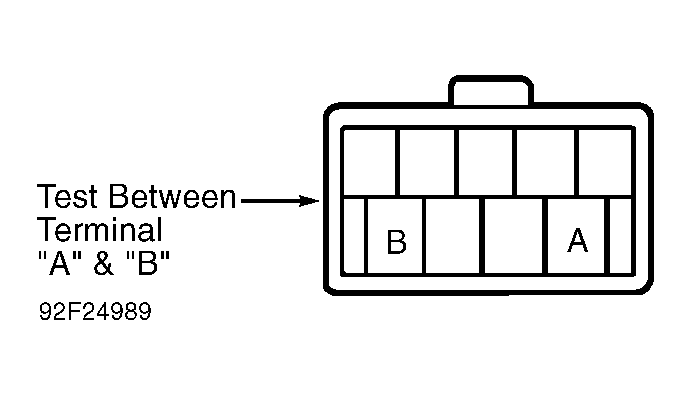

Fig 1: Testing Transmission Range Switch
G92F24989Courtesy of MAZDA MOTORS CORP.
