Code 11: Intake Air Temperature Sensor

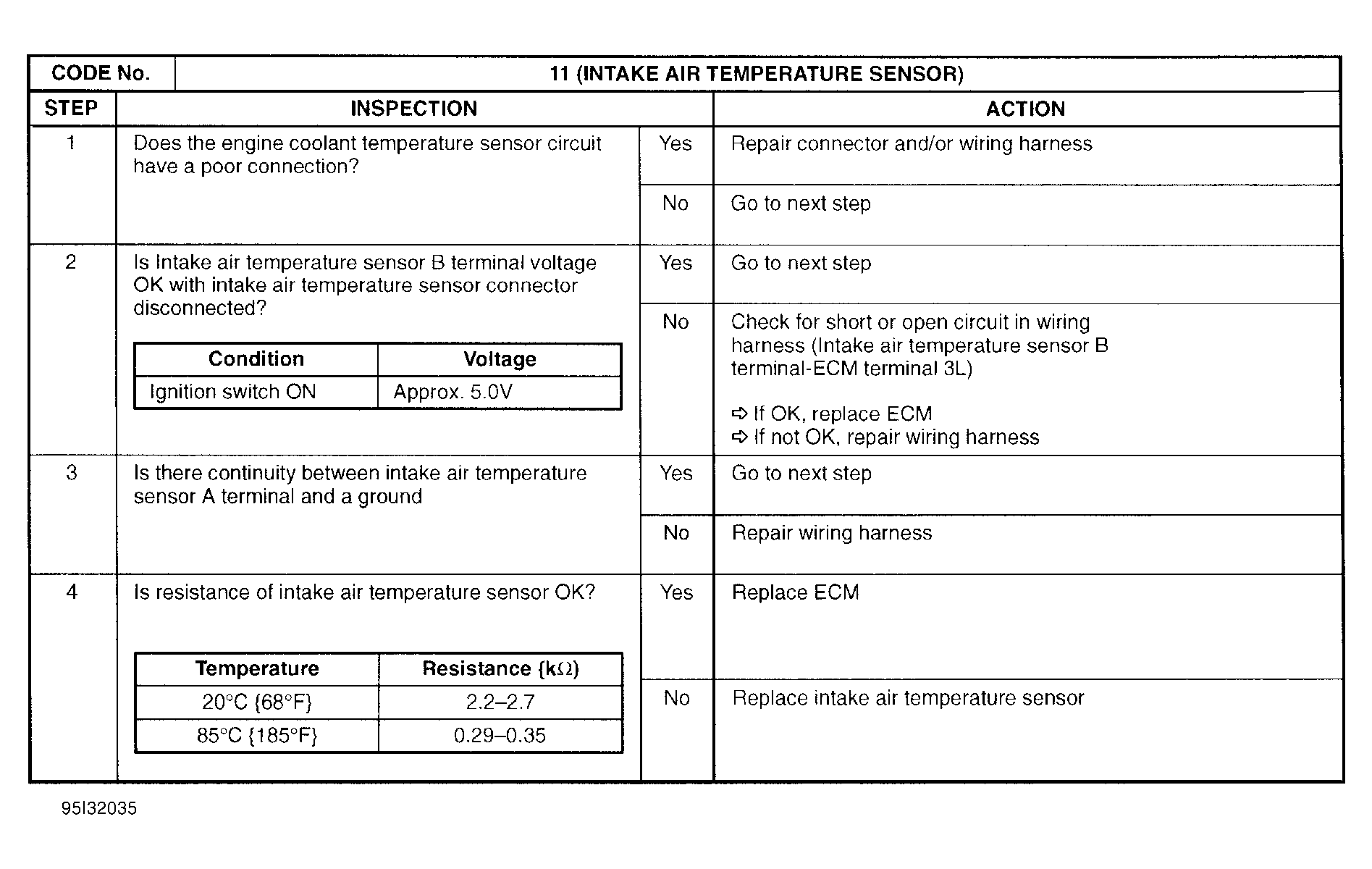

Fig 1: Trouble Code No. 11 Intake Air Temperature Sensor
G95I32035

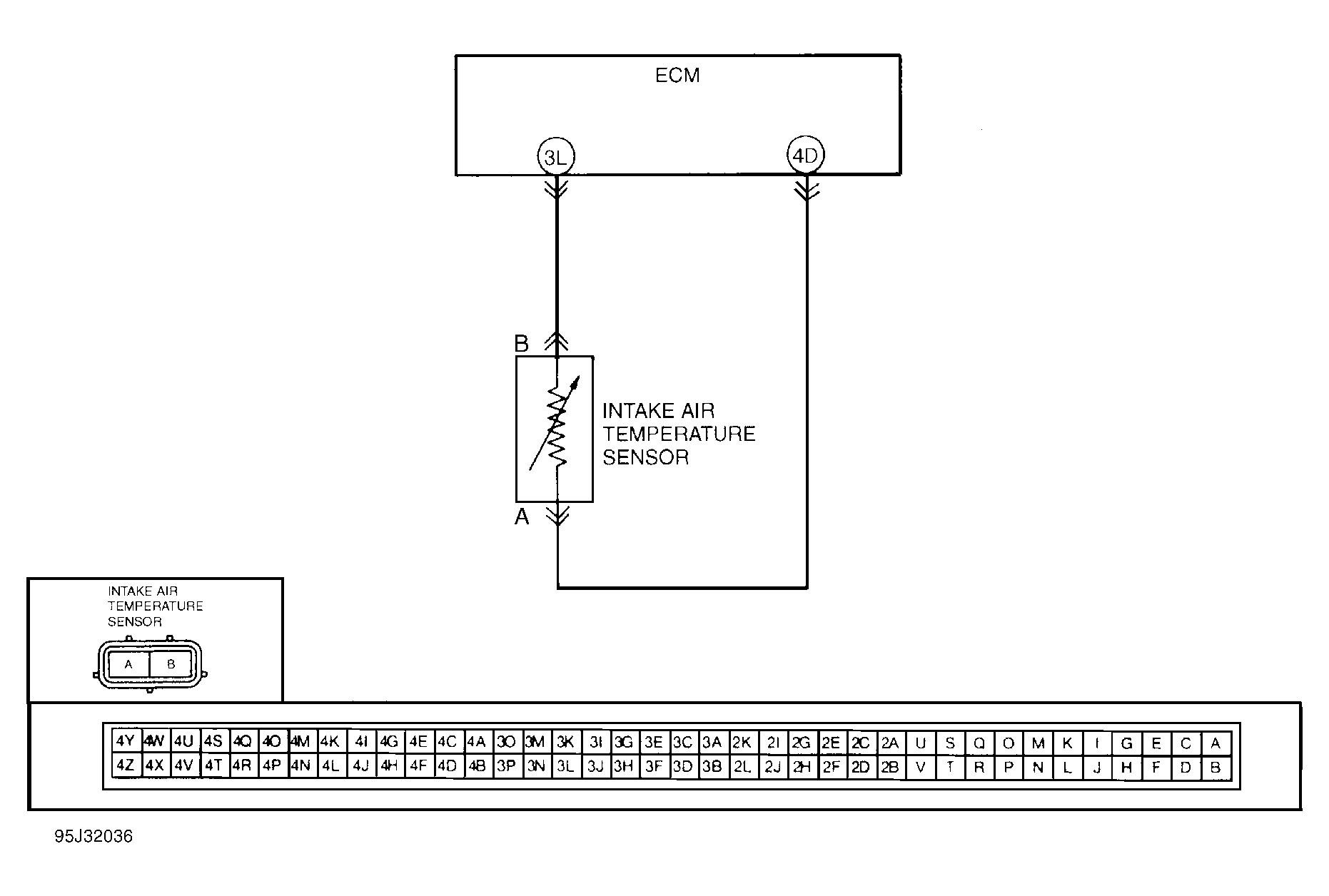

Fig 2: Trouble Code No. 11 Intake Air Temperature Sensor Circuit Diagram
G95J32036
