Code 13: Manifold Absolute Pressure Sensor

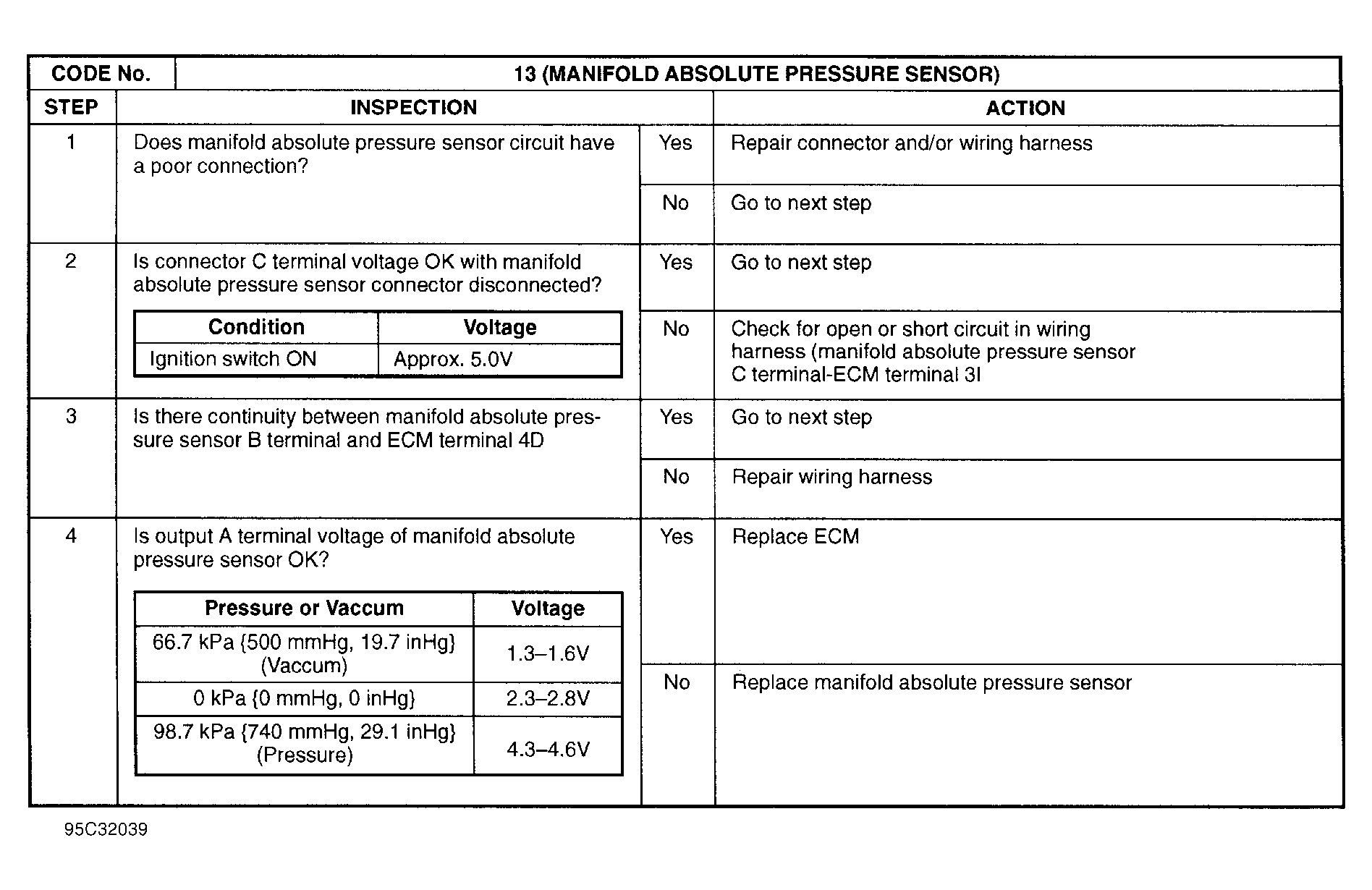

Fig 1: Trouble Code No. 13 Manifold Absolute Pressure Sensor

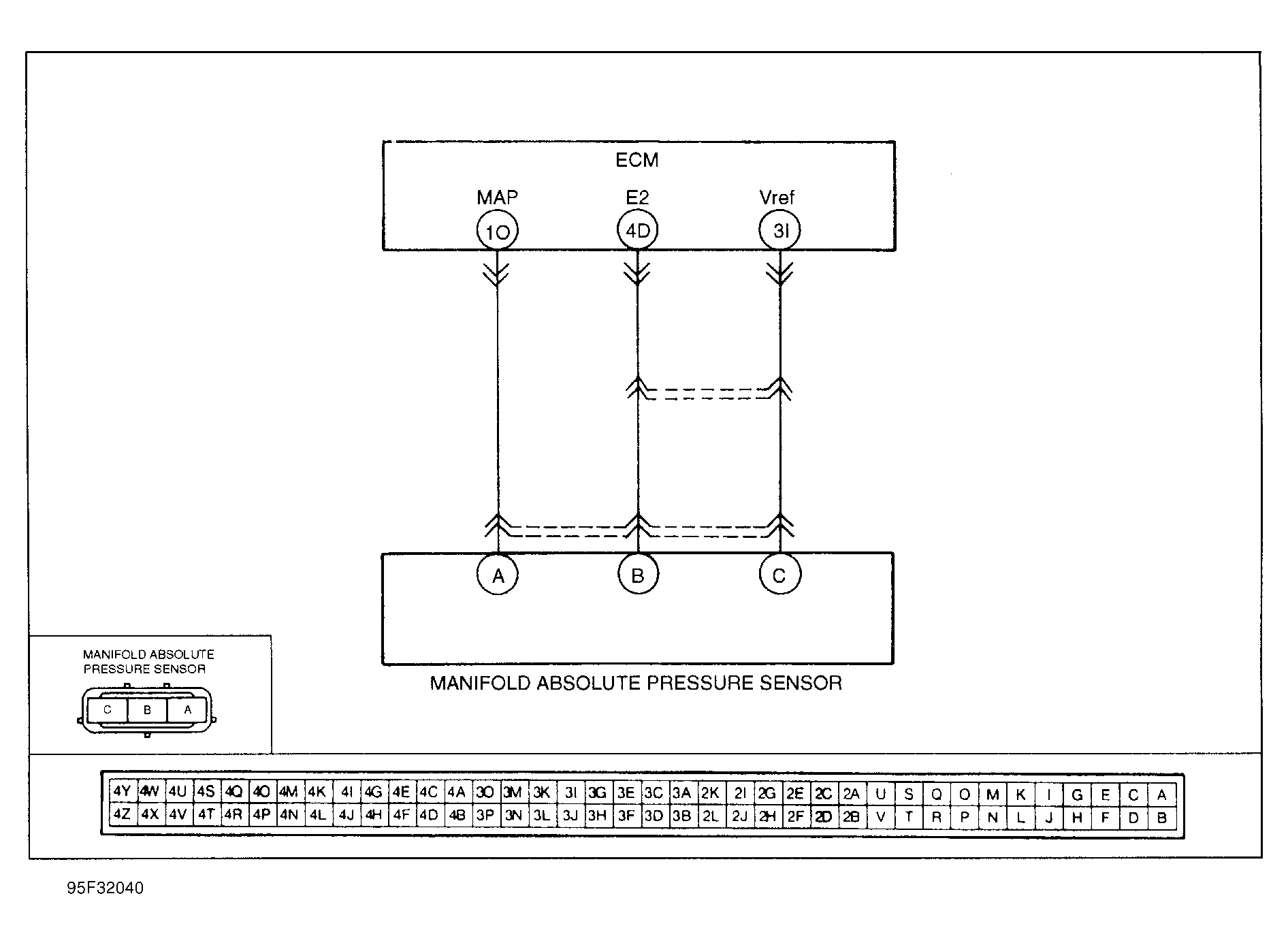

Fig 2: Trouble Code No. 13 Manifold Absolute Pressure Sensor Circuit Diagram
