Code 18: Throttle Position Sensor - Narrow Range

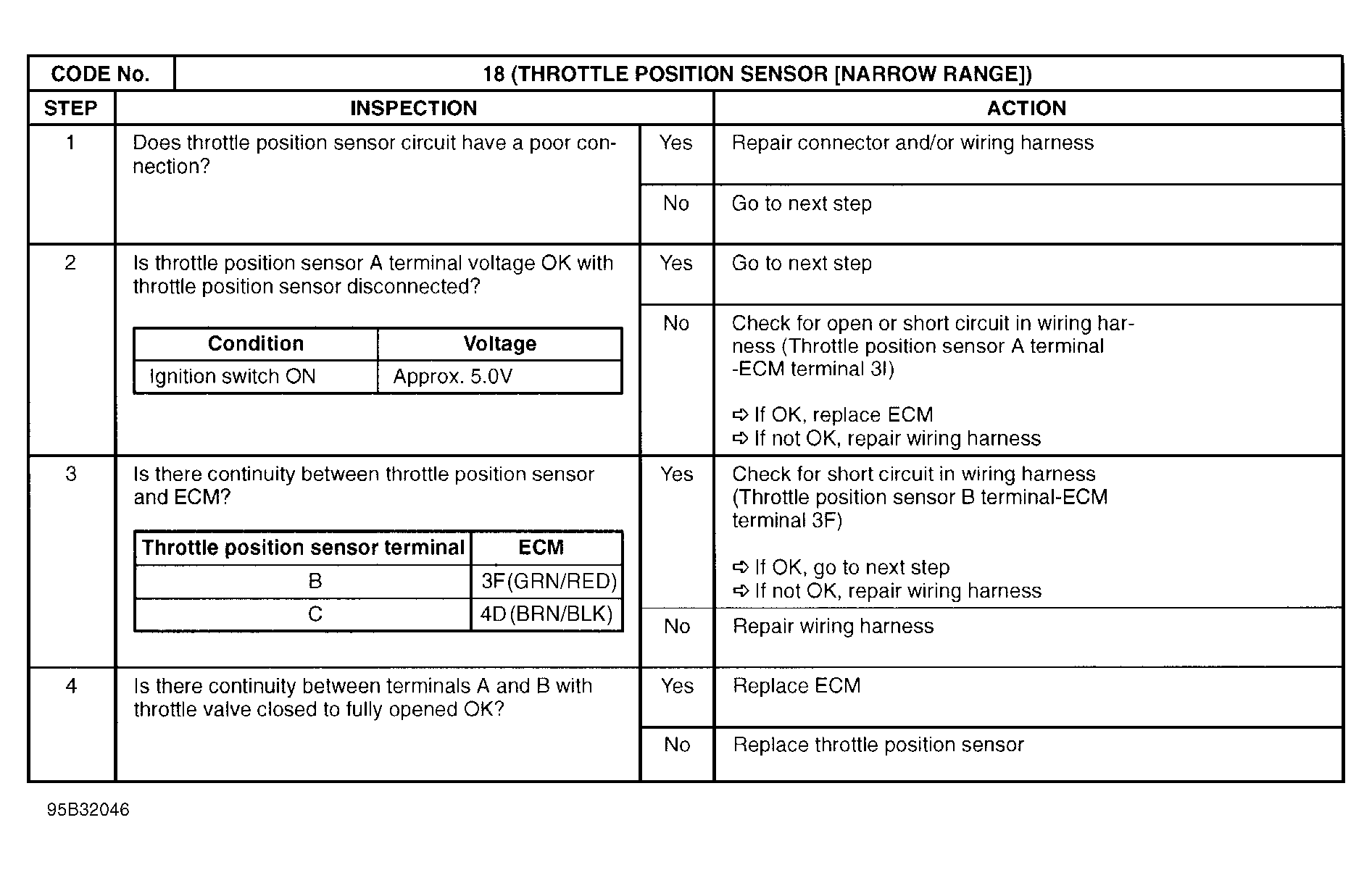

Fig 1: Trouble Code No. 18 Throttle Position Sensor - Narrow Range
G95B32046
Fig 2: Trouble Code No. 18 Throttle Position Sensor Circuit Diagram
G95B32038
