Code 23: Fuel THERMOSENSOR

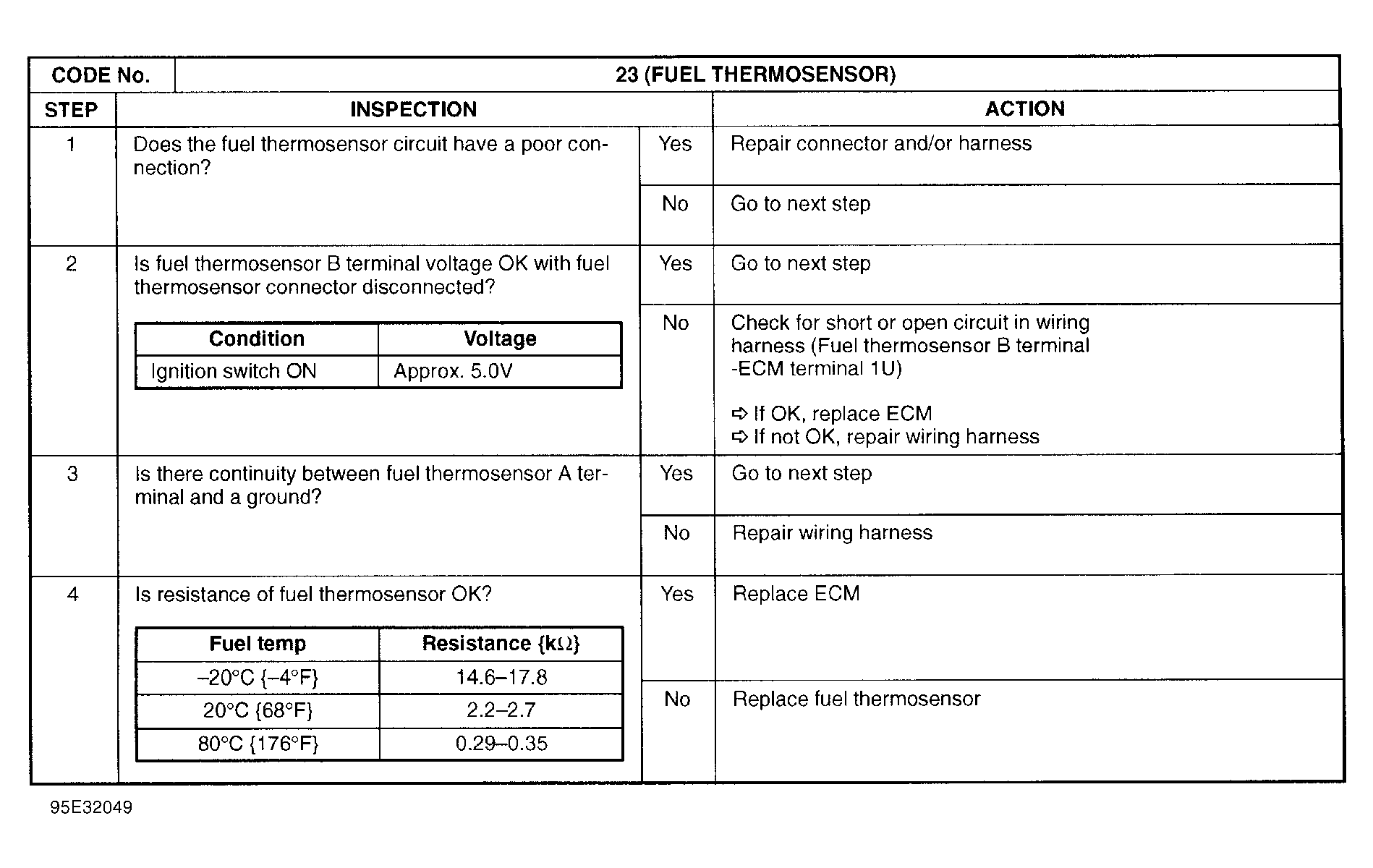

Fig 1: Trouble Code No. 23 Fuel Thermosensor

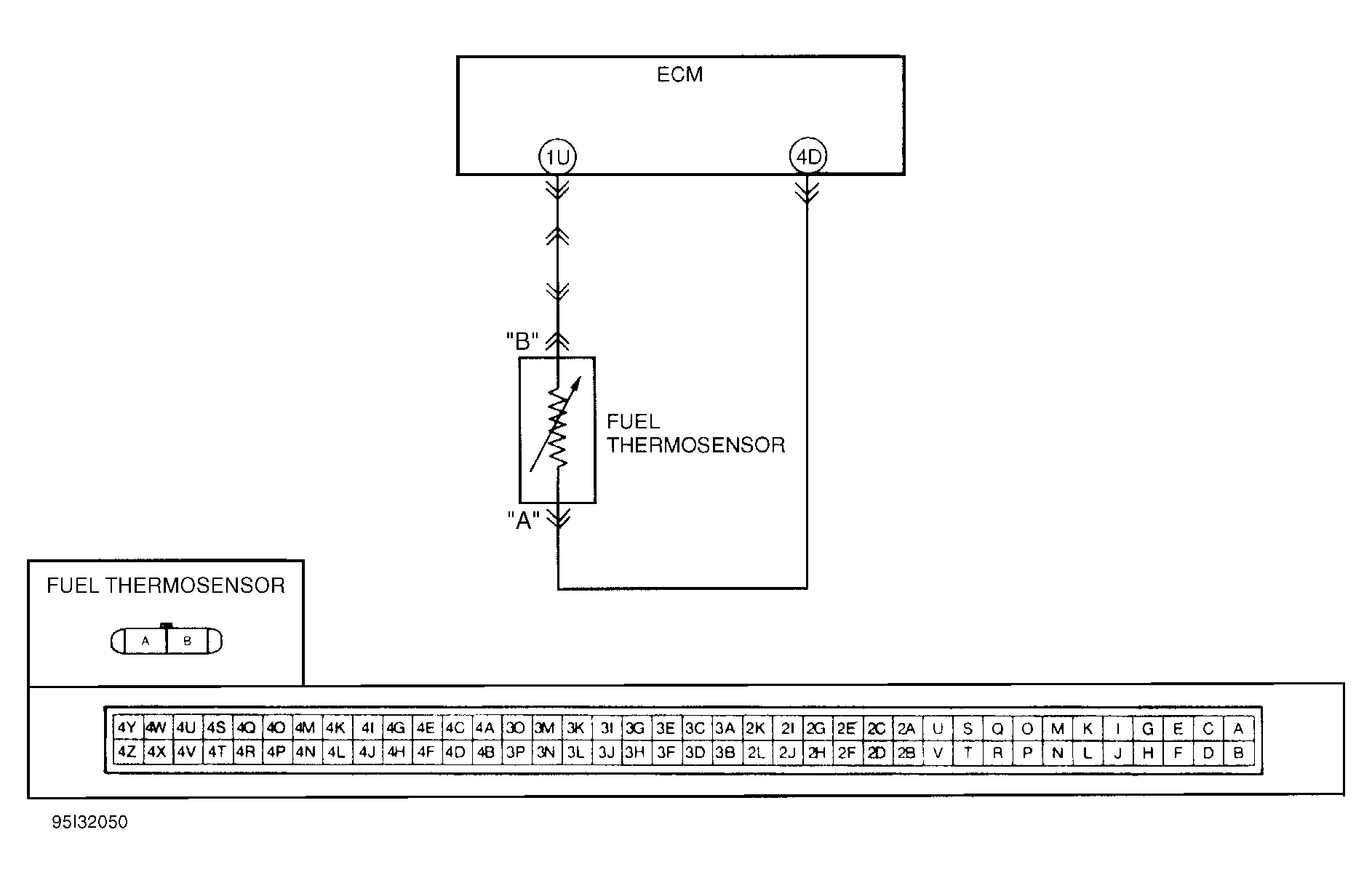

Fig 2: Trouble Code No. 23 Fuel Thermosensor Circuit Diagram
