Code 37: Metering Oil Pump

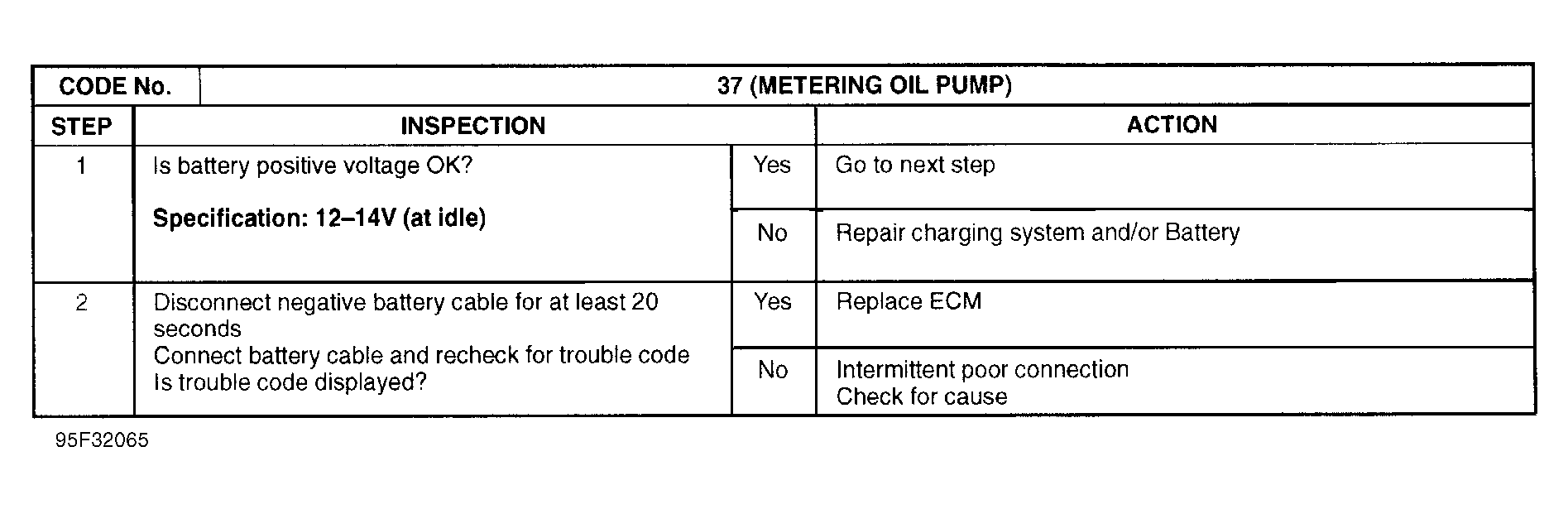

Fig 1: Trouble Code No. 37 Metering Oil Pump
Fig 2: Trouble Code No. 37 Metering Oil Pump Circuit Diagram
