Code 54: Air Pump Relay

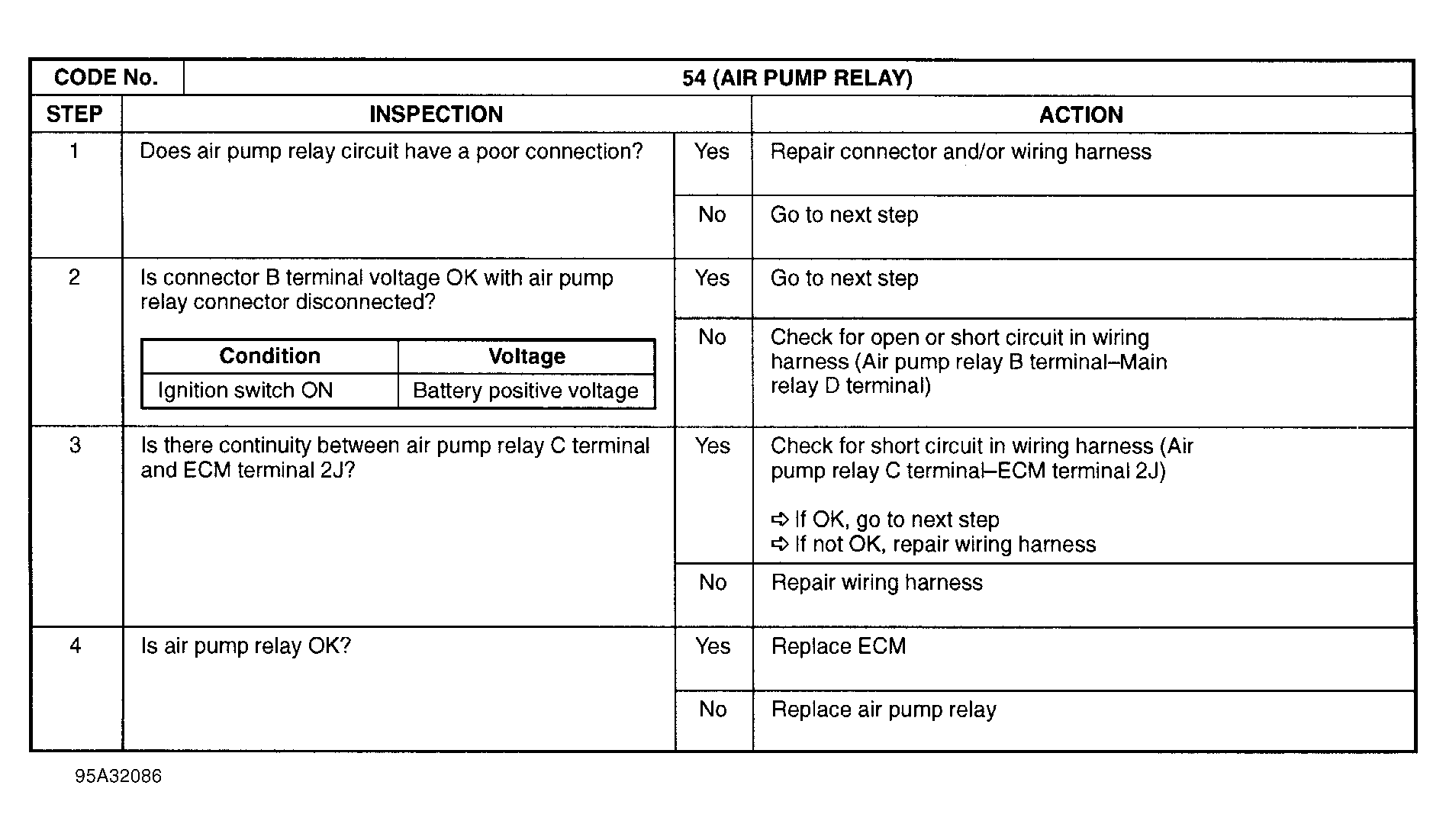

Fig 1: Trouble Code No. 54 Air Pump Relay

G95A32086

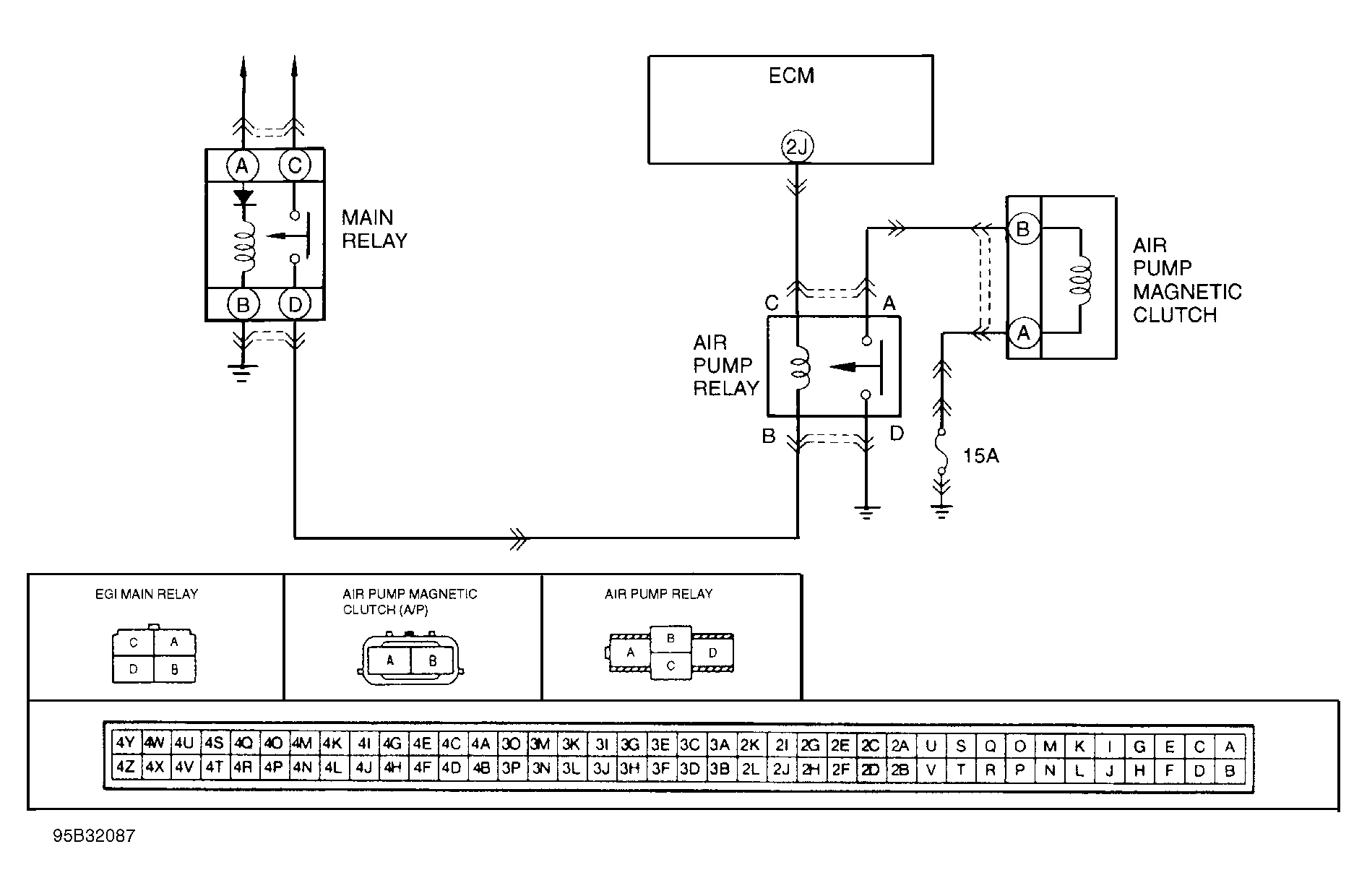

Fig 2: Trouble Code No. 54 Air Pump Relay Circuit Diagram

G95B32087
