Code 71: Fuel Injector - Front Secondary

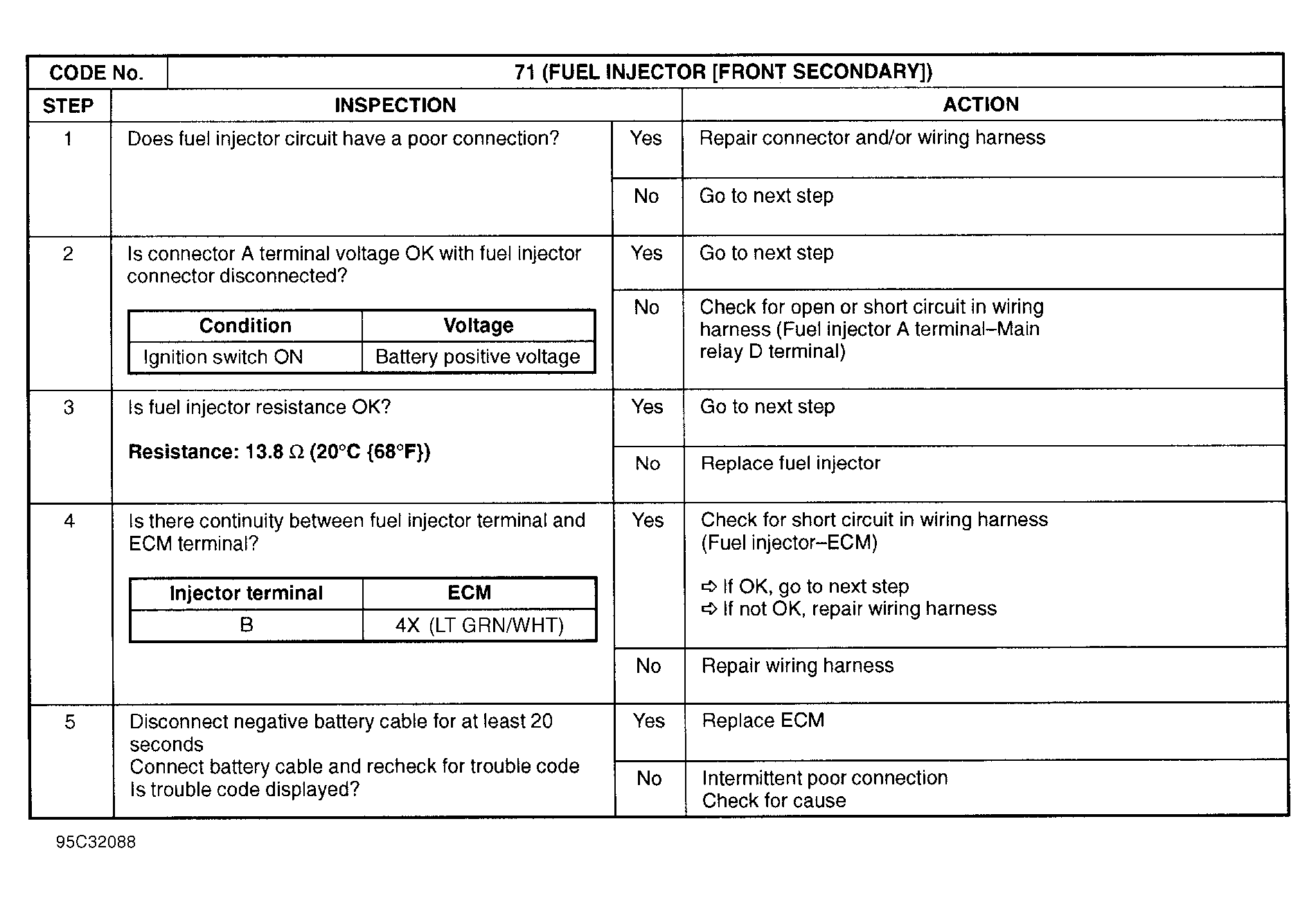

Fig 1: Trouble Code No. 71 Fuel Injector - Front Secondary
G95C32088

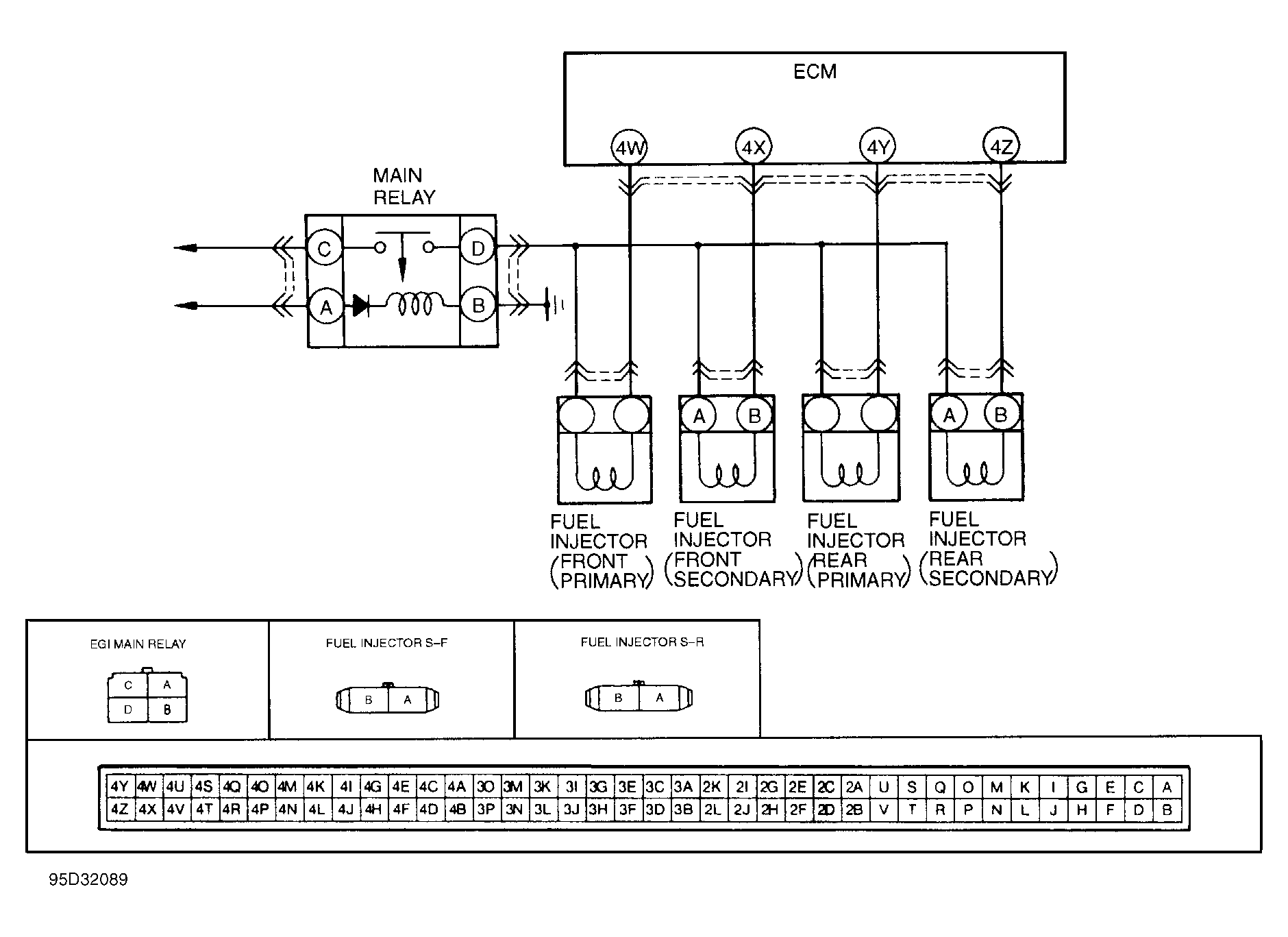

Fig 2: Trouble Code No. 71 Fuel Injector Circuit Diagram
G95D32089
