Home >> Mazda >> 1995 >> RX-7 Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Charts >> Code 77: Torque Reduced Signal

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Code 77: Torque Reduced Signal

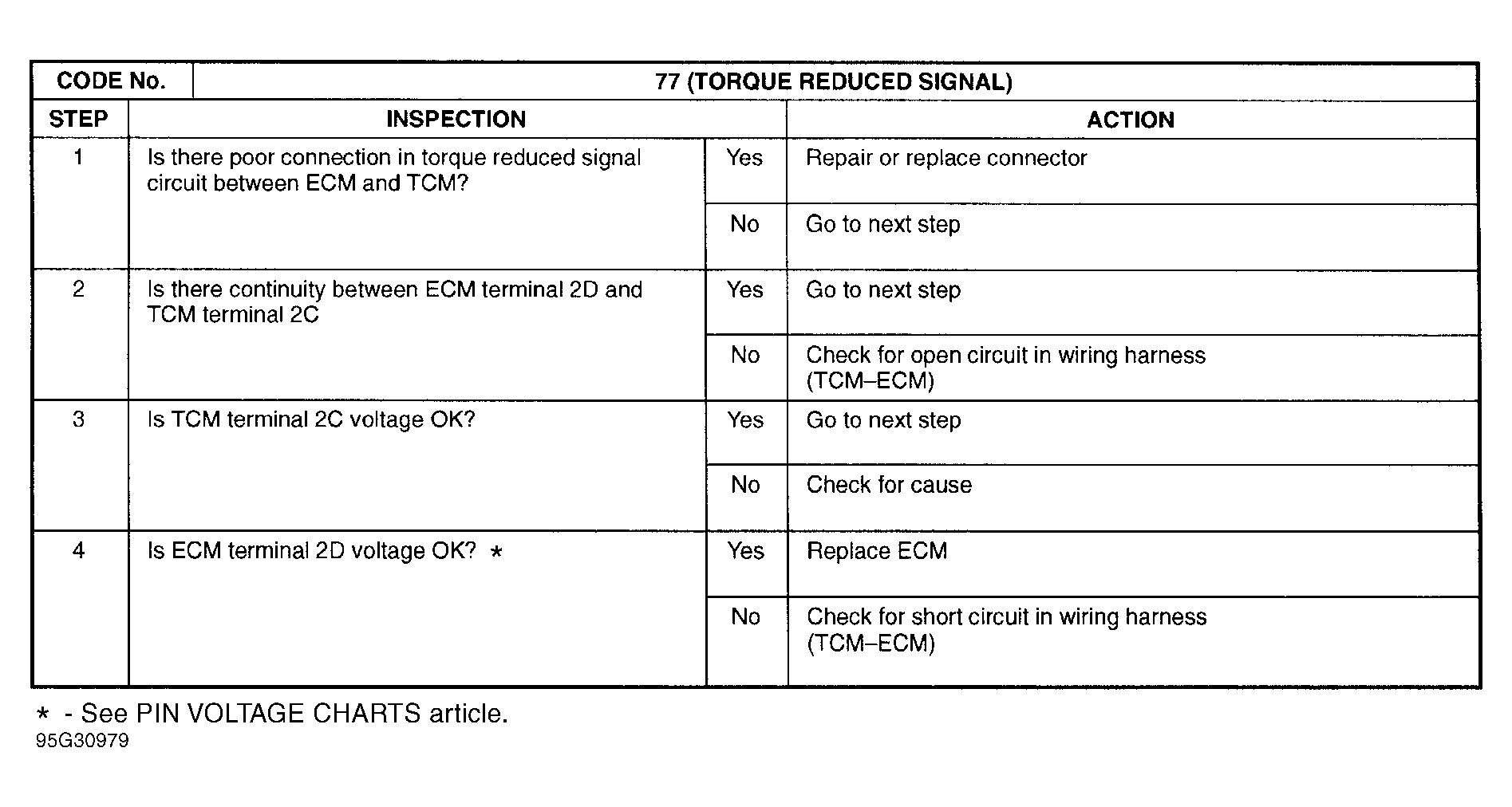

Fig 1: Trouble Code No. 77 Torque Reduced Signal

G95G30979

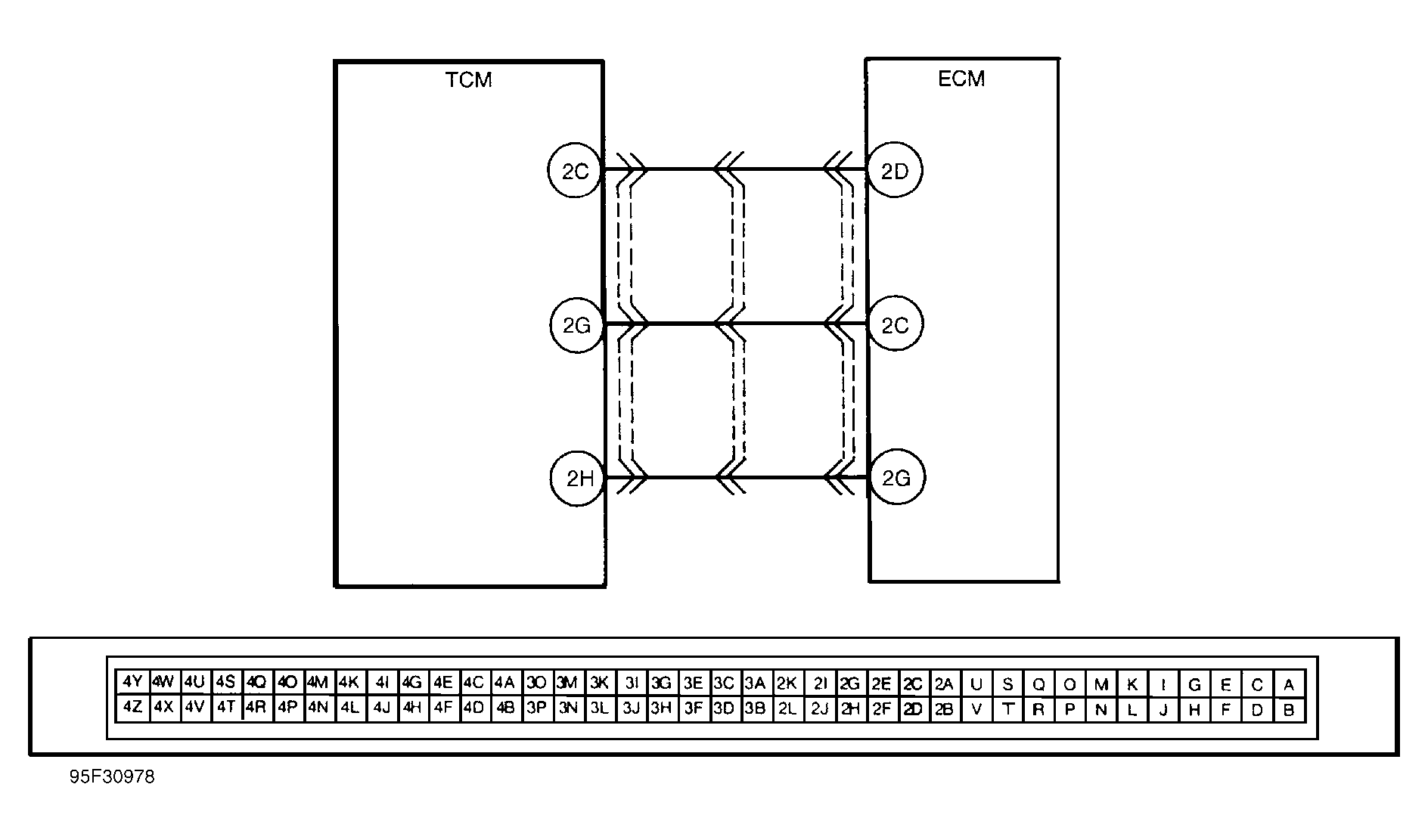

Fig 2: Trouble Code No. 77 TCM Circuit Diagram

G95F30978
