Trouble Code Identification Charts: Notes

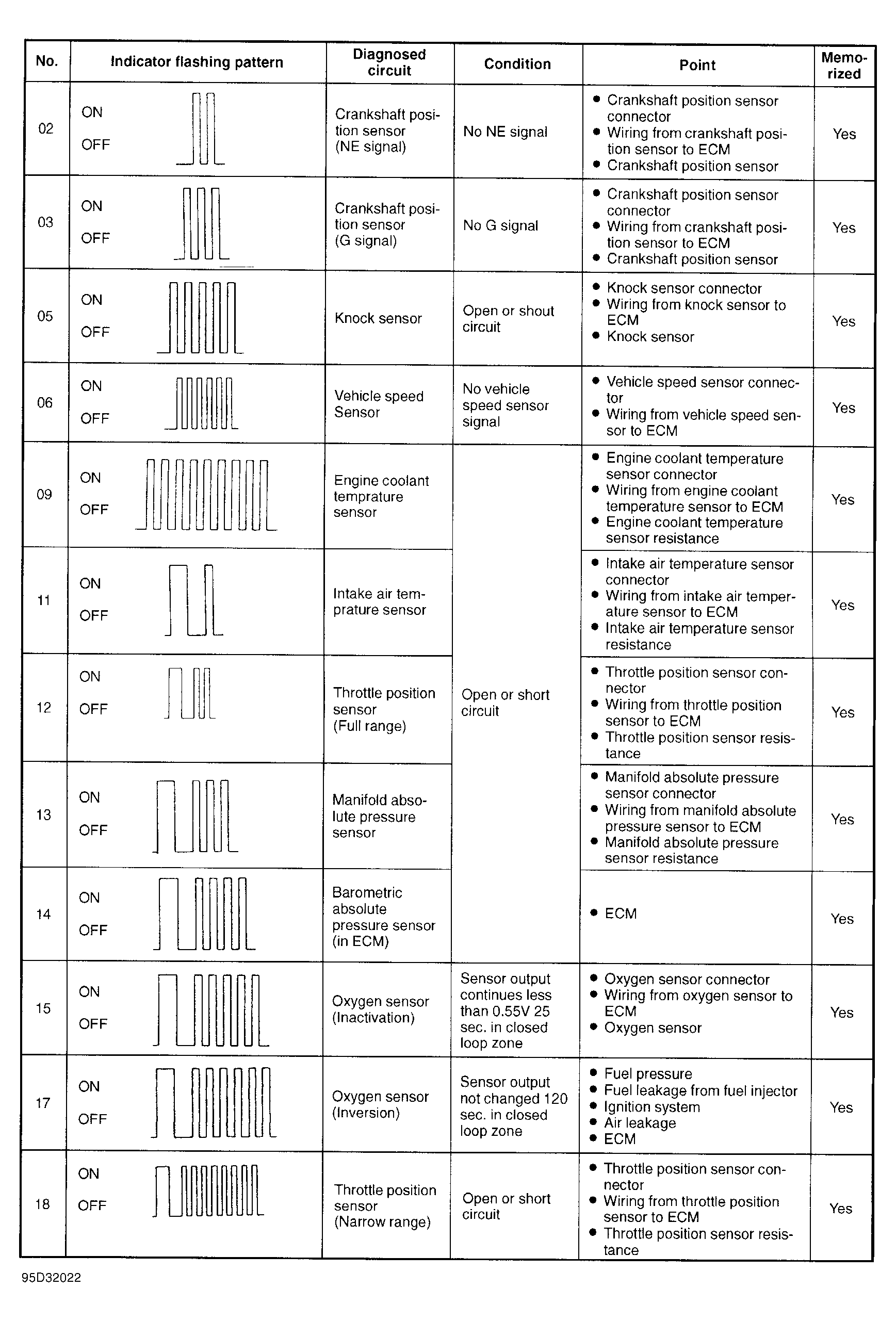

Fig 1: Diagnostic Trouble Code Definition Chart (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

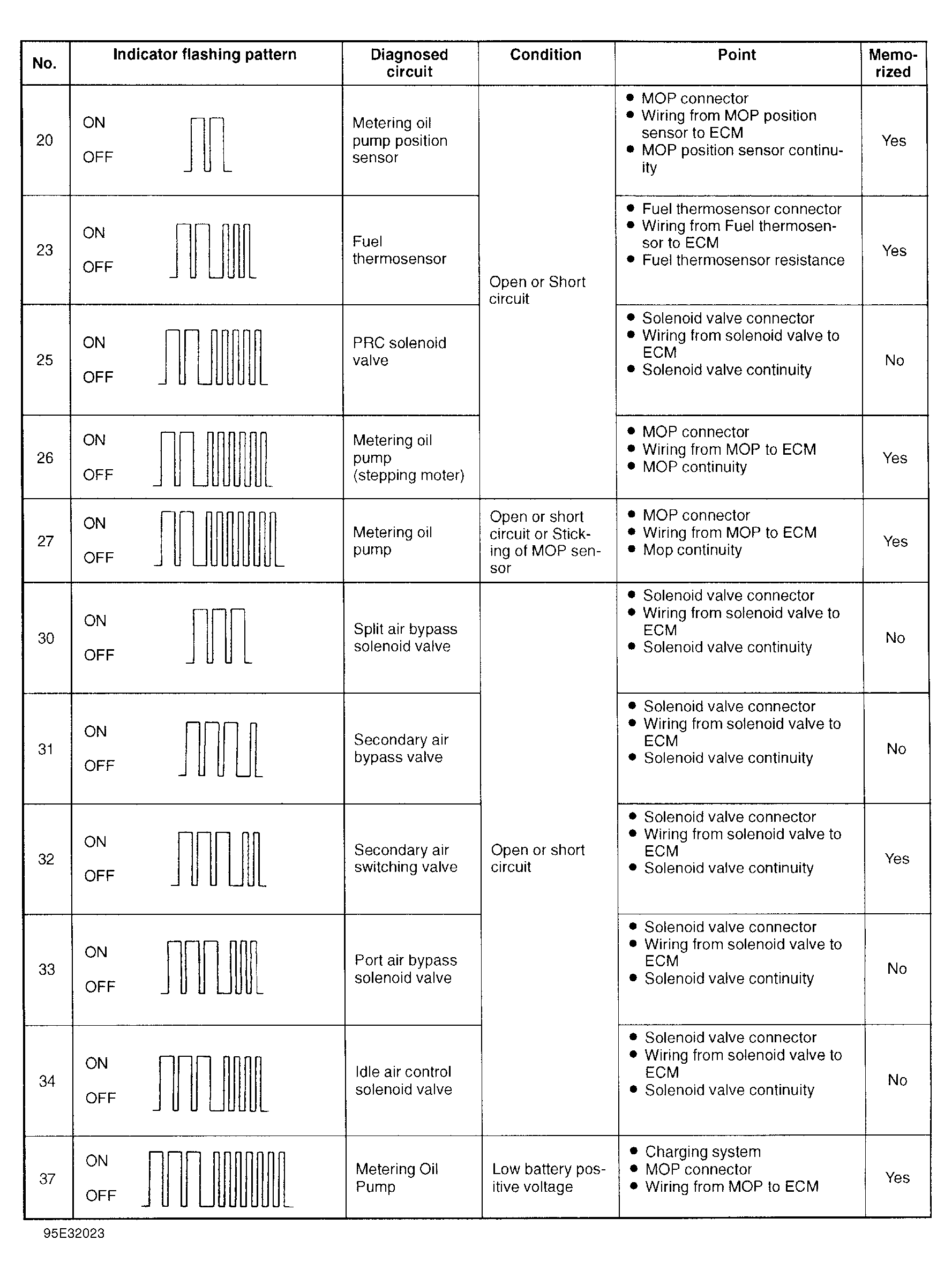

Fig 2: Diagnostic Trouble Code Definition Chart (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

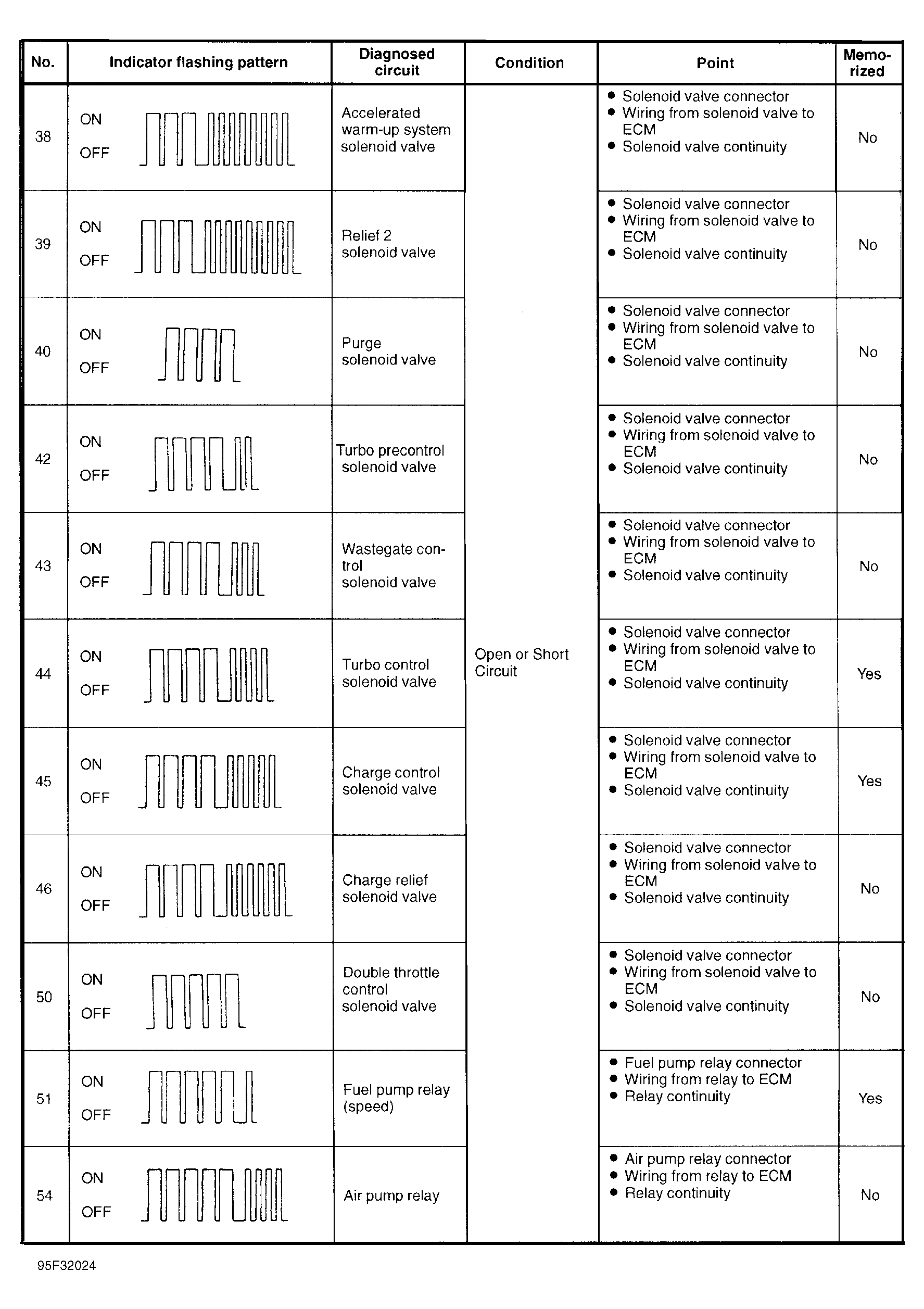

Fig 3: Diagnostic Trouble Code Definition Chart (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

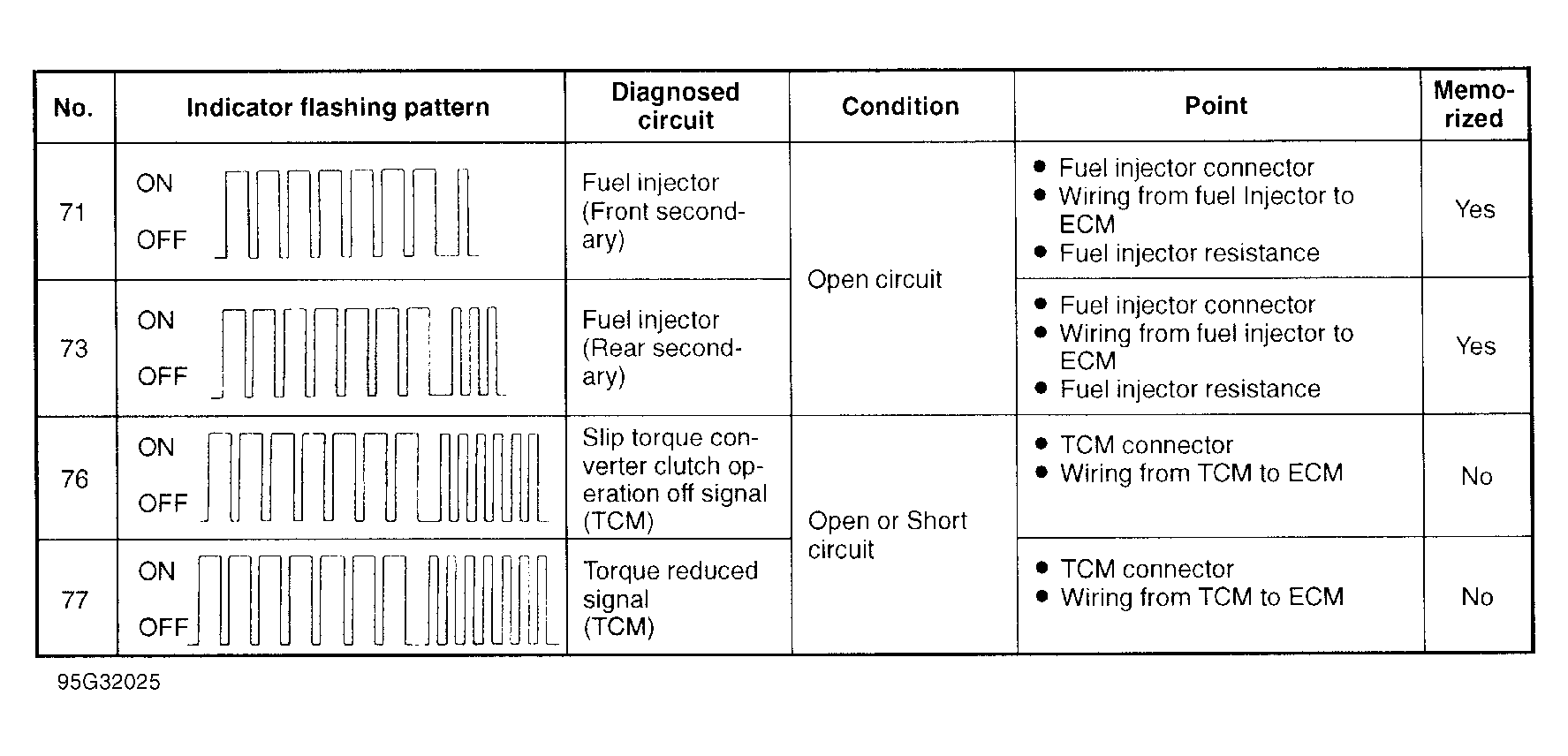

Fig 4: Diagnostic Trouble Code Definition Chart (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
