Steering Column: Reassembly

To reassemble, reverse disassembly procedure. Grease steering shaft, bushings and bearings. Use NEW shear screws.

STEERING SHAFT DIMENSIONS ⁽¹⁾

Application

Length - In. (mm)

RX7

30.69-30.76 (779.5-781.5)

⁽¹⁾	For measuring points, see Fig 1 .

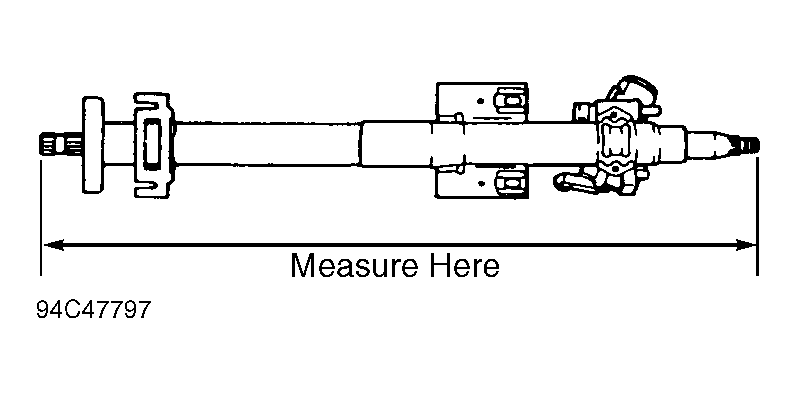

Fig 1: Measuring Steering Shaft Dimensions

Courtesy of MAZDA MOTORS CORP.
