Code 3: Crankshaft Position Sensor - G Sensor

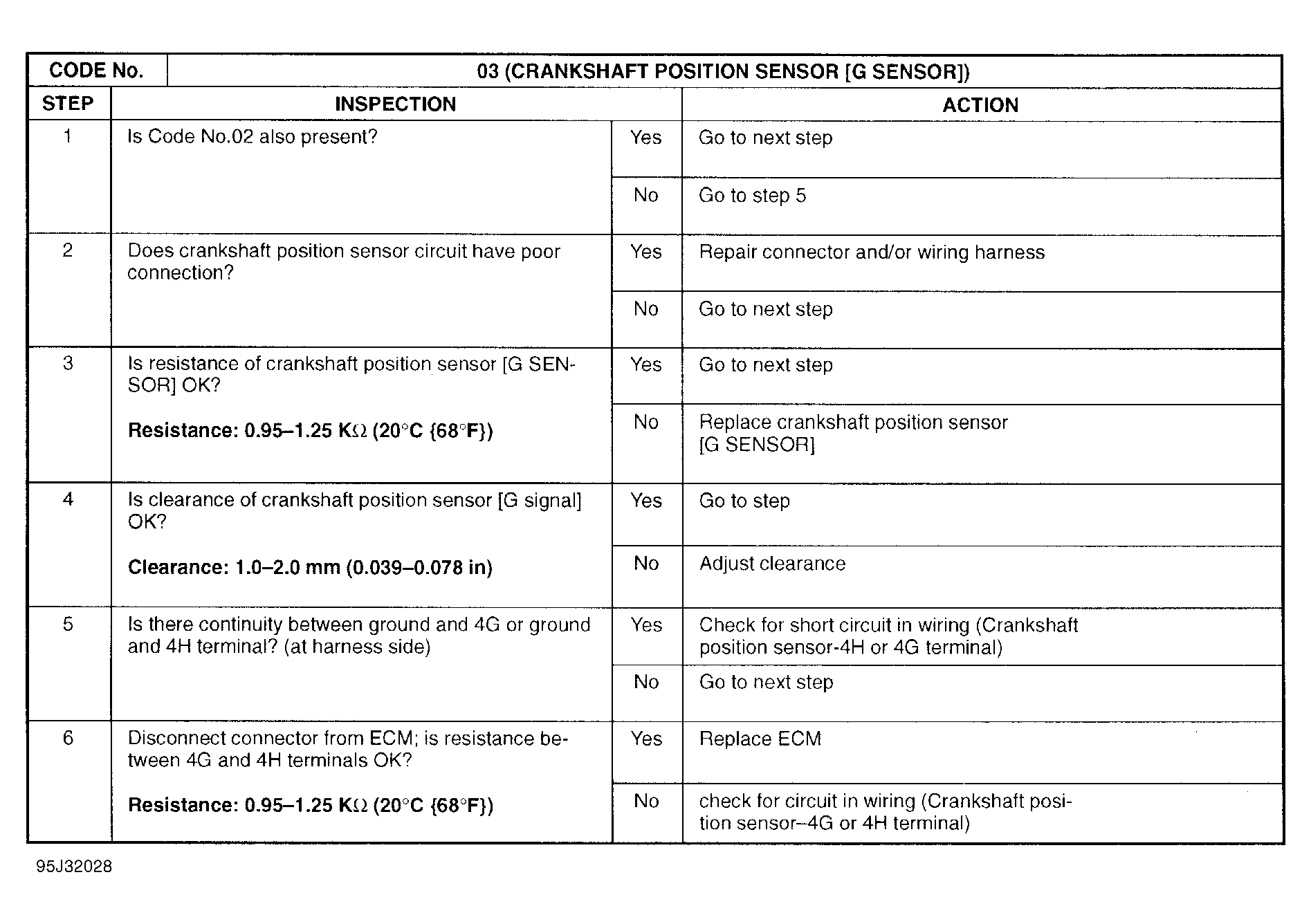

Fig 1: Trouble Code No. 3 Crankshaft Position Sensor - G Sensor
G95I32027
Fig 2: Trouble Code No. 3 Crankshaft Position Sensor Circuit Diagram
G95J32028
