Code 76: Slip Torque Converter Clutch Operation Off Signal

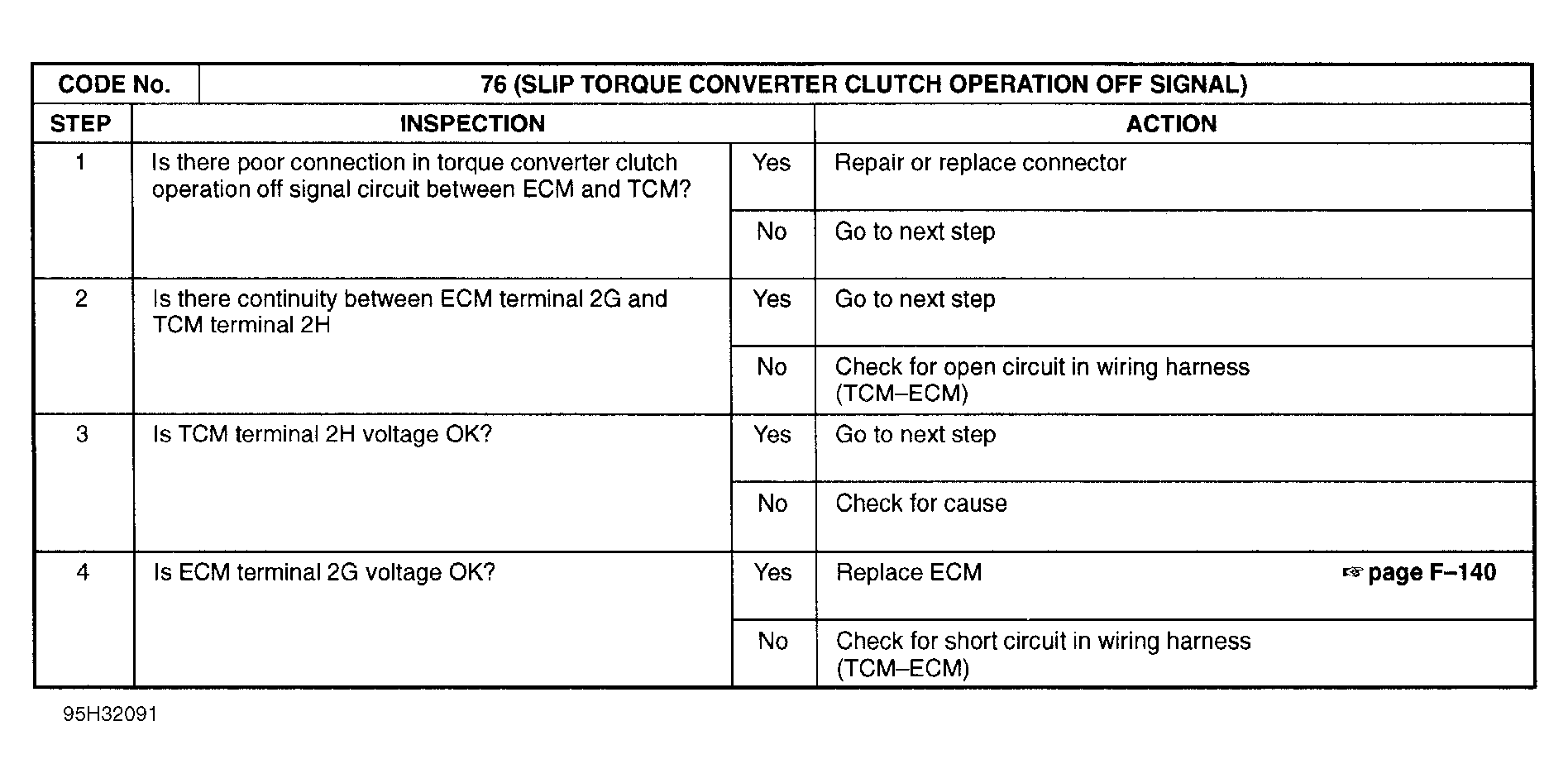

Fig 1: Trouble Code No. 76 Slip Torque Converter Clutch Operation Off Signal
G95H32091
Fig 2: Trouble Code No. 76 TCM Circuit Diagram
G95F30978
