Pin Voltage Charts

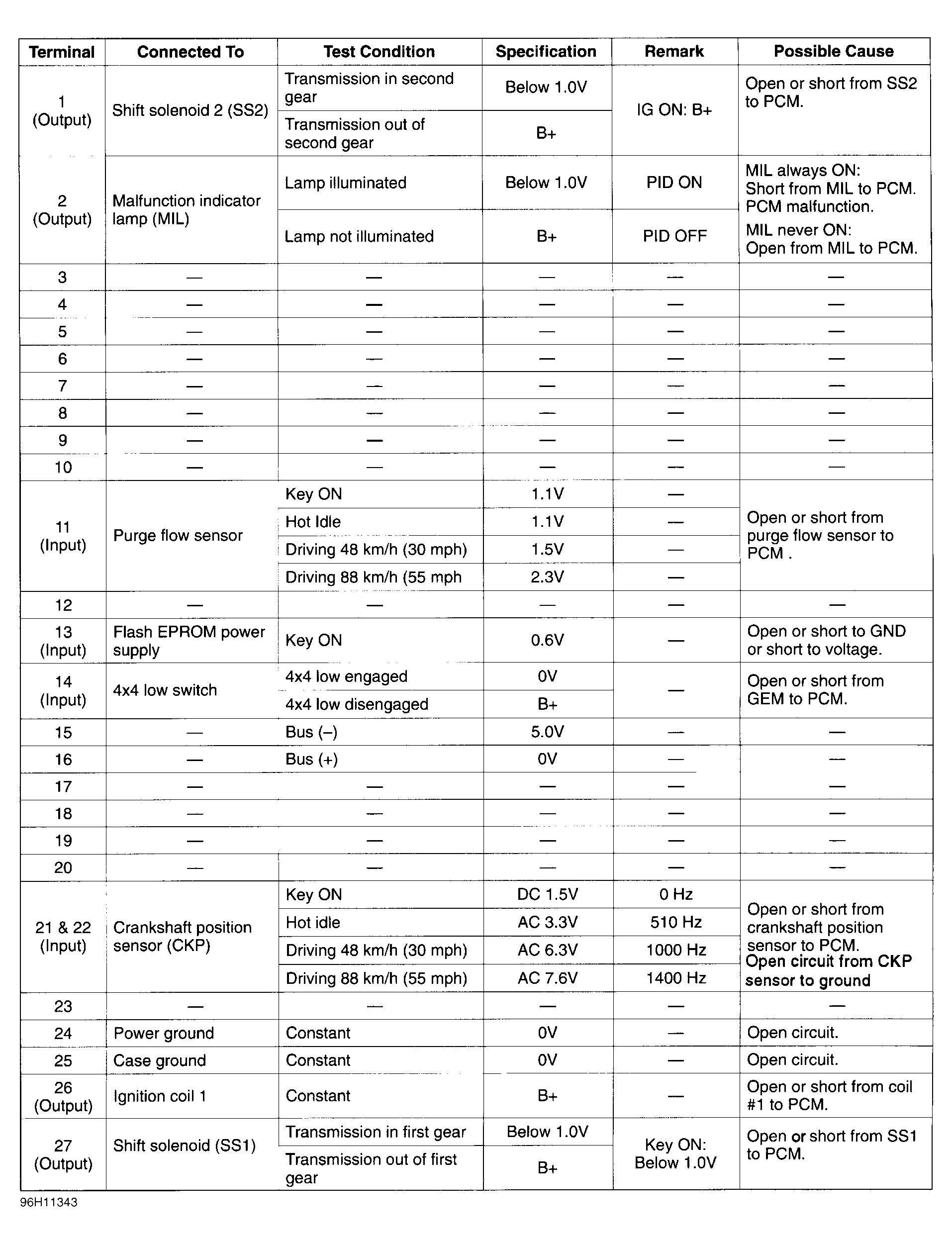

Fig 1: PCM Pin Voltage Chart (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

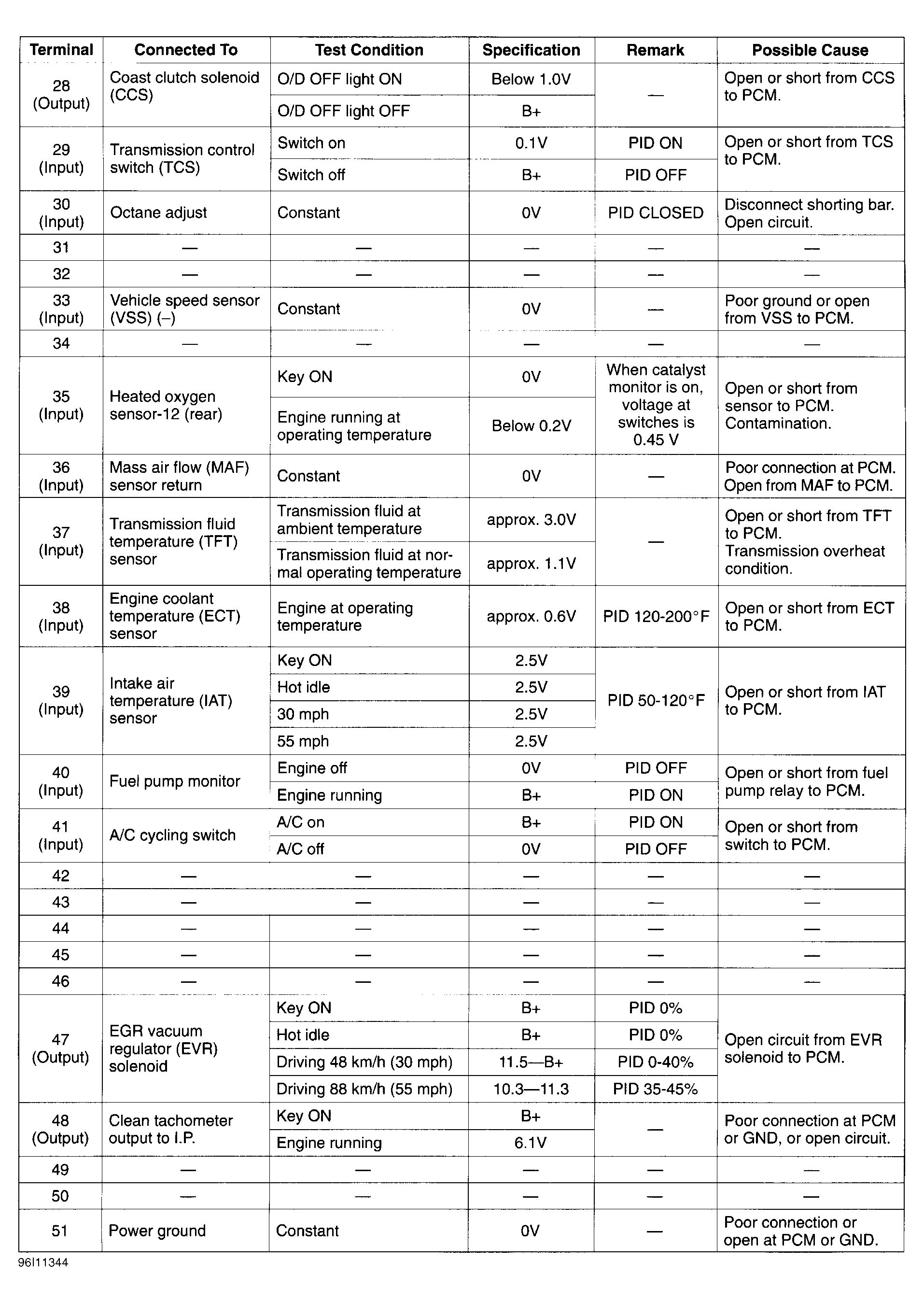

Fig 2: PCM Pin Voltage Chart (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

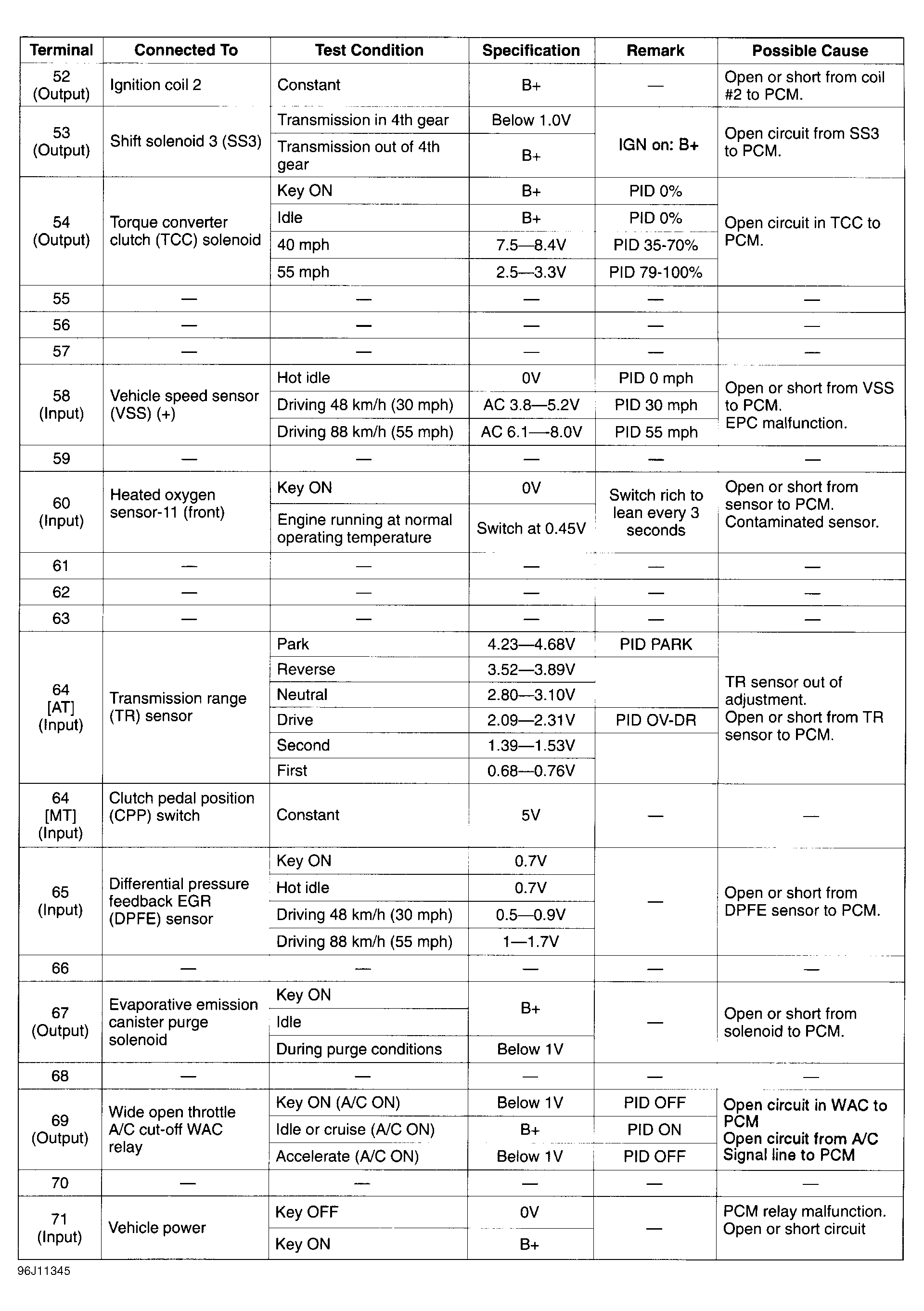

Fig 3: PCM Pin Voltage Chart (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

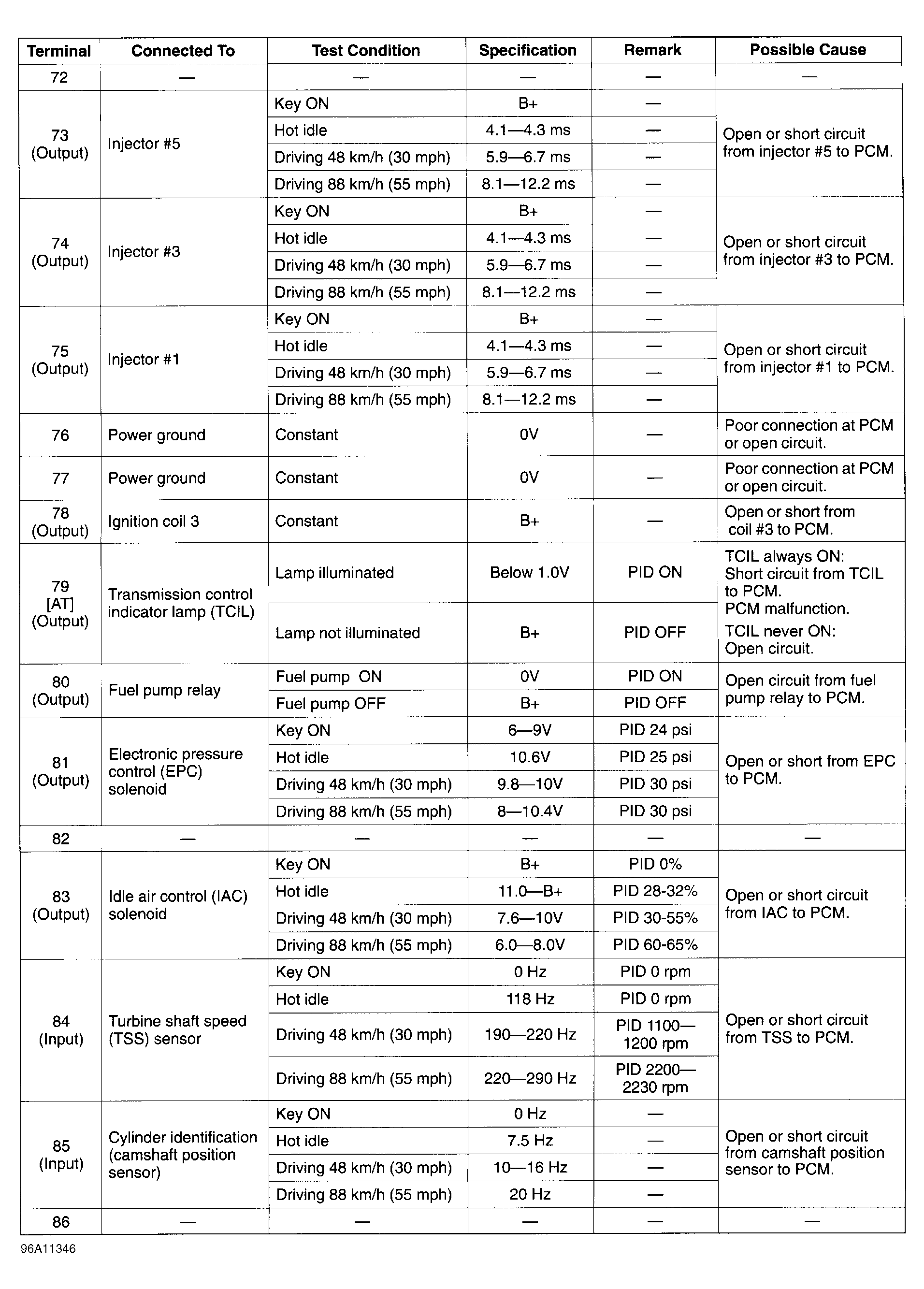

Fig 4: PCM Pin Voltage Chart (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

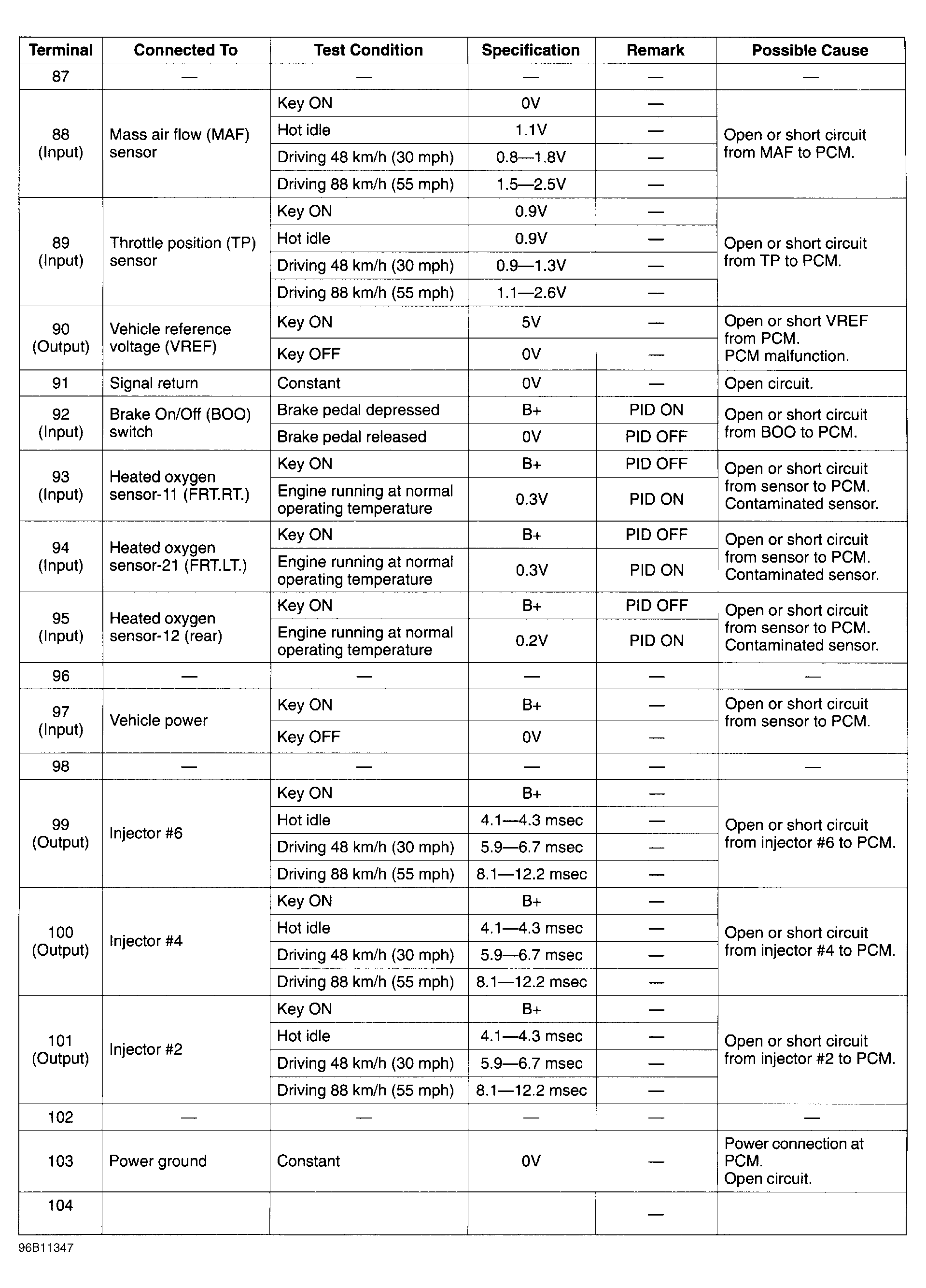

Fig 5: PCM Pin Voltage Chart (5 Of 5)
Courtesy of MAZDA MOTORS CORP.

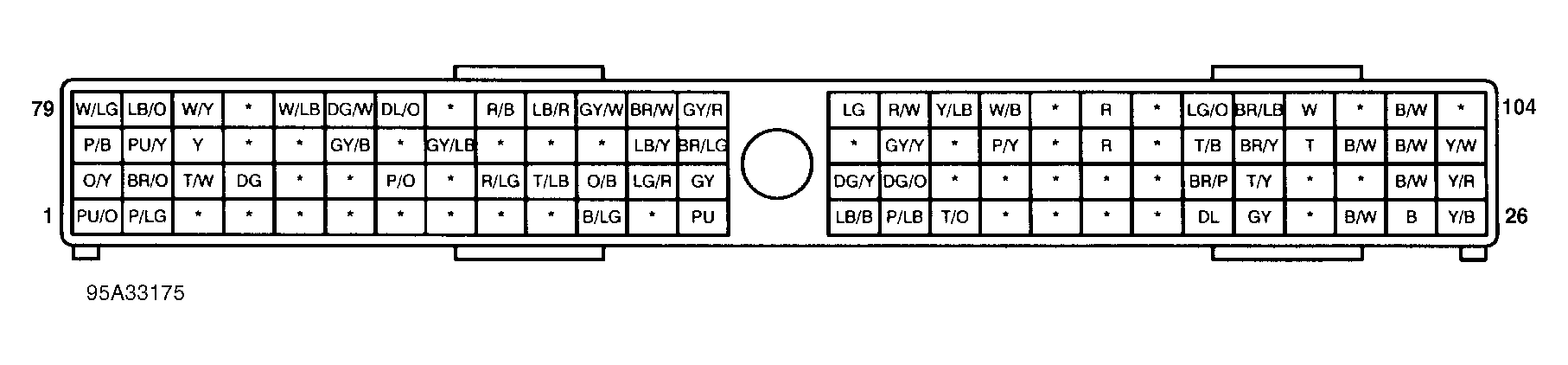

Fig 6: PCM Connector Terminal Identification
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
