DTC P1505: IAC System Circuit Malfunction

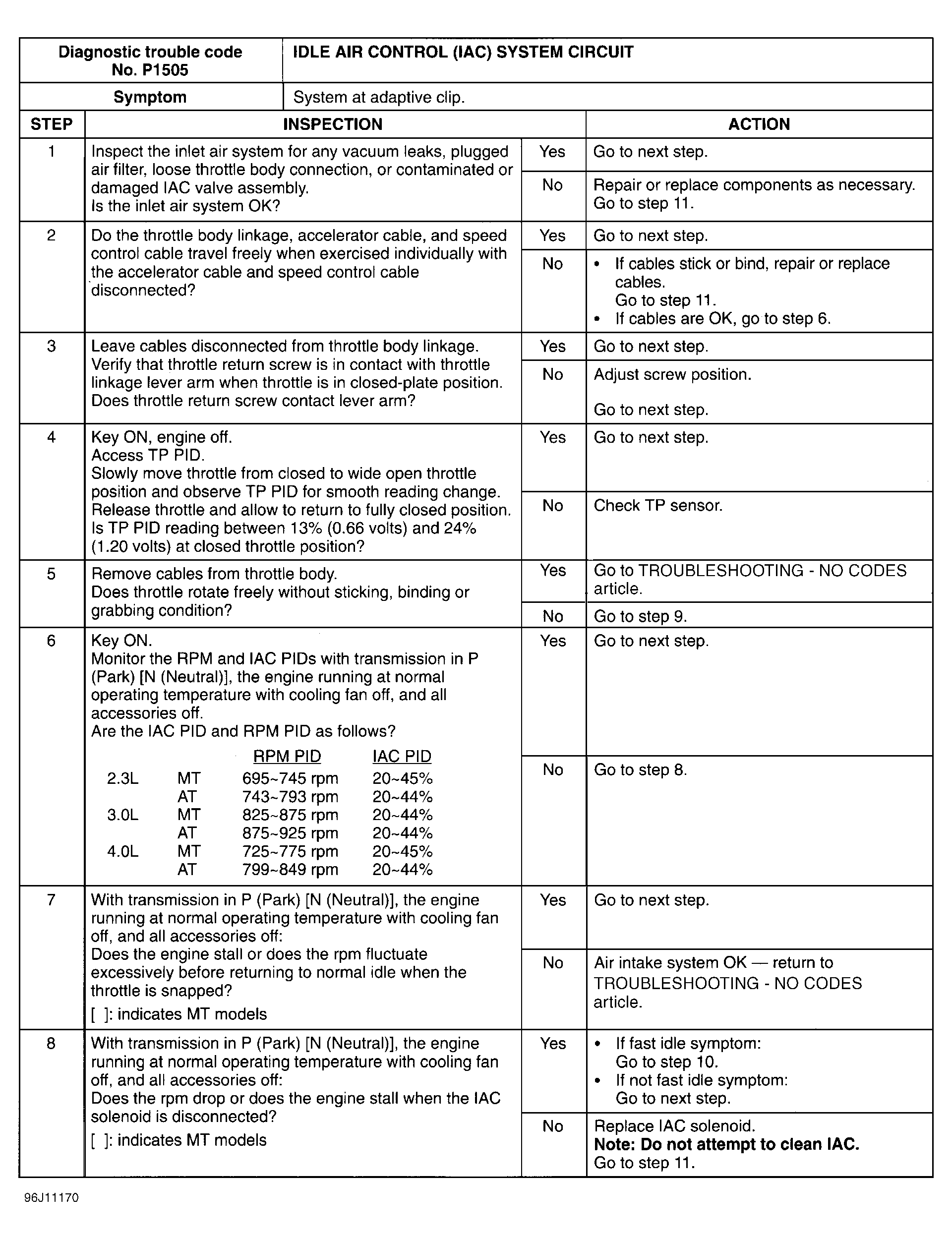

Fig 1: DTC P1505 IAC System CIRCUIT Malfunction (1 OF 2)
G96J11170

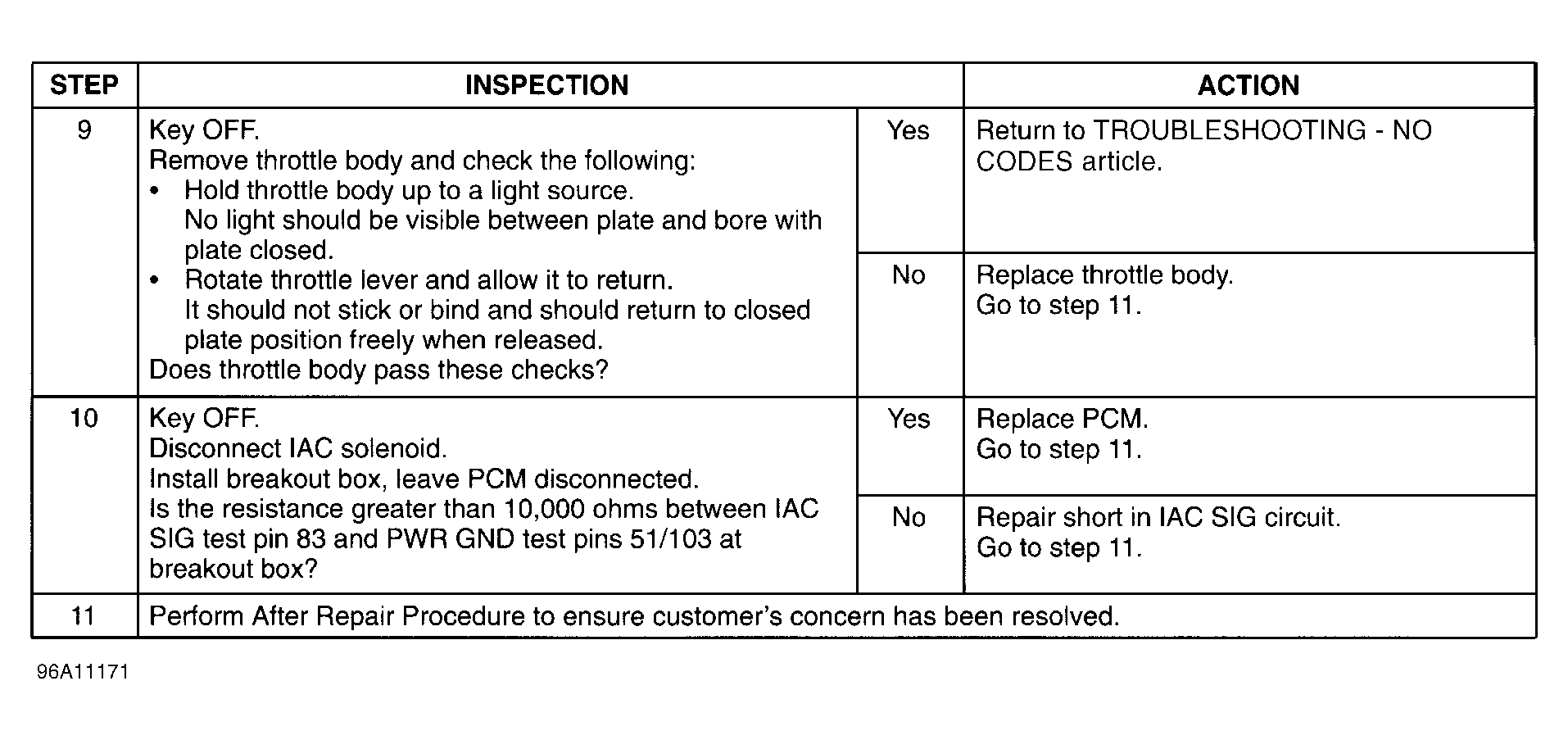

Fig 2: DTC P1505 IAC System CIRCUIT Malfunction (2 OF 2)
G96A11171
Fig 3: IAC Solenoid CIRCUIT Diagram
G95G34641
