DTC P1506: IAC System Circuit Malfunction

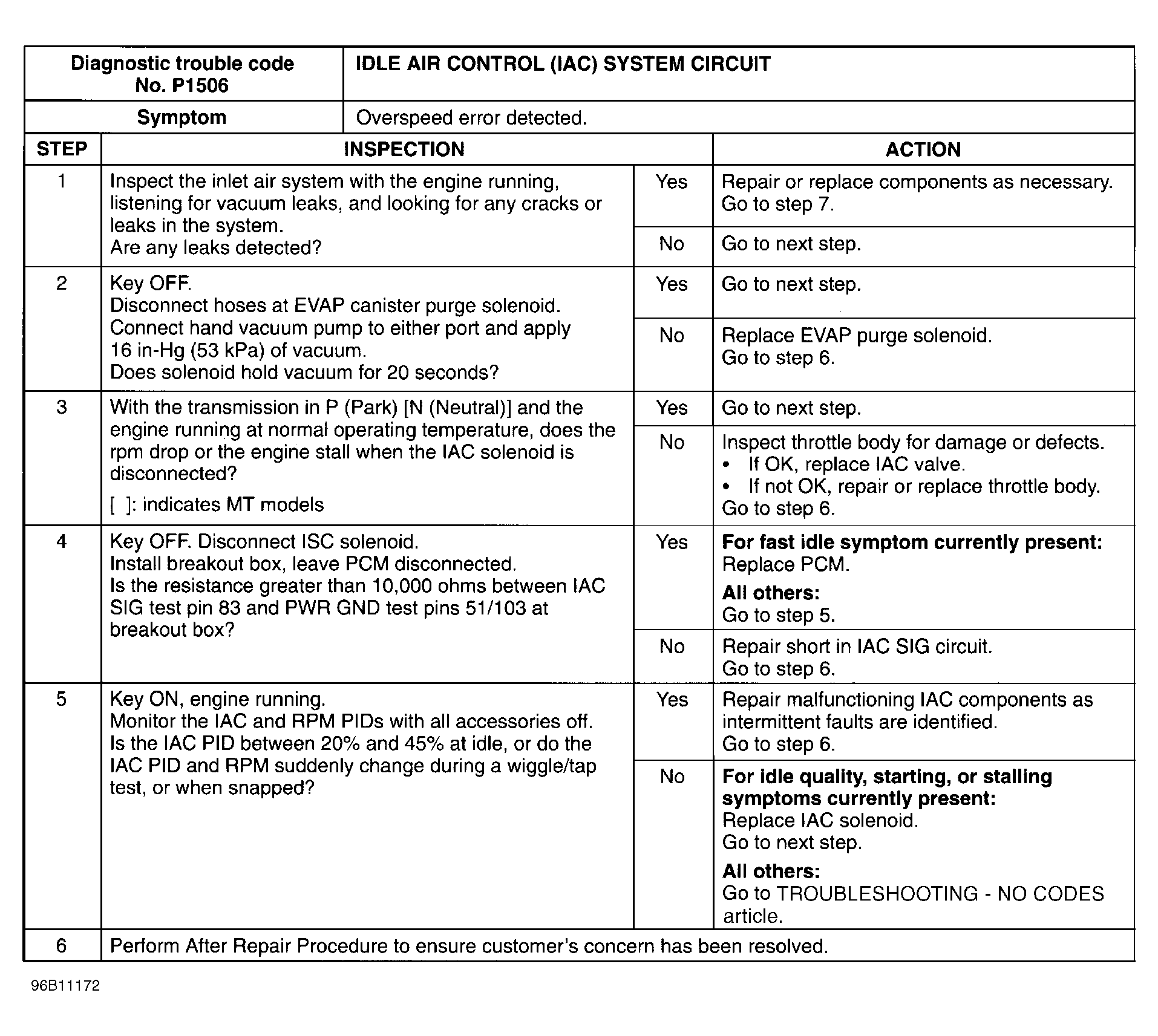

Fig 1: DTC P1506 IAC System CIRCUIT Malfunction
Fig 2: IAC Solenoid CIRCUIT Diagram
