Abs Control Module Test

Turn ignition off. Test ABS Control Module (ABS CM) using DVOM and Adapter Harness (49-L066-001) connected to ABS CM connector. Measure voltage between applicable terminal and terminal "A" (ground) of ABS CM connector. See Fig 1 . If voltage, continuity or resistance is not as specified, replace ABS CM. See Fig 2 and Fig 3 .

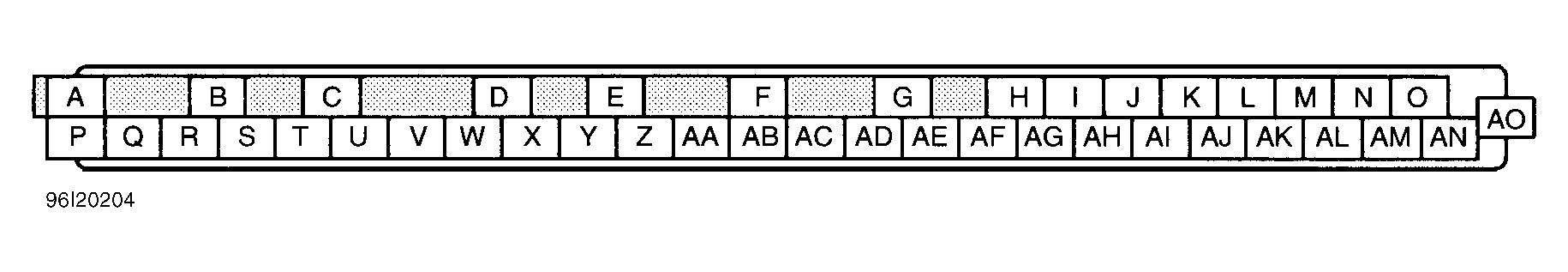

Fig 1: Identifying ABS Control Module Connector Terminals

Courtesy of MAZDA MOTORS CORP.

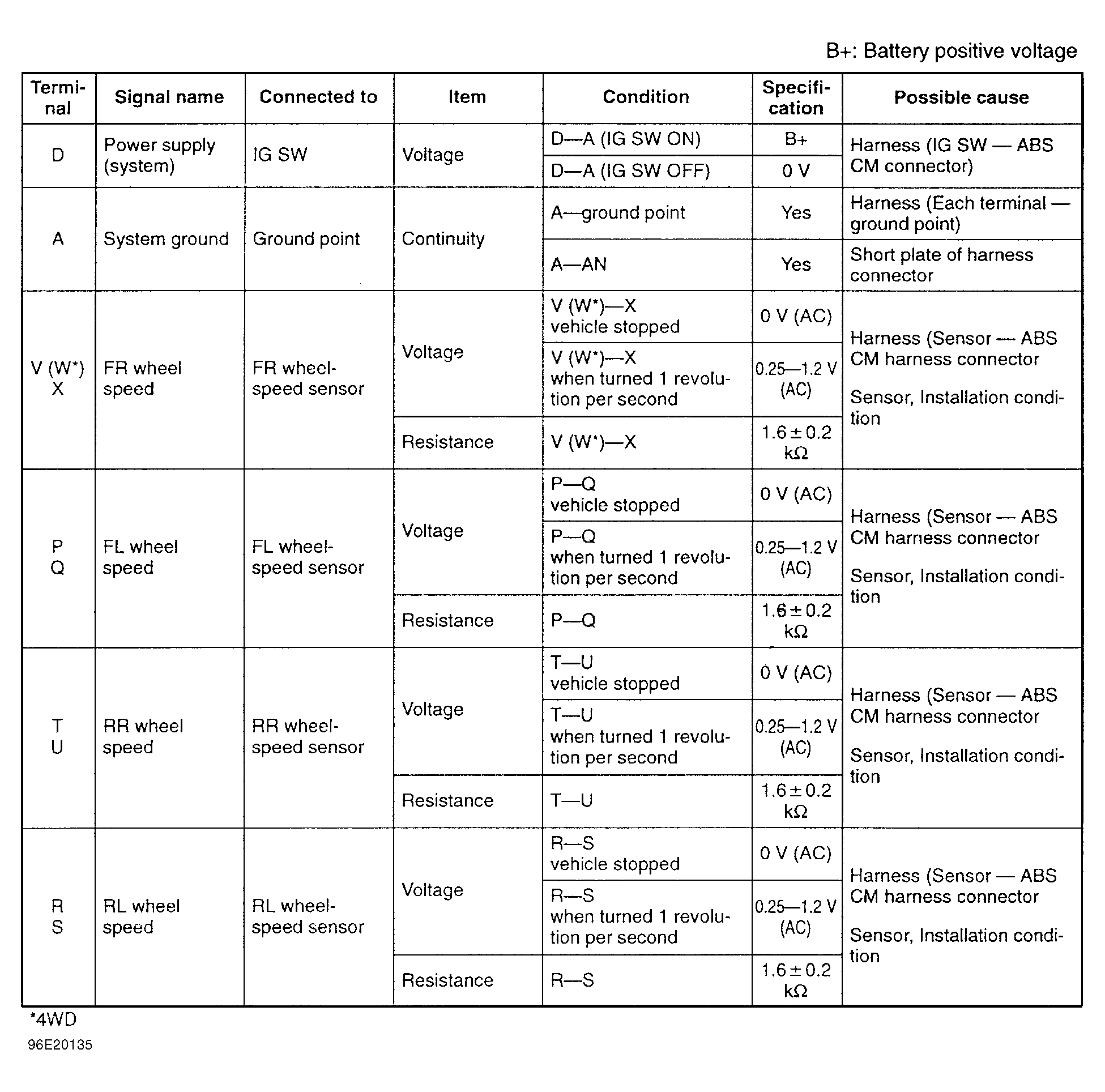

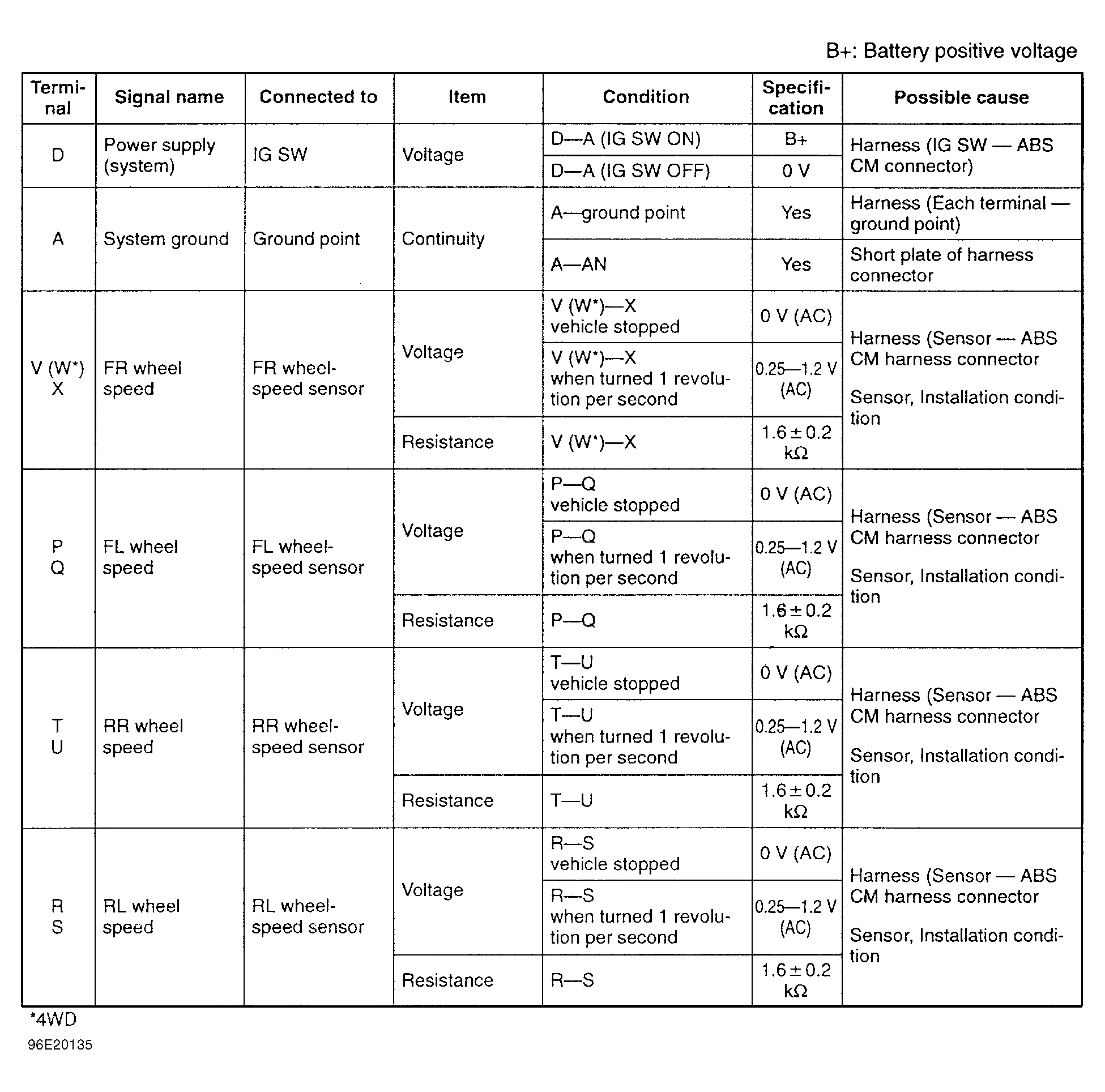

Fig 2: Testing ABS Control Module (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

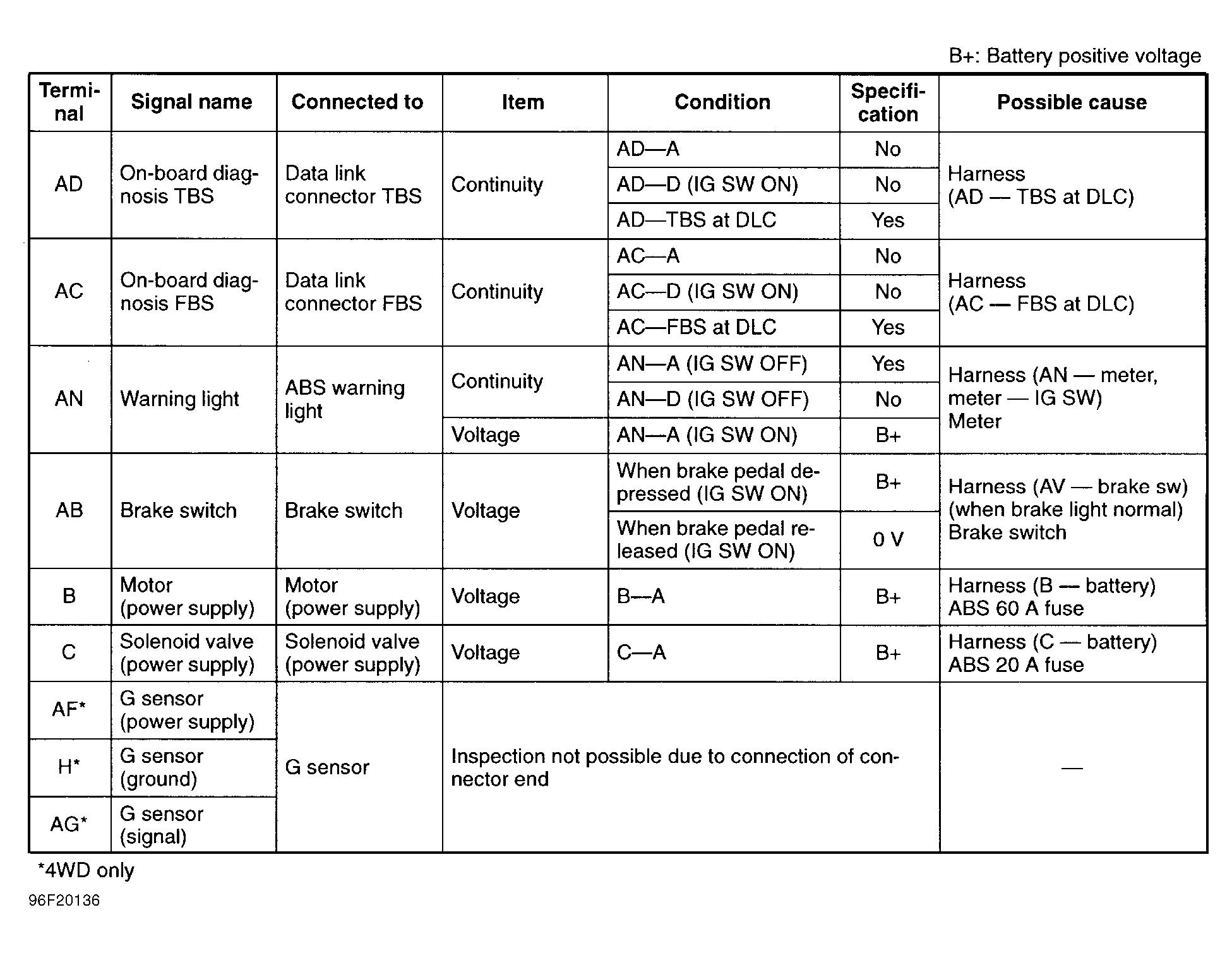

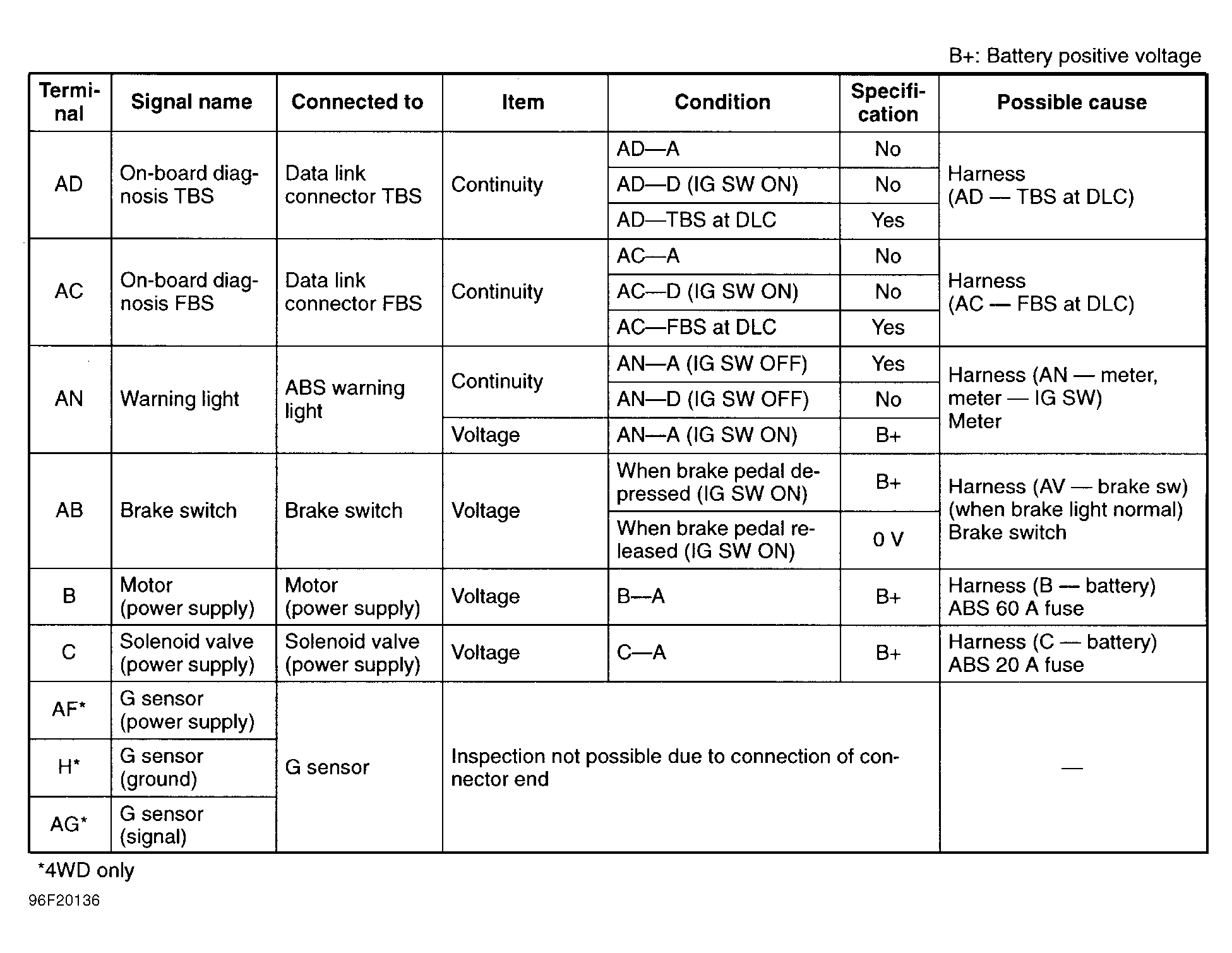

Fig 3: Testing ABS Control Module (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
