Abs Warning Light Test

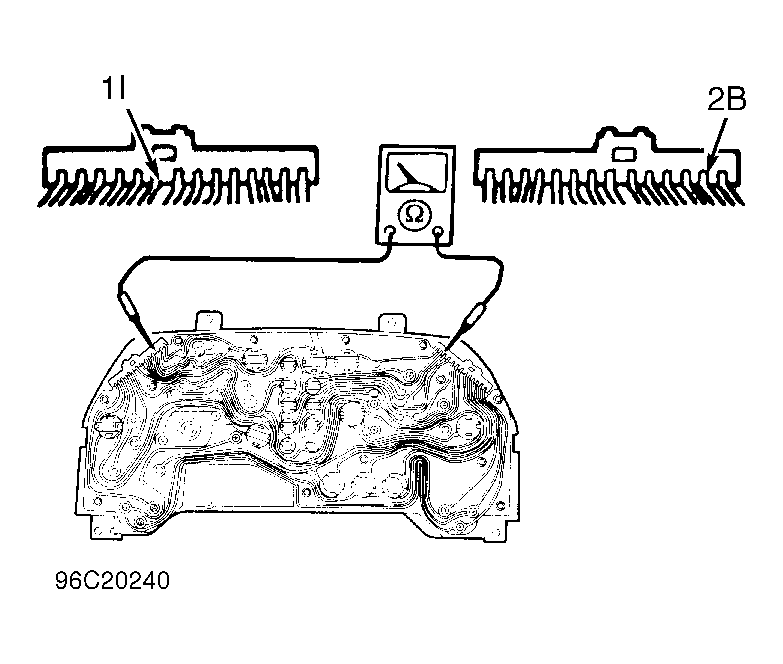

Remove instrument cluster. Remove and check ABS warning light bulb. Replace bulb as necessary. If bulb is okay, using ohmmeter, check continuity between terminals 1I and 2B of instrument cluster connector. See Fig 1 . If continuity exists, repair wiring harness between instrument cluster and ABS control module. If continuity does not exist, replace instrument cluster
